FPS250 Charging Kit, 8VI-ISO 4570, Gas Valve Version 4

$615.75

To maintain system performance, it is recommended that the gas precharge pressure in your accumulators be checked regularly. A loss in the gas precharge pressure will cause a drop in the hydraulic system performance and could cause damage to the accumulator bladder, diaphragm, or piston.

The FPS charging unit allows hydro-pneumatic accumulators to be charged with nitrogen. For this purpose, the charging kit is connected to a commercially available nitrogen bottle via a flexible charging hose (8 feet/2.44m).

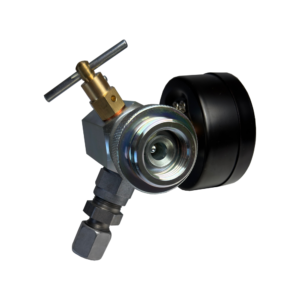

The units also allow maintenance personnel to check the current gas precharge pressure of an accumulator. The FPS kit includes a gauge, check valve in the charging connection, and a manual bleed valve with a T-handle.

Operating and installation instructions are included with each charging kit.

Specifications:

  • Pressure Range: 0-3500 PSI (0-250 bar)
  • Connection: 8VI-ISO 4570 (7/8-14 UNF)
  • Charging Hose Length: 8 ft (2.5 m)
  • Adapter: G4 (CGA 580)

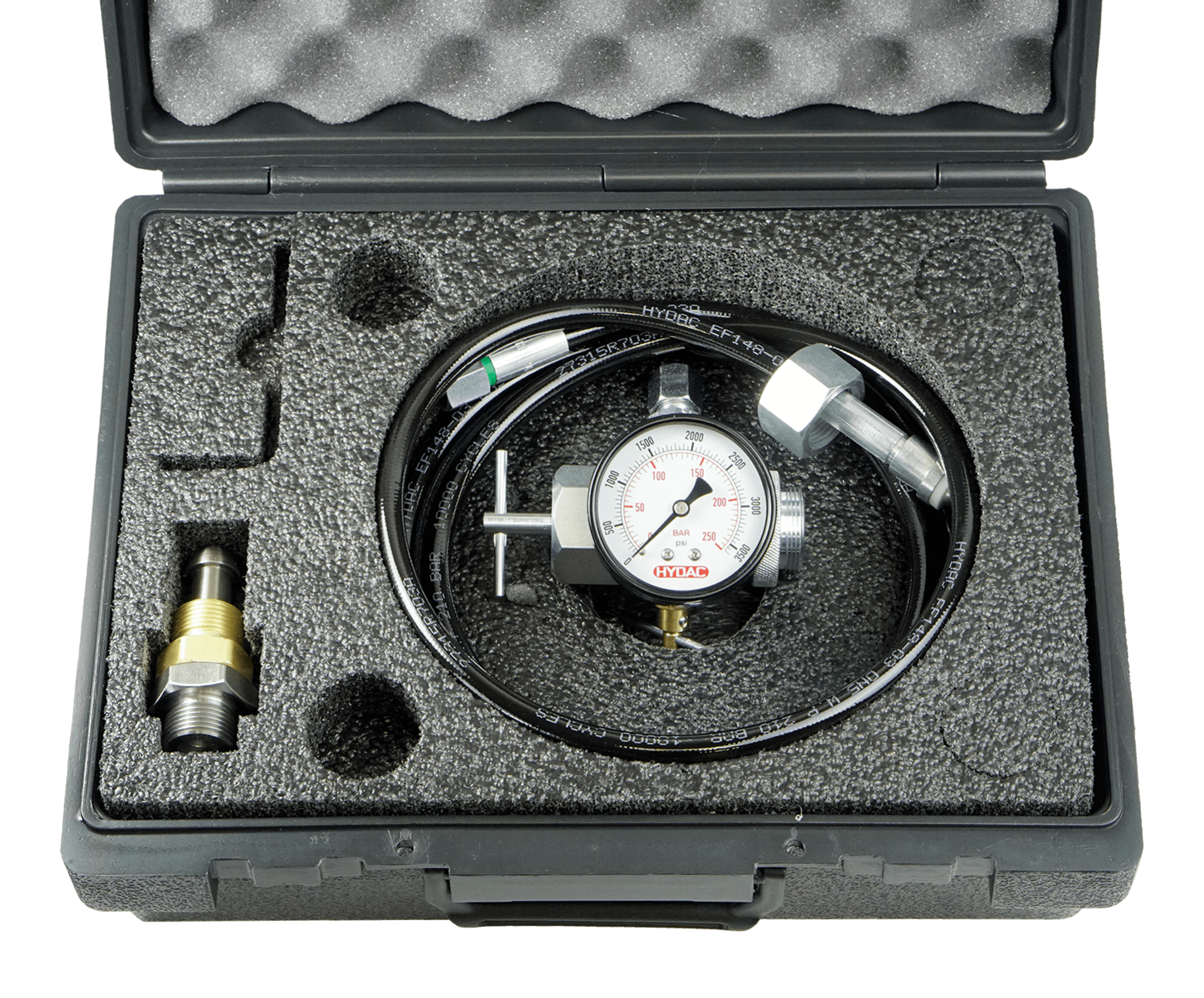

  • Comes in a plastic carry case with foam

Warning: To avoid injury use a Pressure Regulator on your nitrogen bottle when charging an accumulator with a charging kit.

SKU: HC-FPS250 Category:
Print Friendly, PDF & Email

Additional information

Weight 6 lbs
Dimensions 13.125 × 5 × 11 in

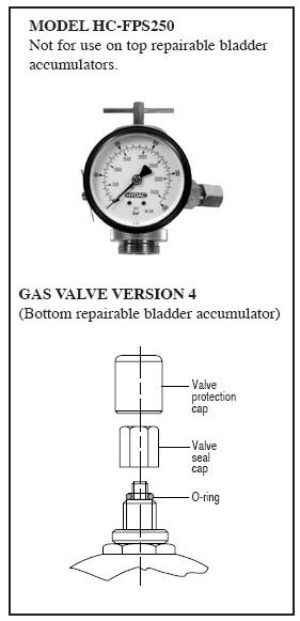

Gas Valve Version

4 (Bottom repairable bladder accumulator)

Pressure Range

N/A
