ORFS Male x ORFS Female Swivel Adapters with Gauge Port

$10.45$70.28

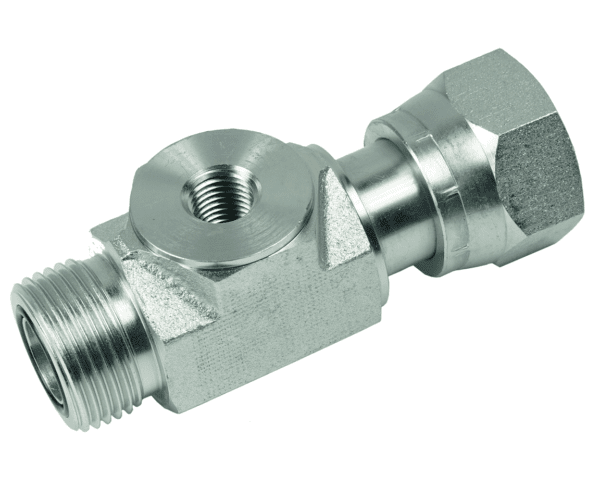

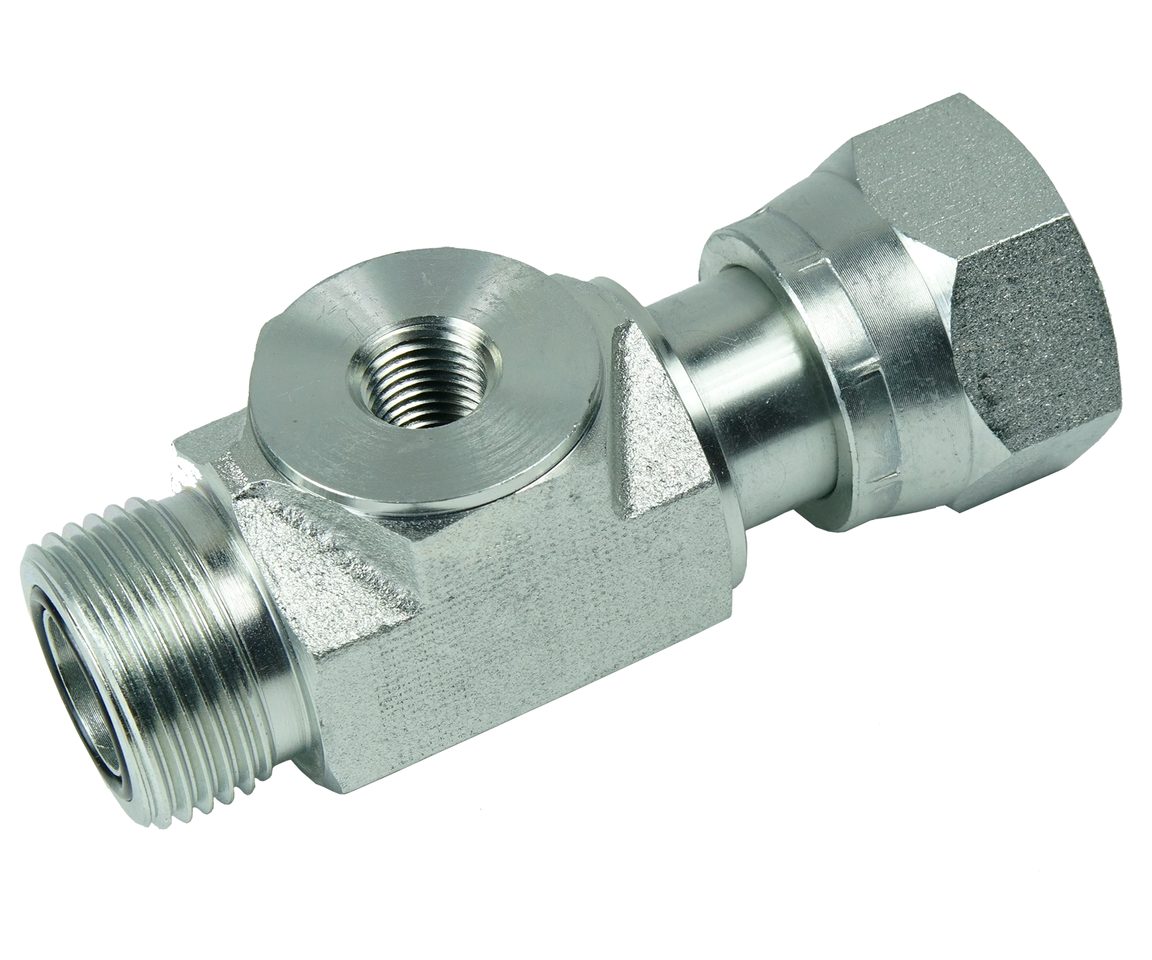

Male ORFS x female swivel ORFS gauge port adapter.

Gauge port adapters allow the user to install a pressure gauge, diagnostic nipple, or sensor inline in a hydraulic system. All units are made from zinc/nickel-plated carbon steel which offers reliability and a long life span. The fittings are rated up to 6000 PSI (414 Bar) depending on configuration and size.

Gauge port adapters offer the user unique advantages over conventional connectors:

  • No more drilling and tapping standard fittings
  • Safety – Connectors have the proper wall thickness to facilitate solid, safe connections
  • Easy to install
  • Aesthetic – Blends into your system without the bulk of multiple connectors.
  • Economical

Specifications:

  • Size: #4 (1/4″) to #20 (1-1/4″)
  • Gauge Ports: SAE or NPT
  • Pressure: Up to 6,000 PSI (414 bar)
  • 4:1 safety factor

Note: Fittings may differ from picture

Male JIC x female swivel JIC gauge port adapter.
Gauge port adapters allow the user to install a pressure gauge, diagnostic nipple, or sensor inline in a hydraulic system. All units are made from zinc/nickel-plated carbon steel which offers reliability and a long life span. The fittings are rated up to 6000 PSI (414 Bar) depending on configuration and size.
Gauge port adapters offer the user unique advantages over conventional connectors:
• No more drilling and tapping standard fittings
• Safety – Connectors have the proper wall thickness to facilitate solid, safe connections
• Easy to install
• Aesthetic – Blends into your system without the bulk of multiple connectors.
• Economical
