Male x Male JIC Gauge Port Adapter

JIC 37º Male x JIC 37º Male Adapters with Gauge Port

$9.73 – $25.00

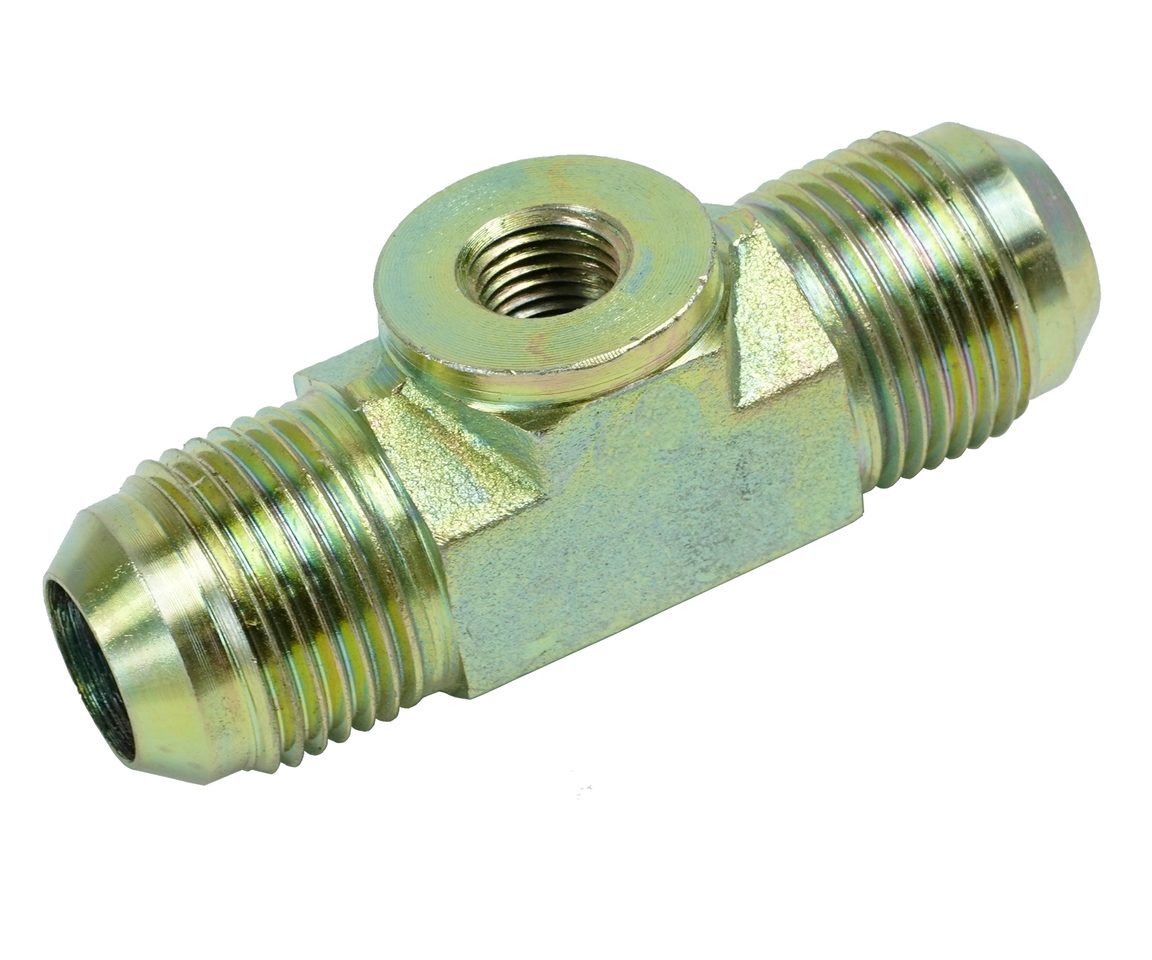

JIC male x JIC male gauge port adapter.

Gauge port adapters allow the user to install a pressure gauge, diagnostic nipple, or sensor inline in a hydraulic system. All units are made from zinc/nickel-plated carbon steel which offers reliability and a long life span. The fittings are rated up to 5000 PSI (345 Bar) depending on configuration and size.

Gauge port adapters offer the user unique advantages over conventional connectors:

  • No more drilling and tapping standard fittings
  • Safety – Connectors have the proper wall thickness to facilitate solid, safe connections
  • Easy to install
  • Aesthetic – Blends into your system without the bulk of multiple connectors.
  • Economical

Specifications:

  • Size: #6 (3/8″) to #12 (3/4″)
  • Gauge Ports: SAE or NPT
  • Pressure: 5,000 PSI (345 bar)
  • 4:1 safety factor

Note: Fittings may differ from picture
