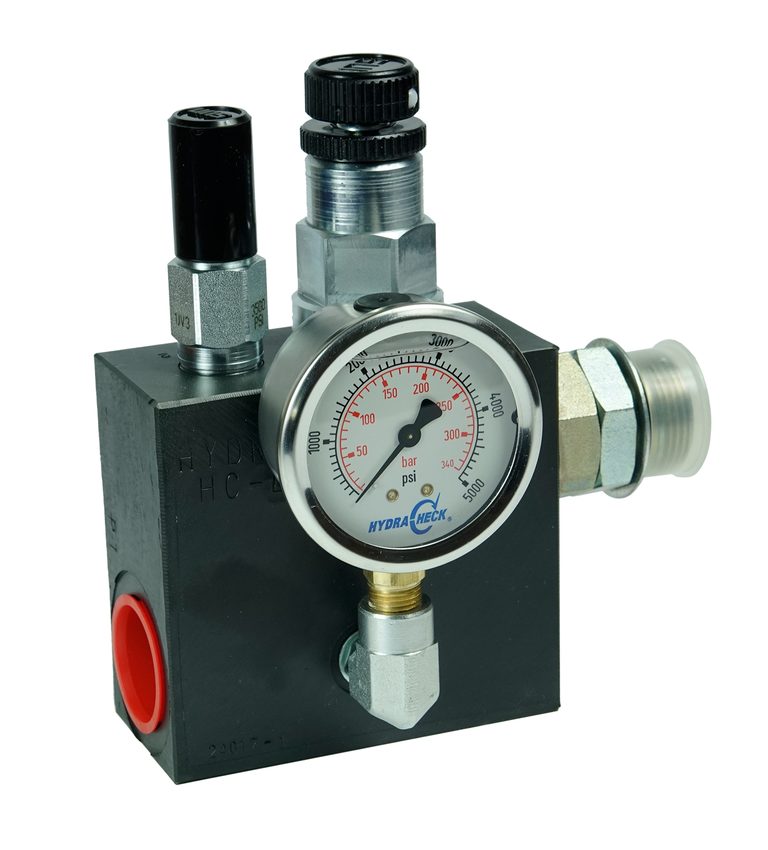

Integral Load-Cell, Safety Relief Valve (For Inline Flow Meters), #16 ORB, 5000 PSI

$897.00

The integral load-cell, safety relief valve assembly can be easily fitted to your existing flow meter.

This unit includes:

  • Ports: #16 SAE.
  • Adjustable load valve with reverse-flow capability.
  • Integral safety relief valve.
  • 5000 PSI (345 bar) glycerine-filled pressure gauge.
  • Comes with #16 SAE connector for flow meter connection.
SKU: HC-LTA5-RFR-16S Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 9.4 lbs
Dimensions 6.5 × 3.5 × 7.5 in
Type

Load Cell Assembly – 5000 PSI (345 bar) (Without flow meter)

Pressure

5000 PSI
(345 Bar)

For Flow Meters Up To

50 GPM
(189 LPM)

Port Thread

#16 ORB (SAE)
