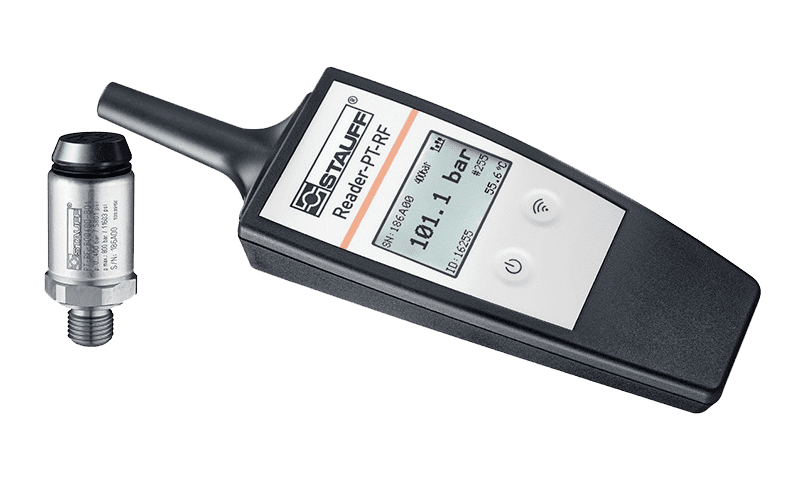

Stauff Reader and Pressure Transmitter

$134.29$602.15

The hand-held readers transfer the energy required for a measurement to the pressure transmitter using RFID technology. All that is required is a maximum distance of 1.5 cm / 0.6 in from the antenna to the tip of the pressure transmitter for the duration of the measurement.

When the pressure transmitter is activated by the press of a button, a current measured value is determined within only 0.5 seconds and then immediately transmitted back to the reading device together with other relevant information and then shown on the illuminated display and stored. Over 15,000 of these measurement sets can be stored in the internal memory of the device.

Reader Specifications:

  • Pressure: in PSI and bar
  • Temperature: in °F and °C
  • Display: graphic, LED-backlit
  • Visible Area: 55 x 46 mm / 2.17 x 1.81 in
  • Resolution: 128 x 64 Pixel
  • Ambient Temperature: -4°F to +158°F (-20°C to +70°C)
  • Storage Temperature: -13°F to +140°F (-25°C to +60°C)
  • CE certified
  • Sampling Rate: typ. 250 ms / max. 400 ms
  • Interface: Micro USB
  • EMV: EN 61326-1:2013; EN 300330
  • Power Supply: Battery – Lithium Ion (3,7 V DC / 900 mAh)
  • Operating Time: approx. 6h (approx. 1800 individual measurement)
  • Material: Housing made of ABS
  • Protection Rating: IP65 – Dust tight and protected against water jets

Transmitter Specifications:

  • Suitable for liquid and gaseous media
  • Housing: Stainless Steel 1.4305
  • Sealing: FKM (Viton®)
  • Cap: Polyamide (glass fiber-reinforced)
  • Media Temperature: -40°F to +275°F (-40°C to +135°C)
  • Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
  • Storage Temperature: -67°F to +257°F  (-55°C to +125°C)
  • Sampling Rate: typ. 250 ms / max. 400 ms
  • Long-term Stability: according to IEC EN 60770-1; max. ± 0,25 % FS* /a
  • Vibration Loading: acc. to IEC 60068-2-6 (20 g)
  • Shock Loading: acc. to IEC 60068-2-27 (30 g) 11ms
  • Protection Rating: IP69 – Dust tight and protected against high-pressure and steam cleaning

PC Software:

The software included with the delivery allows transmission of the stored measured values from the reading device to the PC, subsequent evaluation and export, e.g. to Microsoft Excel®.
