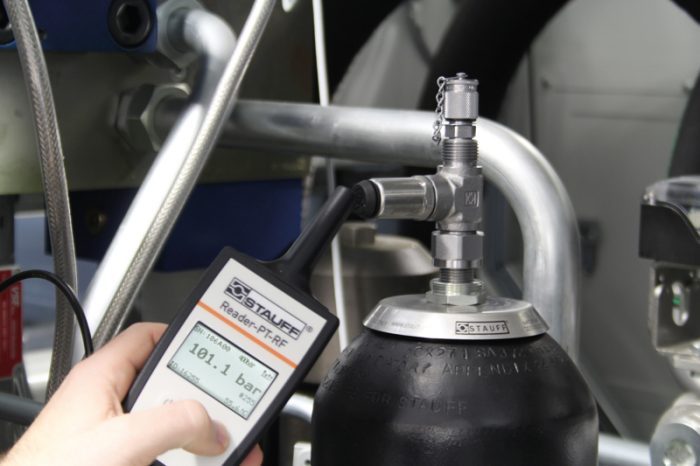

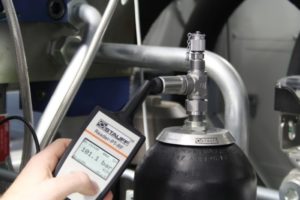

When the pressure transmitter is activated by the press of a button, a current measured value is determined within only 0.5 seconds and then immediately transmitted back to the reading device together with other relevant information and then shown on the illuminated display and stored. Over 15,000 of these measurement sets can be stored in the internal memory of the device.
The energy required for a measurement is transferred to the pressure transmitter via the antenna of the reading device using wireless RFID technology. This means that the pressure transmitters require neither internal nor external power supply and are completely maintenance-free.

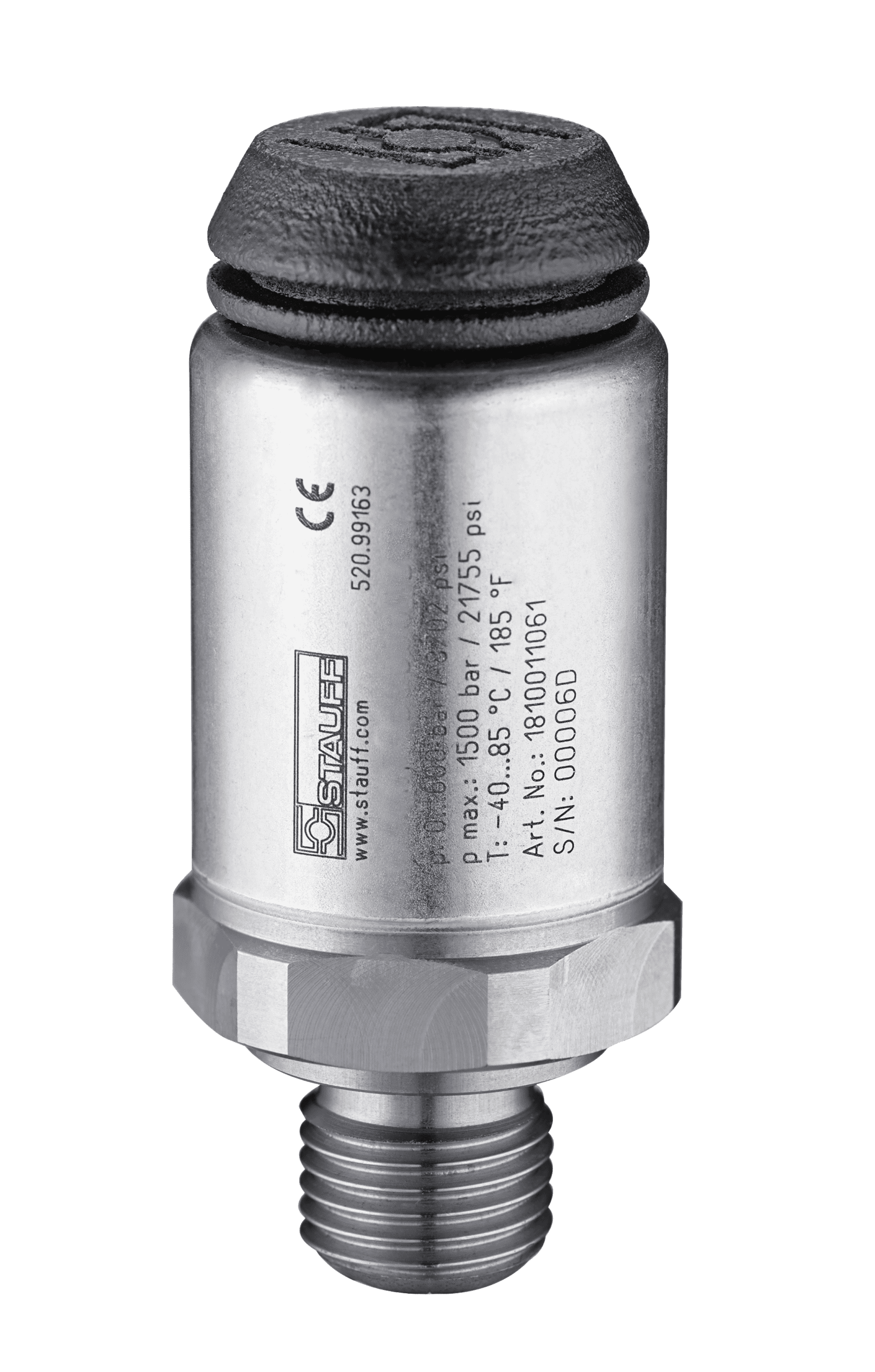

Pressure Range: 0-870 PSI (0-60 bar)
Accuracy: typ. ± 0.25% FS; max. ± 0.5% FS
Suitable for liquid and gaseous media
Housing: Stainless Steel 1.4305
Sealing: FKM (Viton®)
Cap: Polyamide (glass fiber-reinforced)
Media Temperature: -40°F to +275°F (-40°C to +135°C)
Ambient Temperature: -40°F to +185°F (-40°C to +85°C)
Storage Temperature: -67°F to +257°F (-55°C to +125°C)
Sampling Rate: typ. 250 ms / max. 400 ms
Long-term Stability: according to IEC EN 60770-1; max. ± 0.25 % FS*
Vibration Loading: acc. to IEC 60068-2-6 (20 g)
Shock Loading: acc. to IEC 60068-2-27 (30 g) 11ms
Protection Rating: IP69 – Dust tight and protected against high-pressure and steam cleaning
