Additional information
| Weight | 6.8 lbs |
|---|---|
| Dimensions | 9.5 × 9.5 × 9.5 in |
| Max Inlet Pressure | 7500 psig |
| Delivery Pressure Range | 0-3000 psig |
| Delivery Pressure Gauge | 4000 psig |
| Supply Pressure Gauge | 10000 psig |

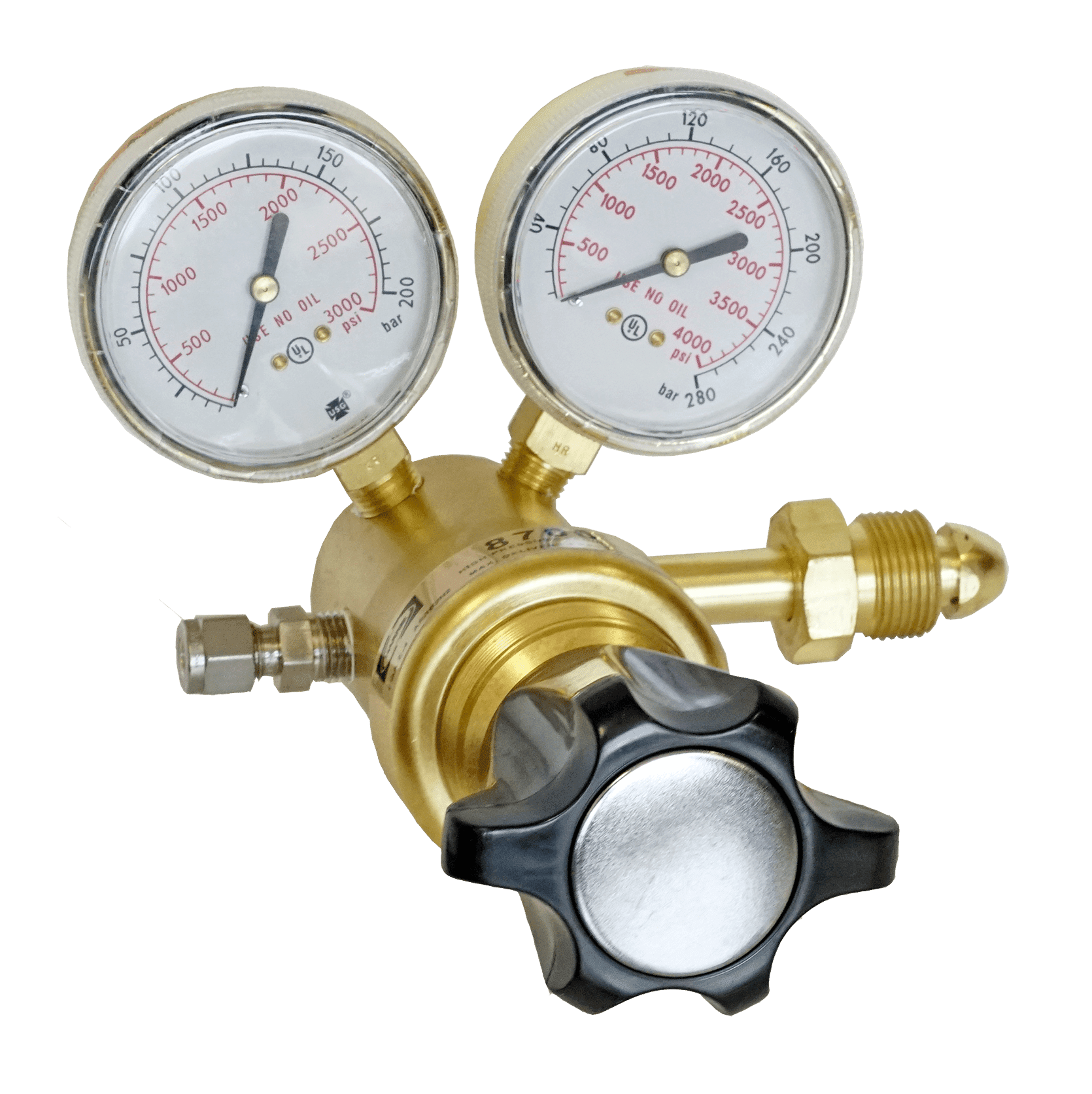

Ultra High Delivery Pressure Regulator, 3000 PSI Delivery Pressure
$874.72
The Model GP 8700 is a single-stage, high-pressure regulator that is designed to operate on high-pressure cylinders up to 7500 PSIG.
Features:
- 0-3000 PSIG delivery pressure
- One-piece encapsulated valve design with PCTFE seats and an internal filter
- Ergonomic knob for improved grip
- 1/4” NPT outlet with stainless steel 1/4” tube fitting
- 2 1/2” dual scale gauges (psi/bar)
- Conforms to CGA E-4 standard for gas pressure regulators
- Made in the USA
*Models with the following CGA inlet connections are self-venting – 580, 677
Technical:
- Max Inlet Pressure: 7500 PSIG
- Delivery Pressure Range: 0-3000 PSIG
- Delivery Pressure Gauge: 4000 PSIG
- Supply Pressure Gauge: 10,000 PSIG
- Capacity: High Pressure/Low Volume
- Stage: Single
- Gauges: 2.5″ Brass
- Gas: Nitrogen, Argon, Helium
- Inlet: CGA 677
- Outlet: 1/4″ SS Tube Fitting
- Certifications: UL; CGA E-4
