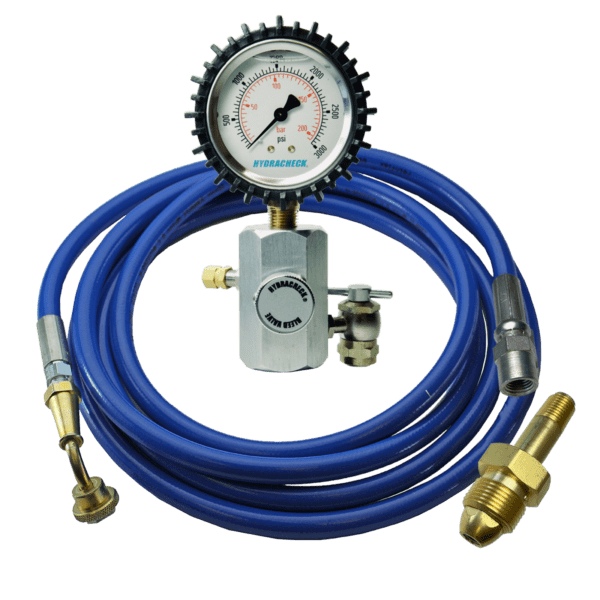

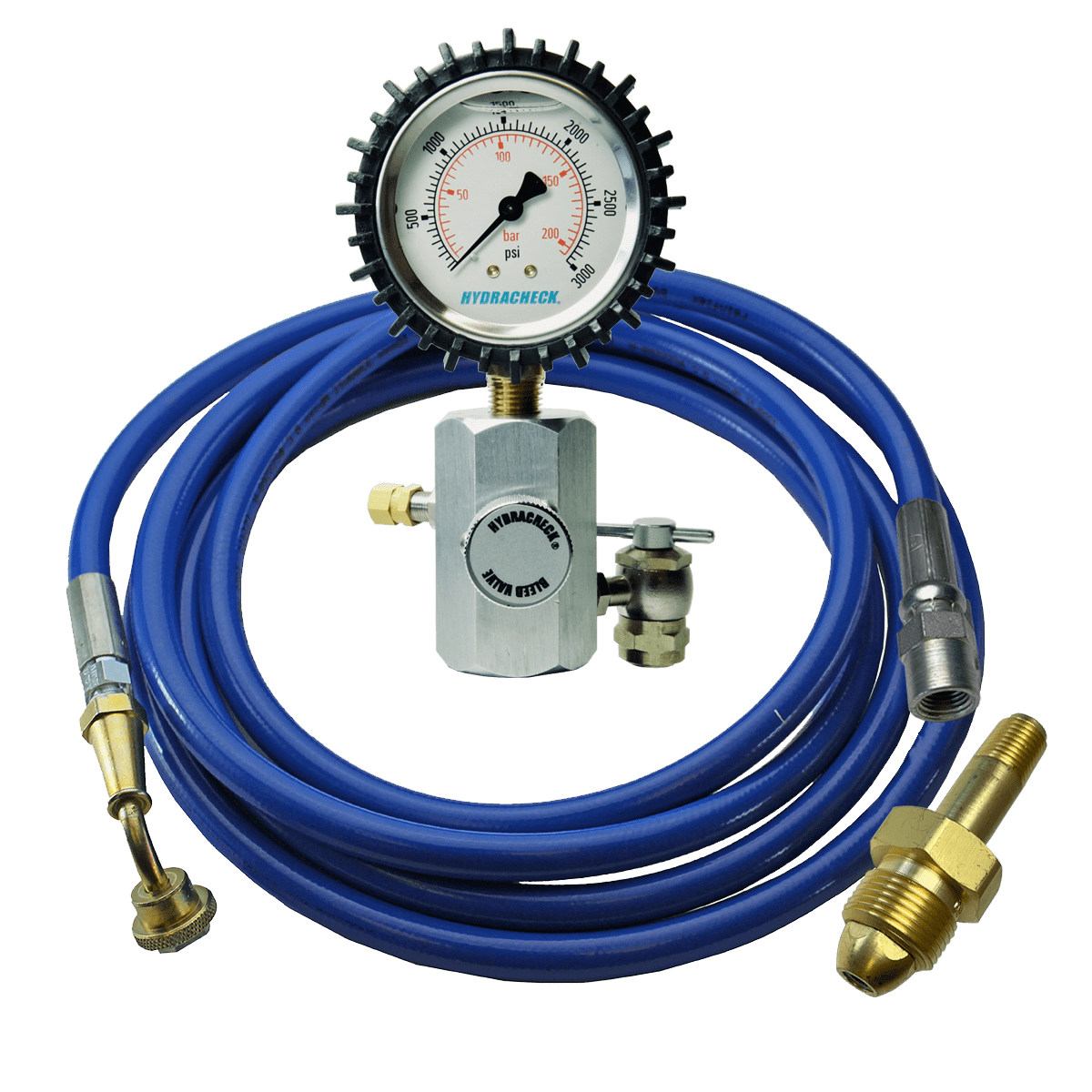

Accumulator Nitrogen Charging Assembly


The HydraCheck accumulator nitrogen charging assembly is used for charging accumulators with a Schrader-style (Vg8, .305-32) valve connection.

This 3000 PSI (207 bar) accumulator nitrogen pre-charge test consists of:

Gauge Assembly

  • Drain cock
  • Tank valve
  • 3000 PSI (207 bar) pressure gauge with rubber boot
  • Gauge block
  • Gas cock (Schrader valve style connection to accumulator [Vg8, .305-32])

Charging Hose Assembly

  • Connector, Male, RH thread (standard)
  • Tailpiece, Male (standard)
  • 8 feet (2.4m) hose
  • Gas chuck.

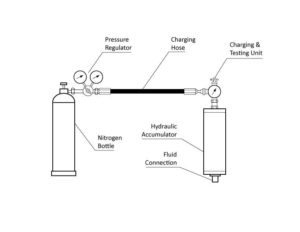

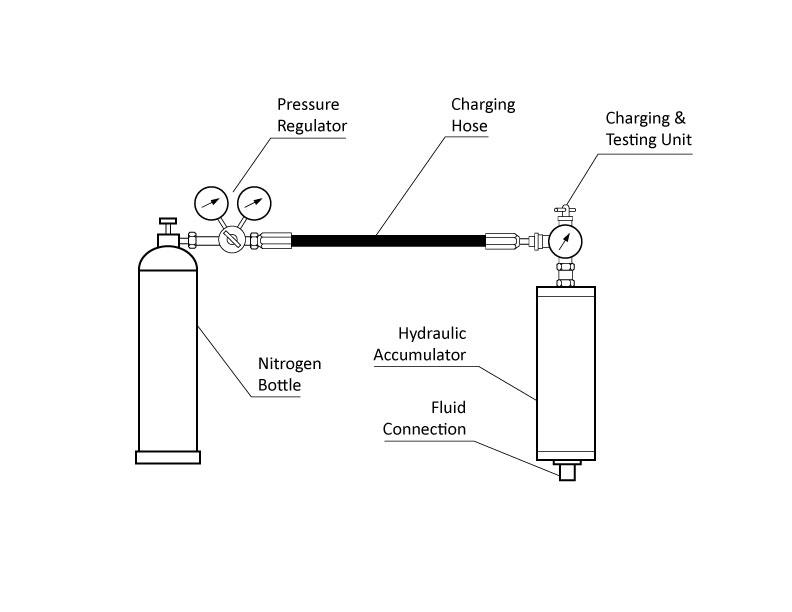

Warning: To avoid injury use a Pressure Regulator on your nitrogen bottle when charging an accumulator with a charging kit.

SKU: HC-GG2527F Category:
Print Friendly, PDF & Email

Additional information

Weight 2.7 lbs
Dimensions 9 × 5 × 9 in
Pressure Gauge

3000 PSI
207 Bar

Hose Length

8 ft. (2.4m)
