FPK250 Charging Kit, M28x1.5, Gas Valve Version 1


To maintain system performance, it is recommended that the gas precharge pressure in your accumulators be checked regularly. A loss in the gas precharge pressure will cause a drop in the system efficiency and could cause damage to the accumulator bladder, diaphragm, or piston.

These charging and gauging units allow hydro-pneumatic accumulators to be charged with dry nitrogen. For this purpose, a charging and gauging unit is connected to a commercially available nitrogen bottle via a flexible charging hose (8 feet/2.44m).

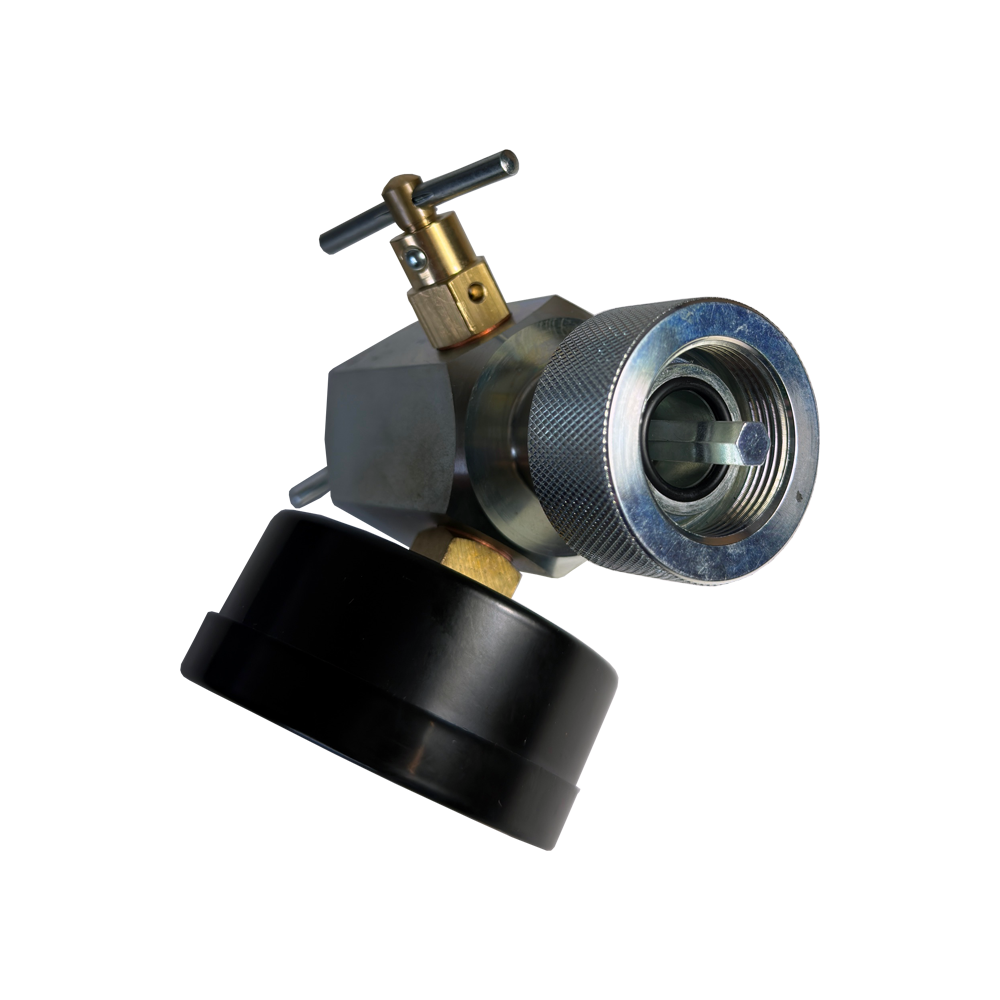

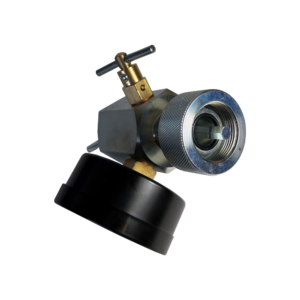

These units allow maintenance personnel to check the current gas precharge pressure of an accumulator and also incorporate a gauge and check valve in the charging connection, and a manual bleed valve with a T-handle. Operating and installation instructions are included with each charging kit.

The FPK250 kit also has adaptors (sold separately) for different connections.


  • Pressure Range: 0-3500 PSI (0-250 bar)
  • Connection: M28x1.5
  • Charging Hose Length: 8 ft (2.5 m)
  • Adapter: G4 (CGA 580)

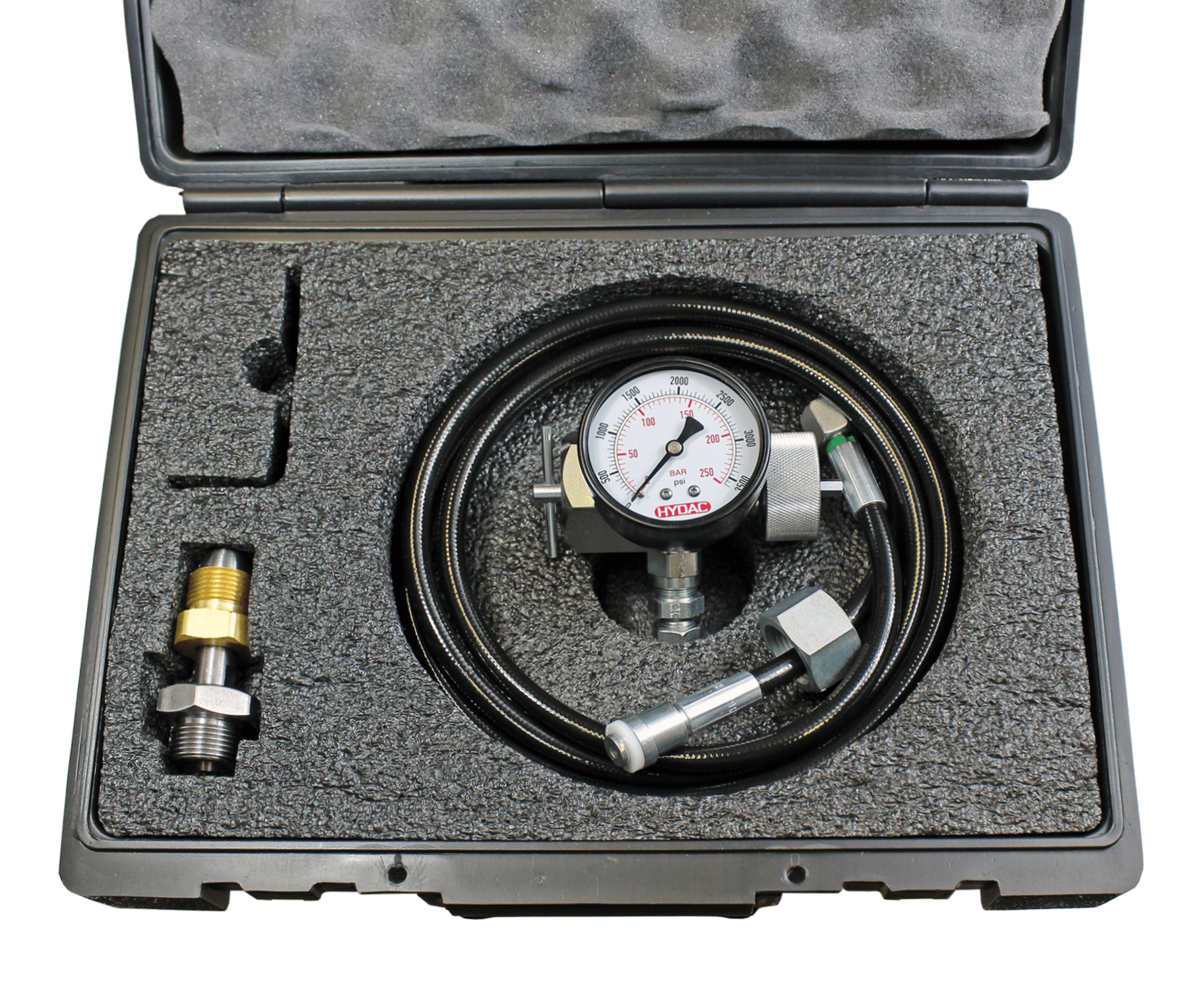

  • Comes in a plastic carry case with foam

Warning: To avoid injury use a Pressure Regulator on your nitrogen bottle when charging an accumulator with a charging kit.

SKU: HC-FPK250 Category:
Print Friendly, PDF & Email

Additional information

Weight 6.4 lbs
Dimensions 13.125 × 5 × 11 in

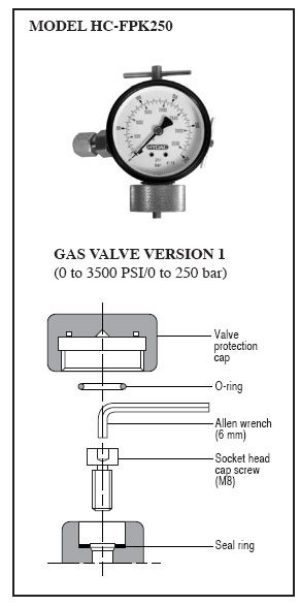

Gas Valve Version


Pressure Range

0 to 3500 PSI
0 to 250 Bar
