Ultra High Delivery Pressure Regulator, 1500 PSI Delivery Pressure

$583.75

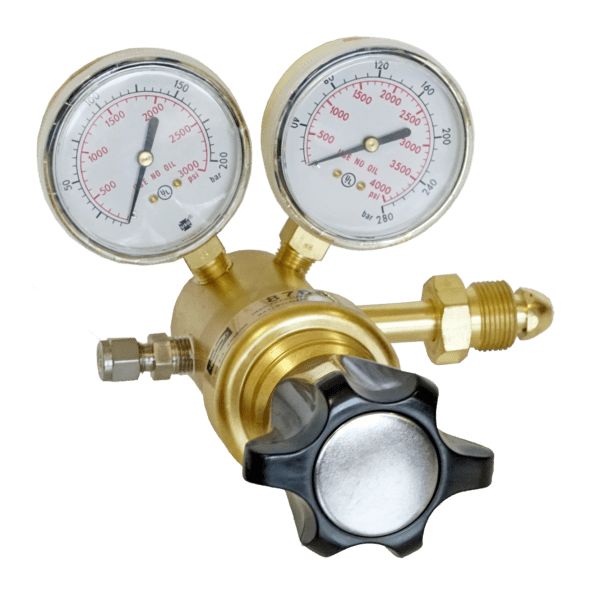

The Model GP 8700 is a single-stage, high-pressure regulator that is designed to operate on high-pressure cylinders up to 7500 PSIG.

Features:

  • 0-1500 PSIG delivery pressure
  • One-piece encapsulated valve design with PCTFE seats and an internal filter
  • Ergonomic knob for improved grip
  • 1/4” NPT outlet with stainless steel 1/4” tube fitting
  • 2 1/2” dual scale gauges (psi/bar)
  • Conforms to CGA E-4 standard for gas pressure regulators
  • Made in the USA

*Models with the following CGA inlet connections are self-venting – 580, 677

Technical:

  • Max Inlet Pressure: 3000 PSIG
  • Delivery Pressure Range: 0-1500 PSIG
  • Delivery Pressure Gauge: 3000 PSIG
  • Supply Pressure Gauge: 4000 PSIG
  • Capacity: High Pressure/Low Volume
  • Stage: Single
  • Gauges: 2.5″ Brass
  • Gas: Nitrogen, Argon, Helium
  • Inlet: CGA 580
  • Outlet: 1/4″ SS Tube Fitting
  • Certifications: UL; CGA E-4
SKU: HC-PR-8700-1500-580 Category:
Print Friendly, PDF & Email

Additional information

Weight 6.8 lbs
Dimensions 9.5 × 9.5 × 9.5 in
Max Inlet Pressure

3000 psig

Delivery Pressure Range

0-1500 psig

Delivery Pressure Gauge

3000 psig

Supply Pressure Gauge

4000 psig
