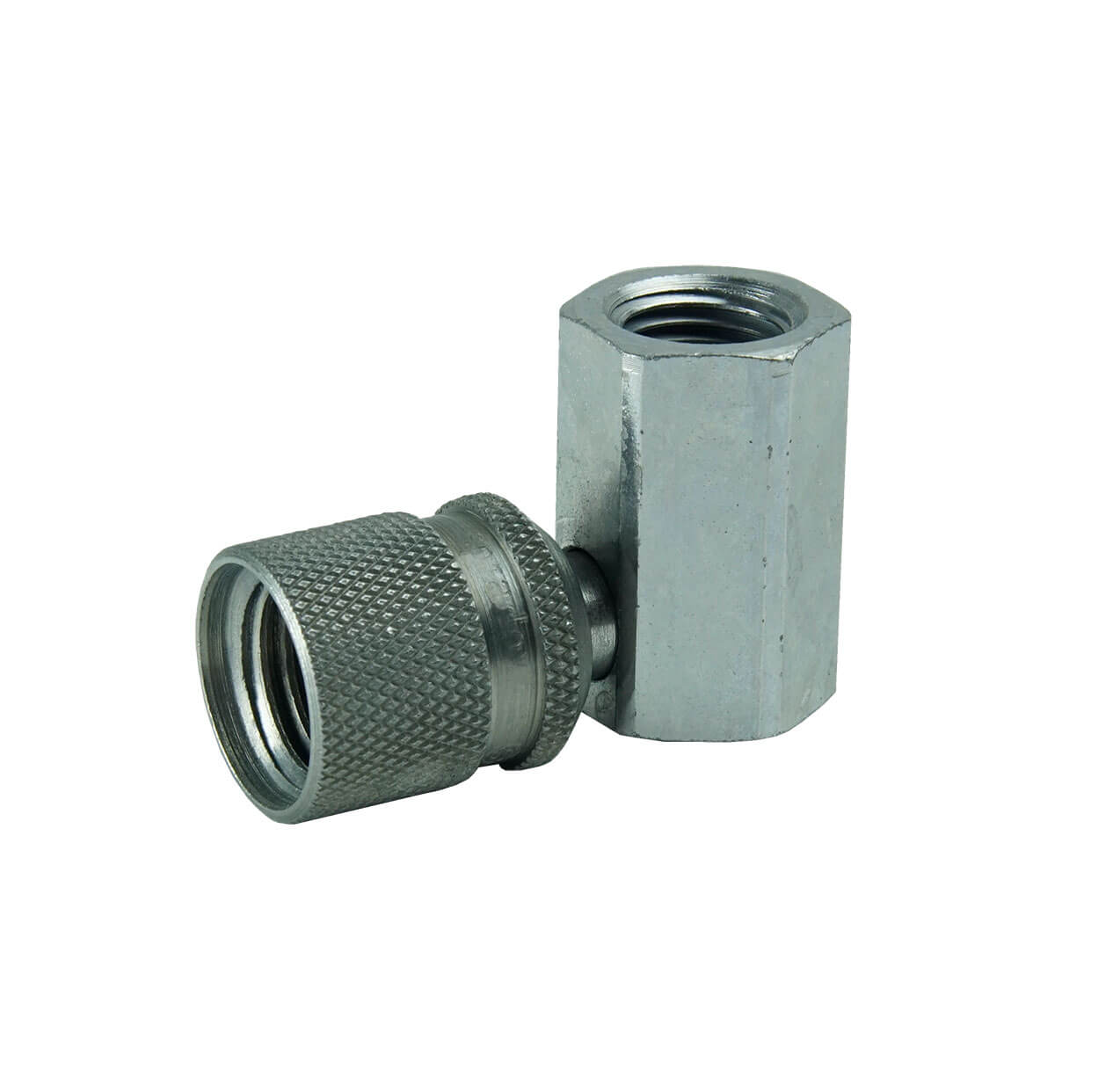

90° Direct Gauge Adaptor, 1/4″ NPT

$34.05

The direct gauge adapter is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adapter is a M16x2 connection.

Use in conjunction with the M16x2 test connector (Test Point).

Specifications:

  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral based fluids
SKU: HC-DGA90-1/4NPT Category:
Print Friendly, PDF & Email

Additional information

Weight .2 lbs
Dimensions 1.75 × 1.25 × 0.625 in
Size

1/4" NPT

Dash Number

-4

Nominal Size

04
