Additional information
| Weight | .2 lbs |
|---|---|
| Dimensions | 1.75 × 1.25 × 0.625 in |
| Size | G1/4 |
| Dash Number | -4 |
| Nominal Size | 04 |

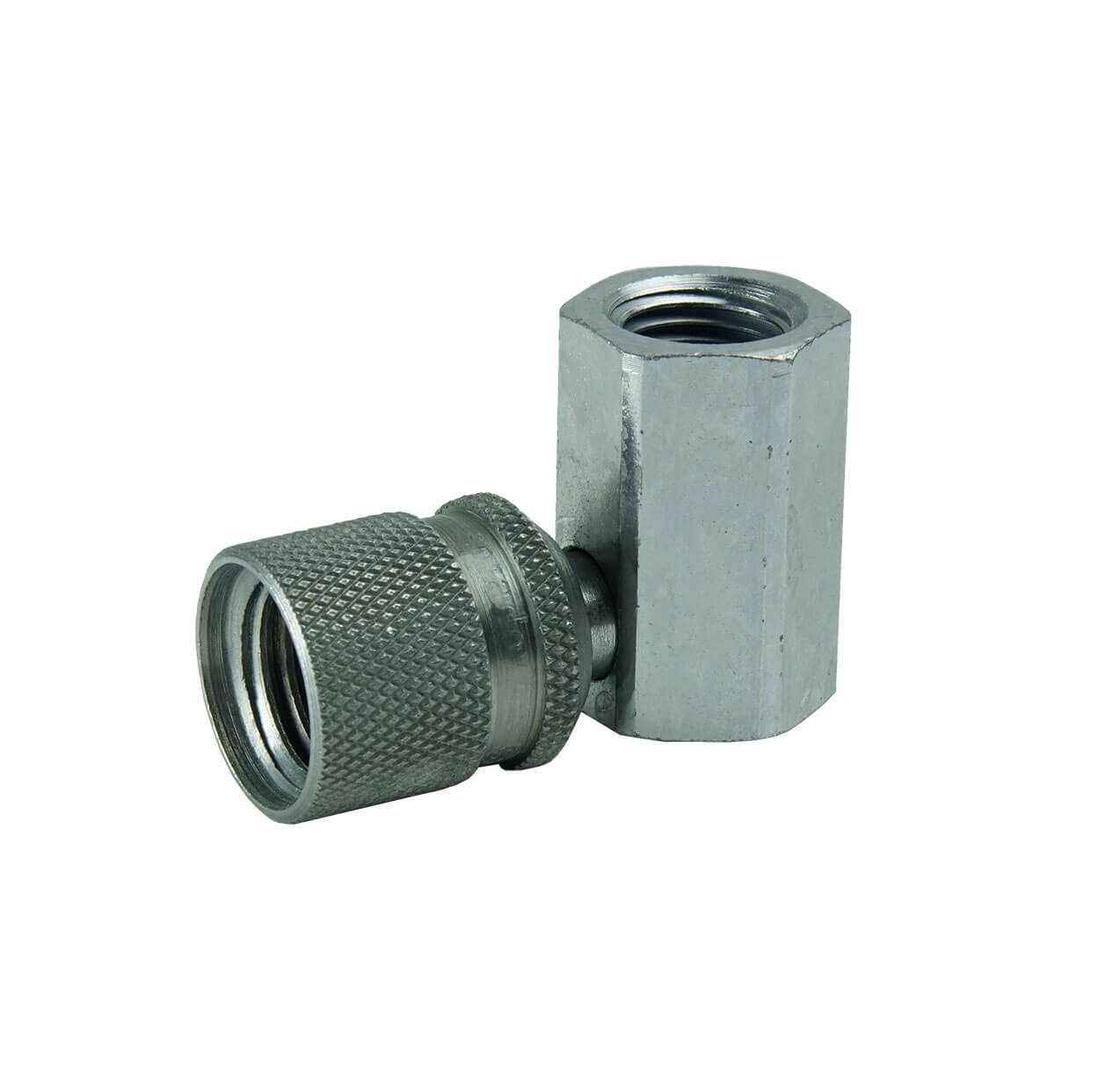

90° Direct Gauge Adaptor, G1/4 BSPP
$26.85
The direct gauge adapter is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adapter is a M16x2 connection.
Use in conjunction with the M16x2 test connector (Test Point).
Specifications:
- Material: Steel
- Seal: NBR (Buna-N)
- Maximum Working Pressure: 9137 PSI (630 bar)
- Connect Under Pressure: 5800 PSI (400 bar)
- Temperature Rating: -13 to +230˚F (-25 to +110˚C)
- Media: Suitable for hydraulic oils and other mineral-based fluids
- Made in Europe
- Other seal materials are available upon request
