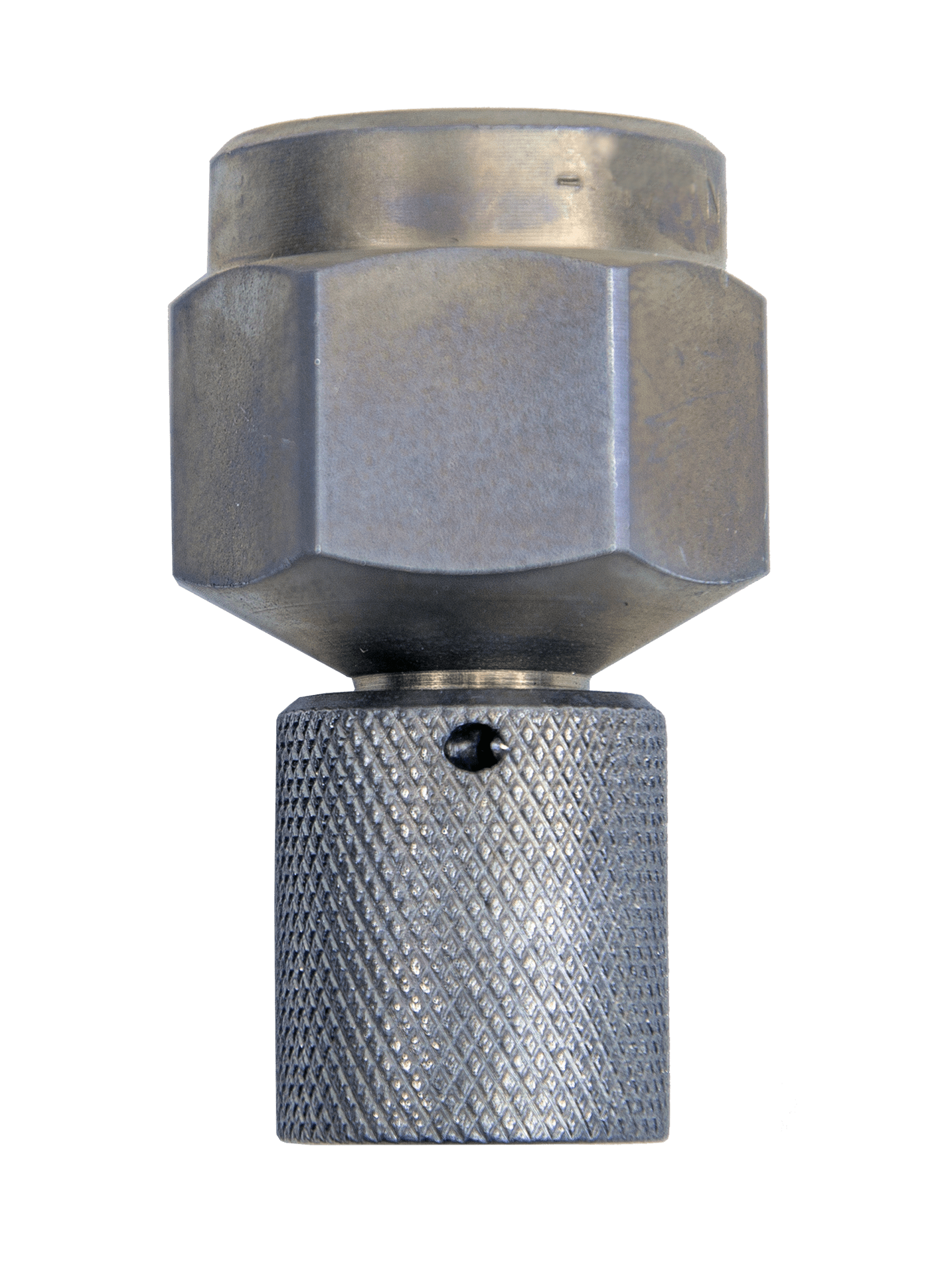

Direct Gauge Adapter, G1/2″ BSPP

$26.27

The direct gauge adaptor is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adaptor is a M16x2 connection.

Use in conjunction with the M16x2 test connector (Test Point).

Specifications:

  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral based fluids

Interchangeable with:

  • MCS: 620.09.208.00
  • Hydac: 06003825
  • HydroTechnik: 2103-07-12.62
  • Spradow: 1-927-31-21-020-CF
  • …And many others
SKU: HC-DGA-G1/2 Category:

Additional information

Weight 0.2 lbs
Dimensions 2.5 × 1.25 × 1.25 in
Size

G1/2" BSPP

Dash Number

-8

Nominal Size

8
