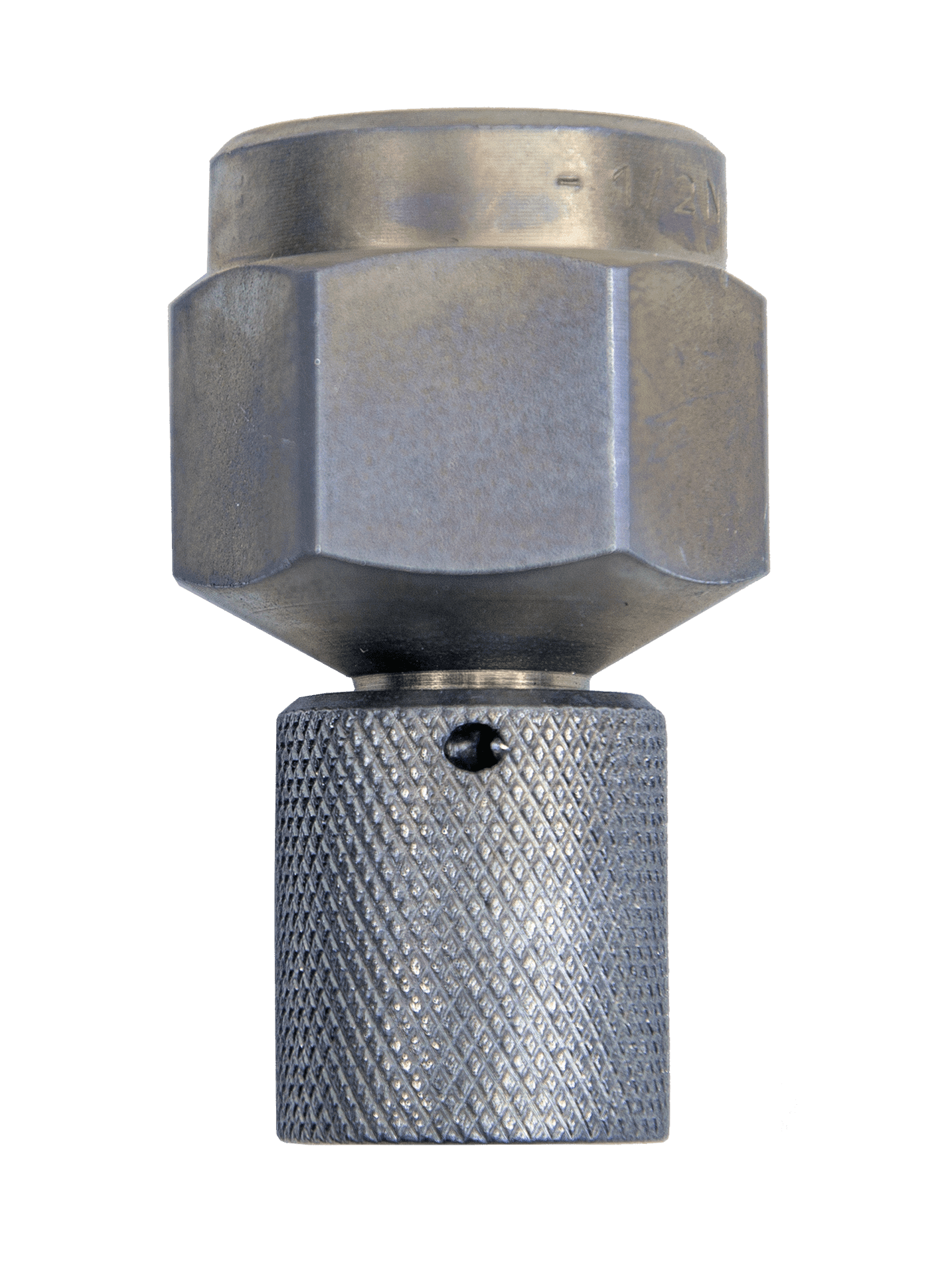

Direct Gauge Adaptor, 1/2″ NPT


The direct gauge adaptor is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adaptor is a M16x2 connection.

Use in conjunction with the M16x2 test connector (Test Point).


  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral based fluids
SKU: HC-DGA-1/2NPT Category:
Print Friendly, PDF & Email

Additional information

Weight 0.2 lbs
Dimensions 2.5 × 1.25 × 1.25 in

1/2" NPT

Dash Number


Nominal Size
