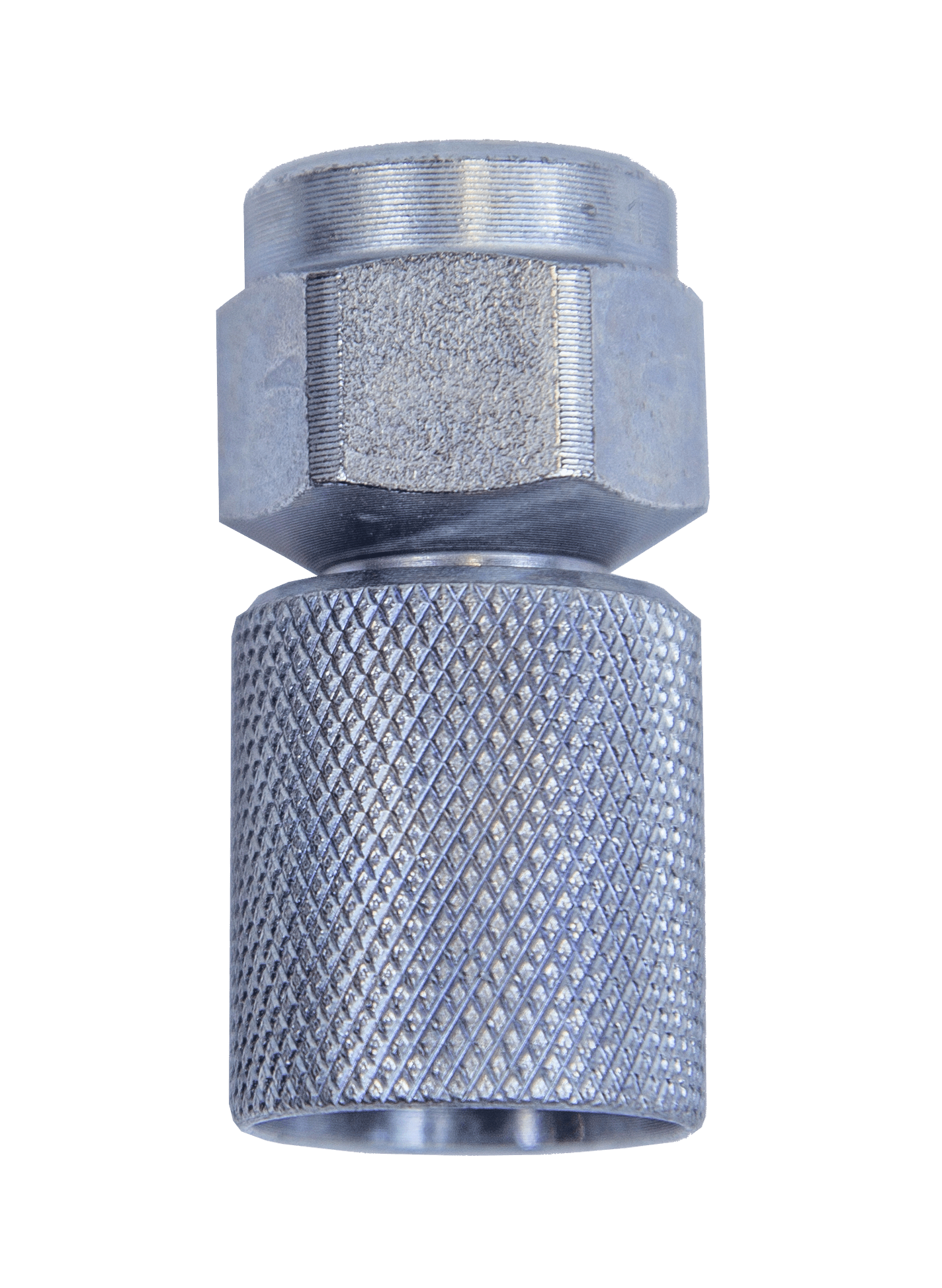

Direct Gauge Adaptor, 7/16″ ORB

$30.15

The direct gauge adaptor is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adaptor is a M16x2 connection.

Use in conjunction with the M16x2 test connector (Test Point).

Specifications:

  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral based fluids

Interchangeable with:

  • Hydac: 02083643
  • Stauff: SMD20-7/16UNF-V-C6F
  • …And many others
SKU: HC-DGA-7/16UNF Category:

Additional information

Weight 0.1 lbs
Dimensions 1.875 × .875 × .875 in
Size

7/16" UNF

Dash Number

-4

Nominal Size

04
