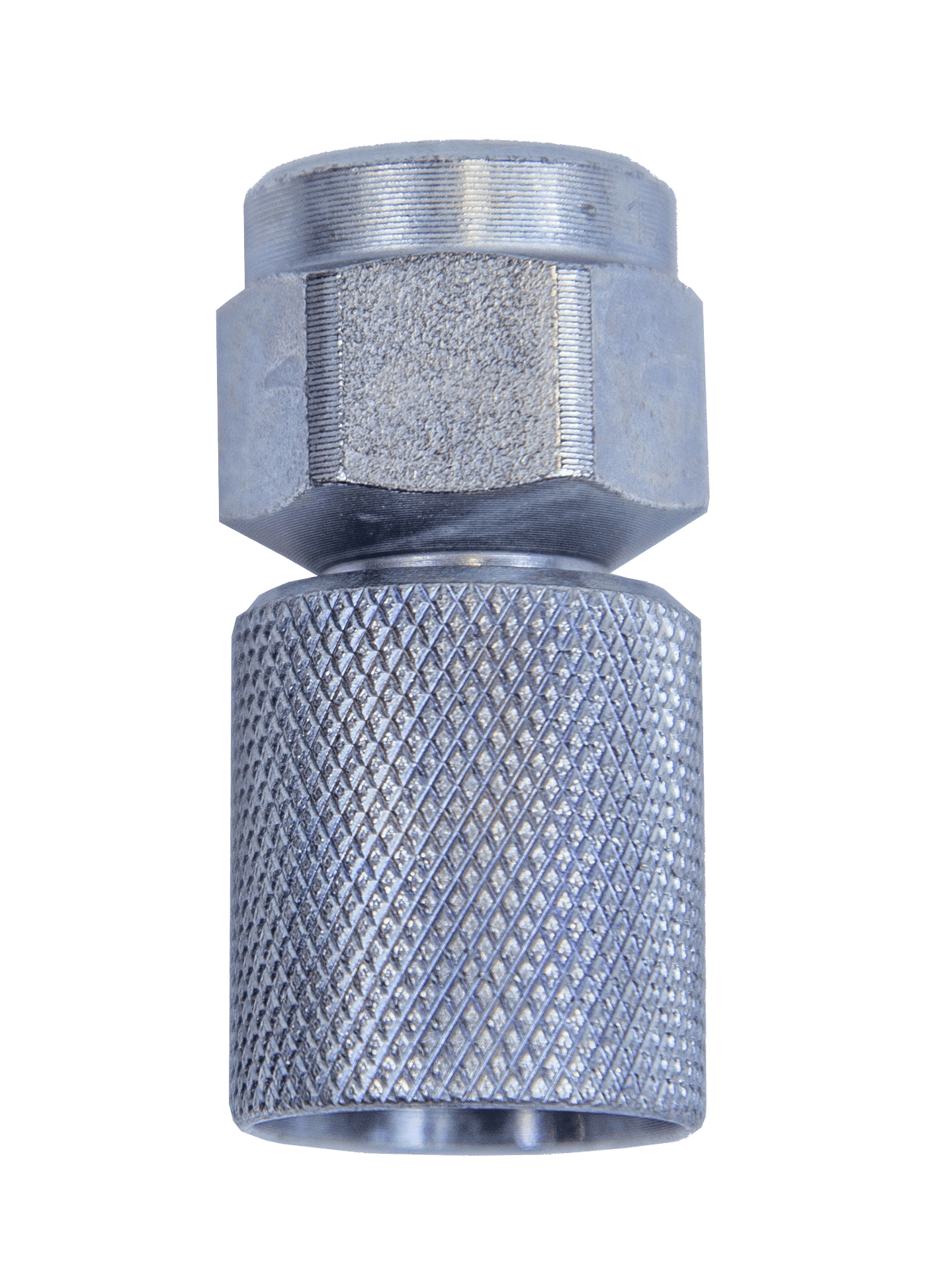

Direct Gauge Adaptor, G1/4″ BSPP

Name: Direct Gauge Adaptor, G1/4" BSPP
SKU: HC-DGA-G1/4
Price: 30.10 USD

$30.10

The direct gauge adaptor is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adaptor is a M16x2 connection.

Use in conjunction with the M16x2 test connector (Test Point).

Specifications:

Material: Steel
Maximum Working Pressure: 9137 PSI (630 bar)
Connect Under Pressure: 5800 PSI (400 bar)
Temperature Rating: -4 to +212°F (-20 to +100°C)
Media: Suitable for hydraulic oils and other mineral based fluids

Interchangeable with:

MCS: 620.09.204.00
Hydac: 06003824
HydroTechnik: 2103-07-11.62
Spradow: 1-927-29-21-020-CF
…And many others

SKU: HC-DGA-G1/4 Category: Diagnostic Quick Disconnects

Additional information

Additional information

Weight	0.15 lbs
Dimensions	1.875 × .875 × .875 in
Size	G1/4" BSPP
Dash Number	-4
Nominal Size	04
