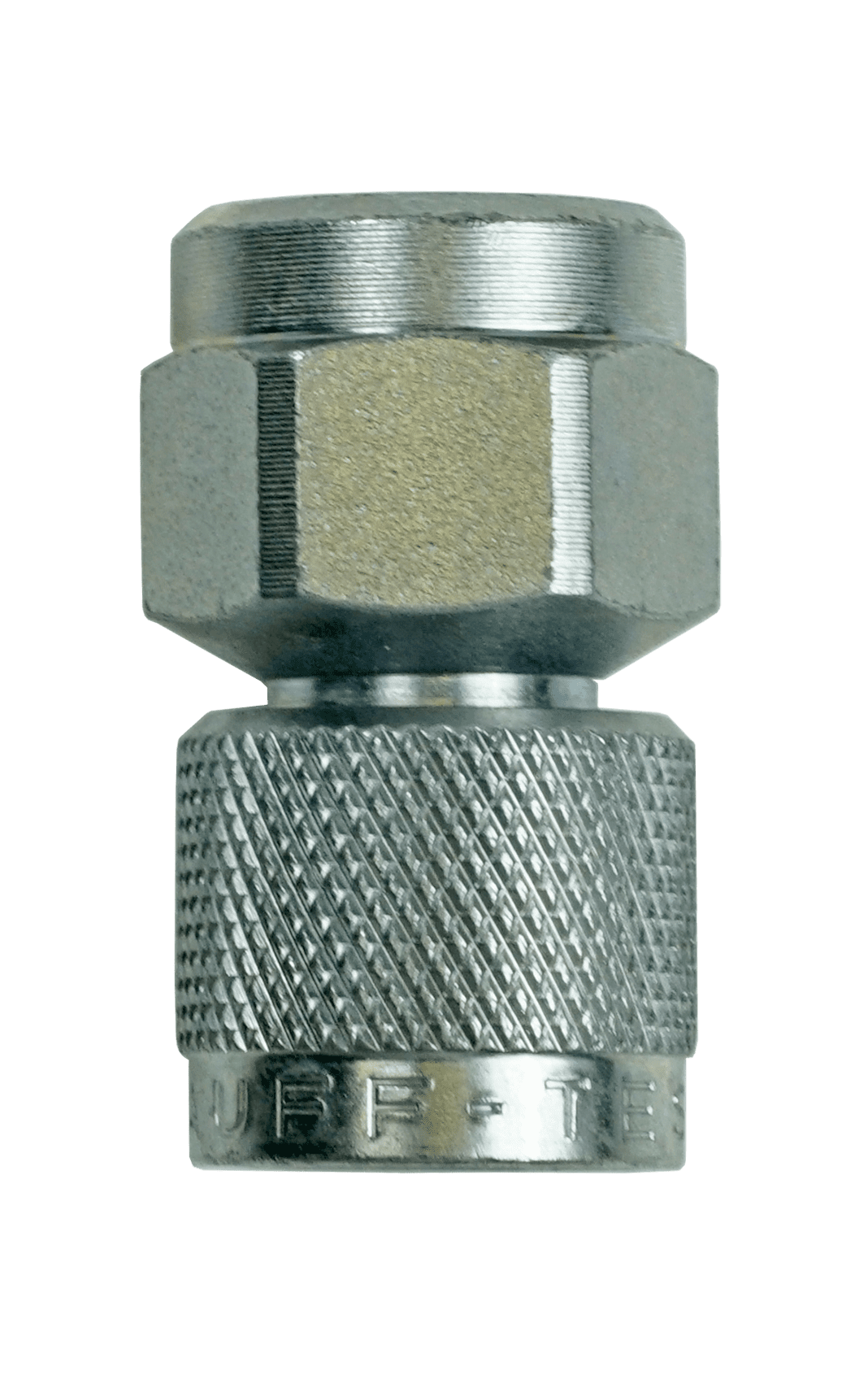

Direct Gauge Adaptor – Test 12 (S12.65×1.5), 1/4″ NPT

$29.25

The direct gauge adaptor is designed to make the gauge connection to a pressure test coupling safe, effortless, and spill-free. The female swivel end of the direct gauge adaptor is an S12.65×1.5 connection.

Use in conjunction with the S12.65×1.5 test connector (Test Point).

Specifications:

  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids

Interchangeable with:

  • HydroTechnik: 2101-07-23.62
  • Spradow: 1-927-44-00-290-CF
  • …And many others
SKU: HC-DGA12-1/4NPT Category:
Print Friendly, PDF & Email

Additional information

Weight .1 lbs
Dimensions 1.875 × .875 × .875 in
Size

1/4" NPT

Dash Number

-4

Nominal Size

04
