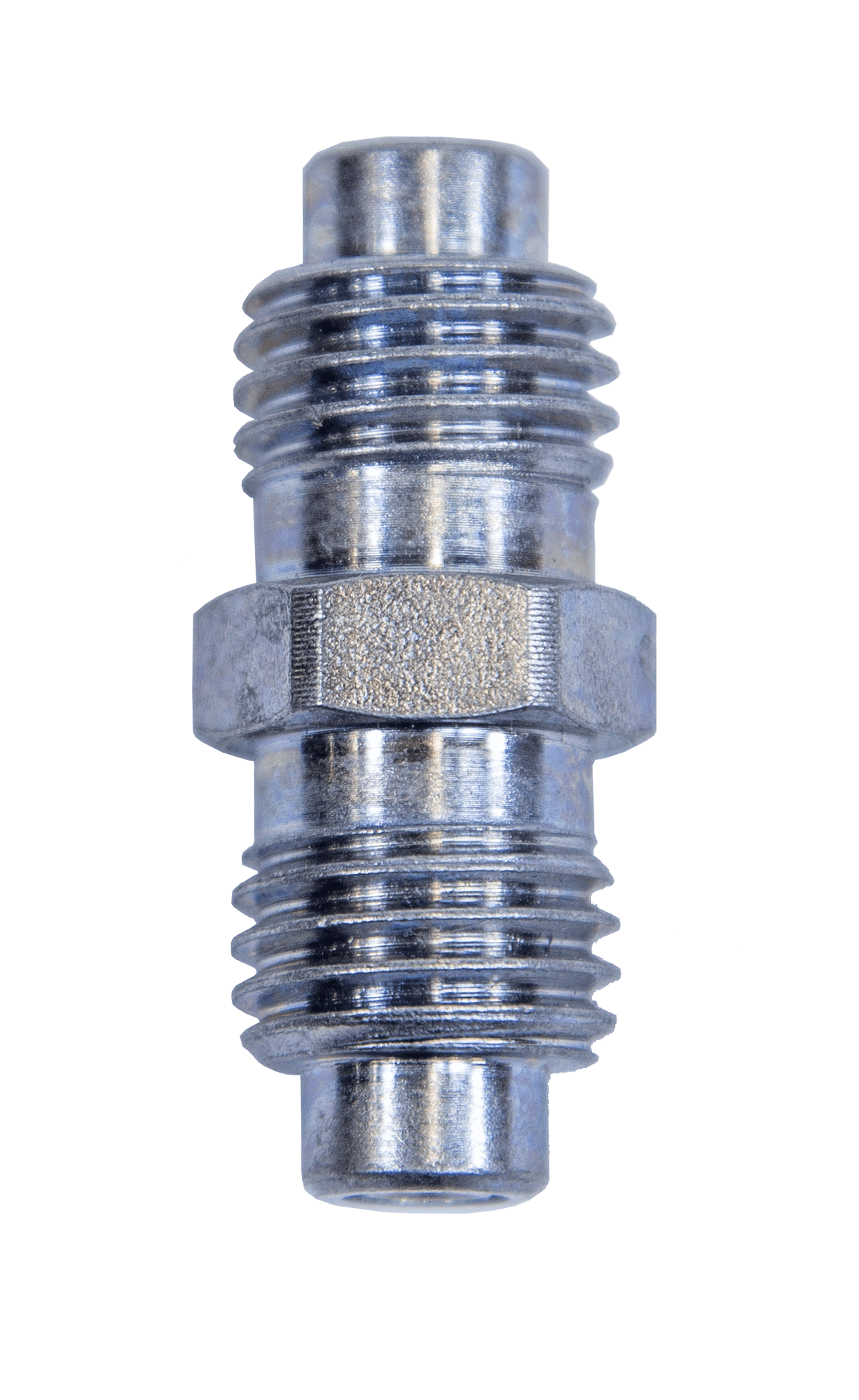

Hose Union (M16x2)


The hose union is used to join two microbore hose assemblies together, or to connect a microbore hose end to a direct gauge adaptor. Both male ends have a M16x2 connection.


  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral based fluids
SKU: HC-SSV-2020 Category:

Additional information

Weight 0.1 lbs
Dimensions 1.875 × .875 × .875 in
