Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 1.875 × .875 × .875 in |

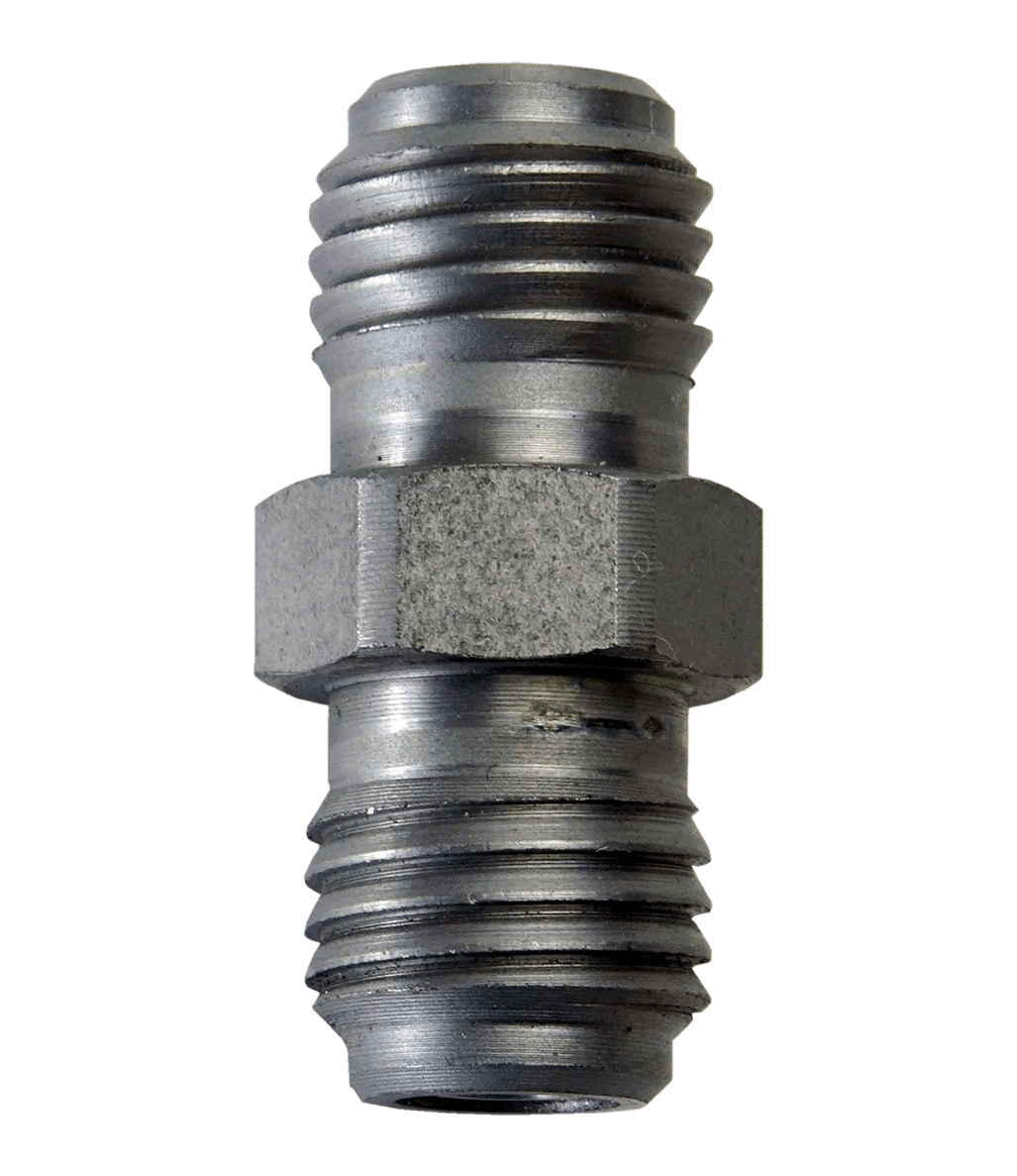

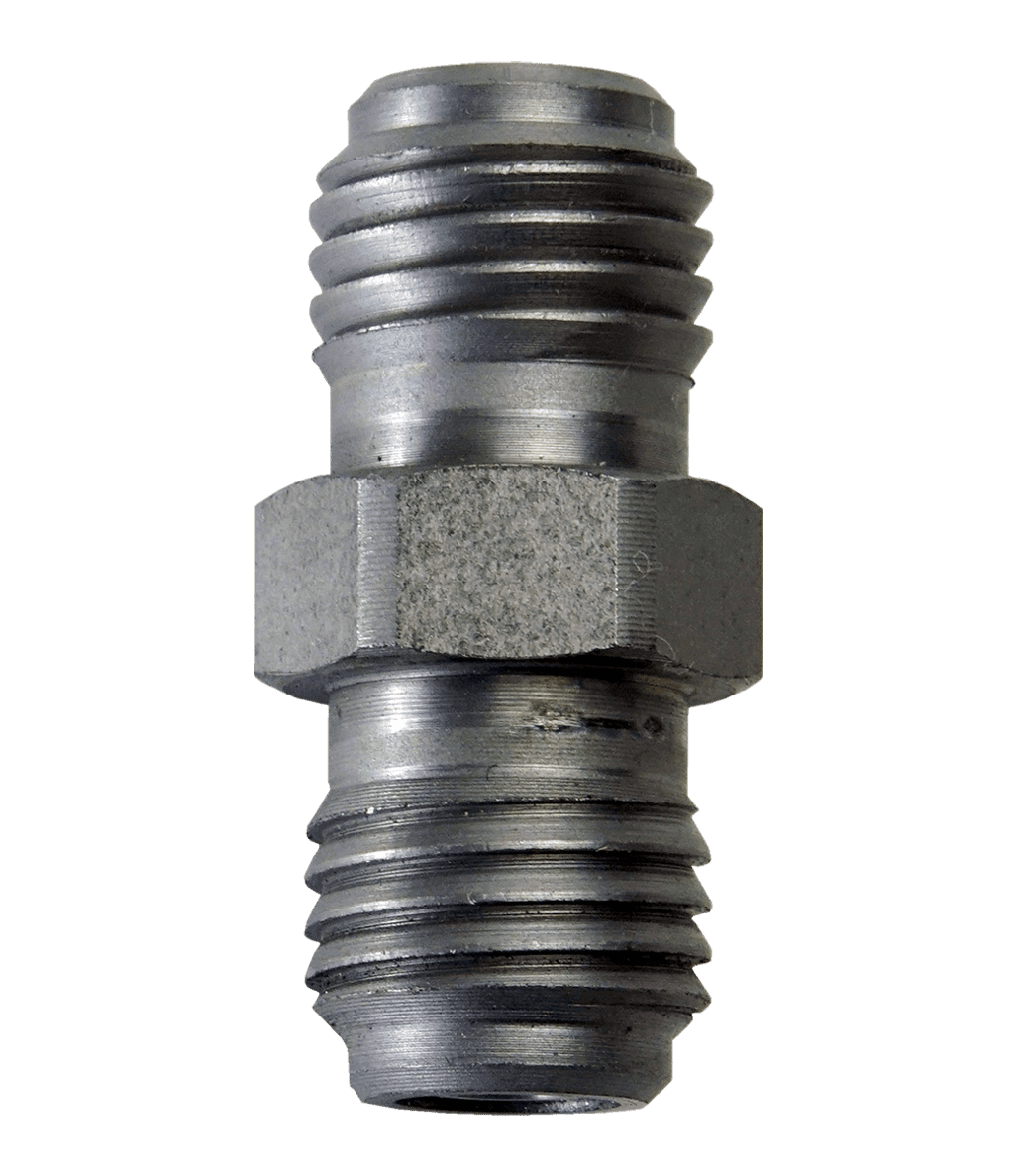

Hose Union, Test 12 (S12.65×1.5)
$28.49
The hose union is used to join two microbore hose assemblies together, or to connect a microbore hose end to a direct gauge adaptor. Both male ends have an S12.65×1.5 connection.
Specifications:
- Material: Steel
- Maximum Working Pressure: 9137 PSI (630 bar)
- Connect Under Pressure: 5800 PSI (400 bar)
- Temperature Rating: -4 to +212°F (-20 to +100°C)
- Media: Suitable for hydraulic oils and other mineral-based fluids
