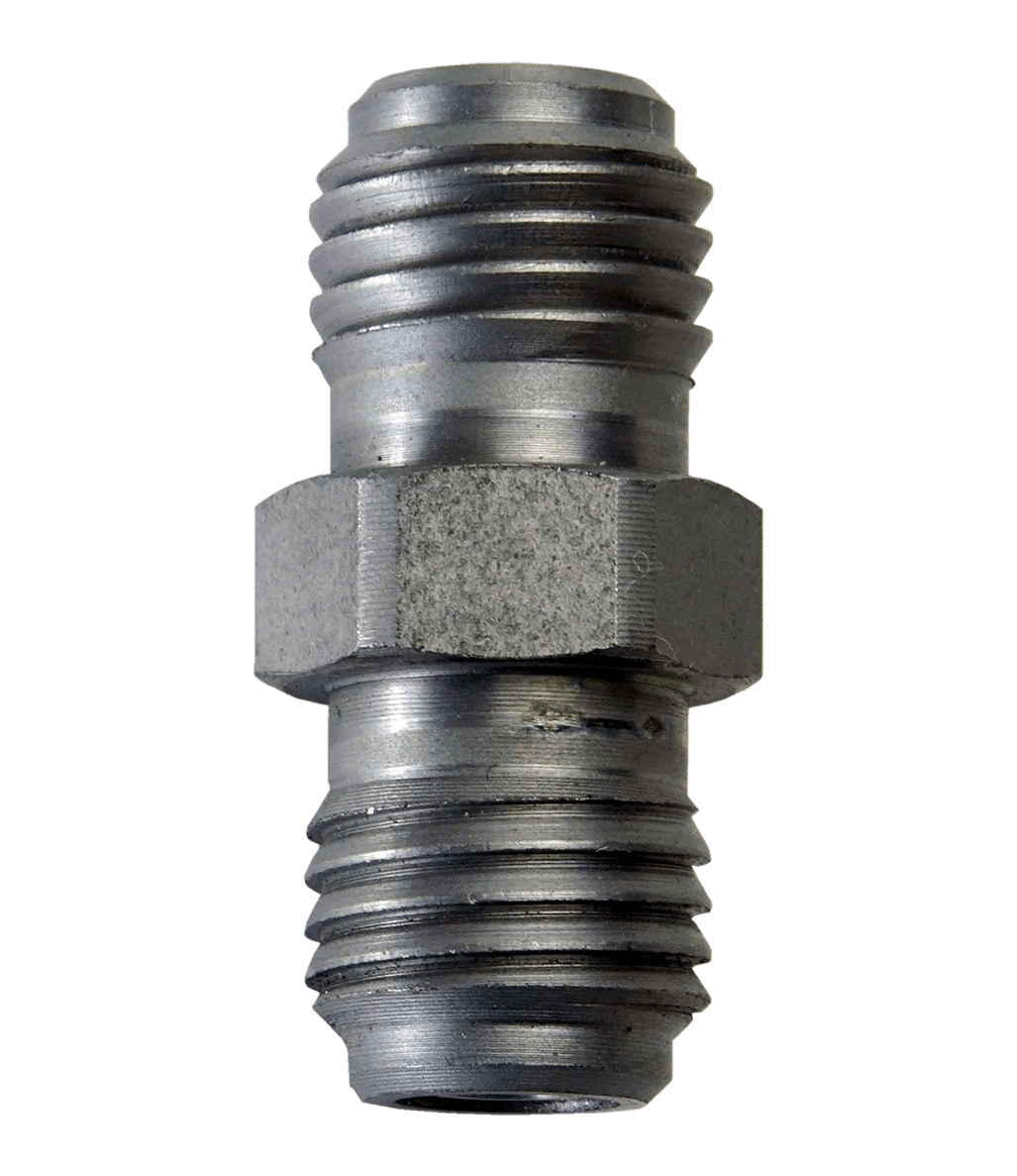

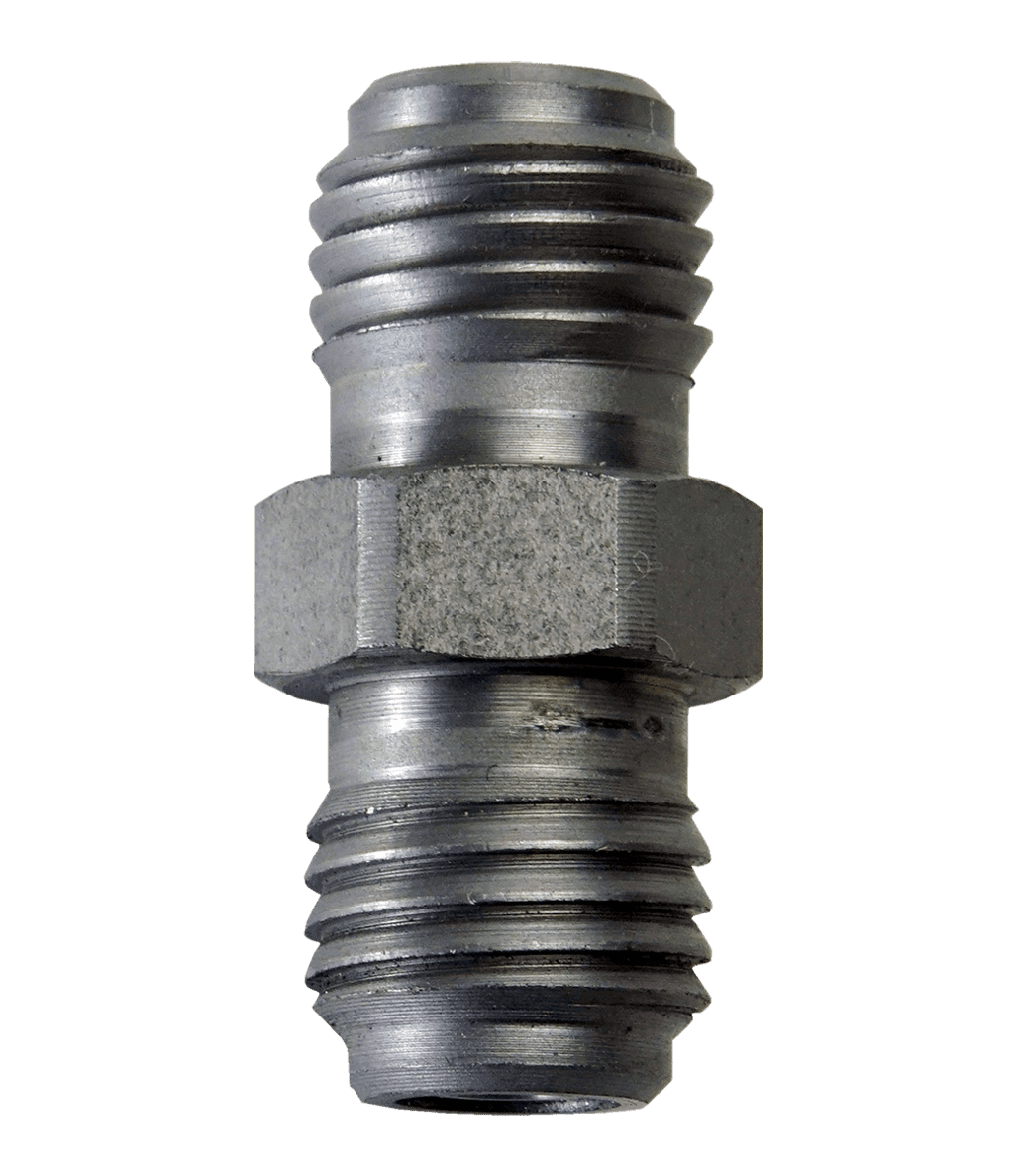

Hose Union, Test 12 (S12.65×1.5)

$28.49

The hose union is used to join two microbore hose assemblies together, or to connect a microbore hose end to a direct gauge adaptor. Both male ends have an S12.65×1.5 connection.

Specifications:

  • Material: Steel
  • Maximum Working Pressure: 9137 PSI (630 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212°F (-20 to +100°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-SSV-1212 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.1 lbs
Dimensions 1.875 × .875 × .875 in
