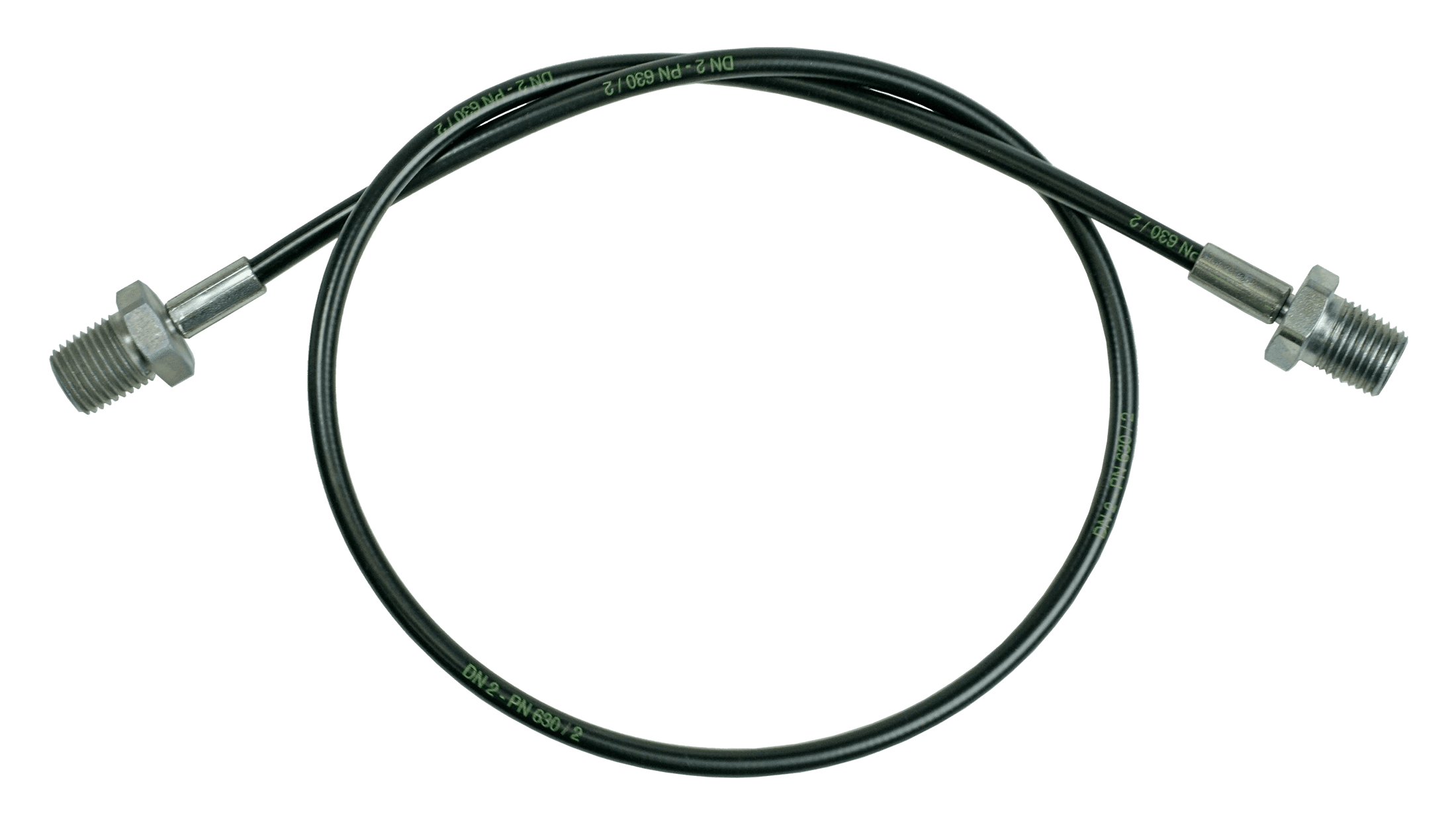

Microbore Hose Assembly, 1/4″ NPT Male, 12″

$48.10

A microbore hose (spaghetti hose) is a critical component in pressure testing applications, offering unparalleled precision and reliability. Specifically designed for high-pressure fluid transmission, this hose features a small internal diameter that ensures accurate and consistent measurements during pressure tests. Ideal for industries such as aerospace, automotive, and manufacturing, the microbore hose is essential for validating system reliability under specified pressure conditions. Crafted from durable materials, this hose provides superior resistance to corrosion, chemicals, and extreme temperatures, making it highly reliable in harsh environments. Its compact size allows for precise readings with minimal fluid displacement, which is crucial for accurate pressure testing.

Measuring approximately 1/4″ (5mm) in outside diameter and extremely lightweight, the microbore hose is available in various lengths for your convenience and comes equipped with 1/4″ NPT male fittings.

Specifications:

  • Length: 12″ (305 mm)
  • Nominal Bore: DN 2
  • Maximum Working Pressure: 9000 PSI (630 bar)
  • Minimum Bursting Pressure: 27000 PSI (1900 bar)
  • Working Temperature Rating: -31 to +212°F (-35 to +100°C)
  • Inside Diameter: 0.08″ (2mm)
  • Outside Diameter: 0.2″ (5mm)
  • Reinforcement: Synthetic Fiber
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-HA-012-M1/4 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.2 lbs
Dimensions 3.5 × 1 × 3.5 in
Length

12" (305 mm)

Hose ID Size

.08" (2 mm)

Maximum Working Pressure

9000 PSI (630 bar)
