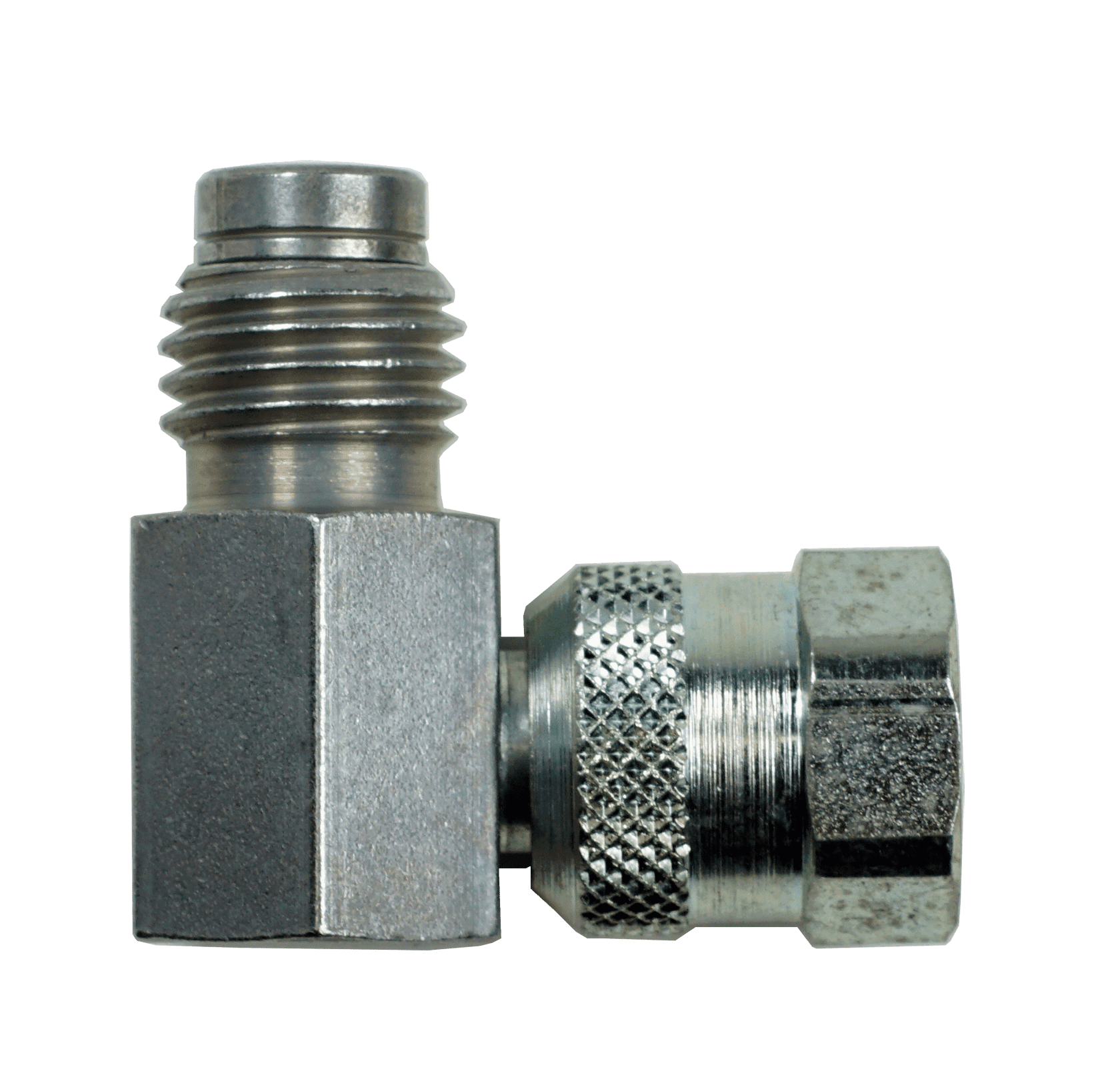

Pressure Test Coupling With 90° Elbow Connection – Test 20 (M16x2)

$26.56

The M16x2 male pressure test coupling with a 90° M16x2 female swivel can be installed at any point of the hydraulic system where pressures need to be monitored. The system is designed and manufactured according to ISO 15171-2 and is fully interchangeable with any brand of test point or Minimess that uses an M16x2 connection.

Specifications:

  • Material: Steel
  • Maximum Working Pressure: 9000 PSI (600 bar)
  • Connect Under Pressure: 5800 PSI (400 bar)
  • Temperature Rating: -4 to +212˚F (-20 to +100˚C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-DGA90-T20 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.2 lbs
Dimensions 1.688 × 1 × 1.625 in
Maximum Working Pressure

630 Bar

Temperature Range

-4 to 212 ºF
-20 to 100 ºC

Material

Zinc-plated Steel
