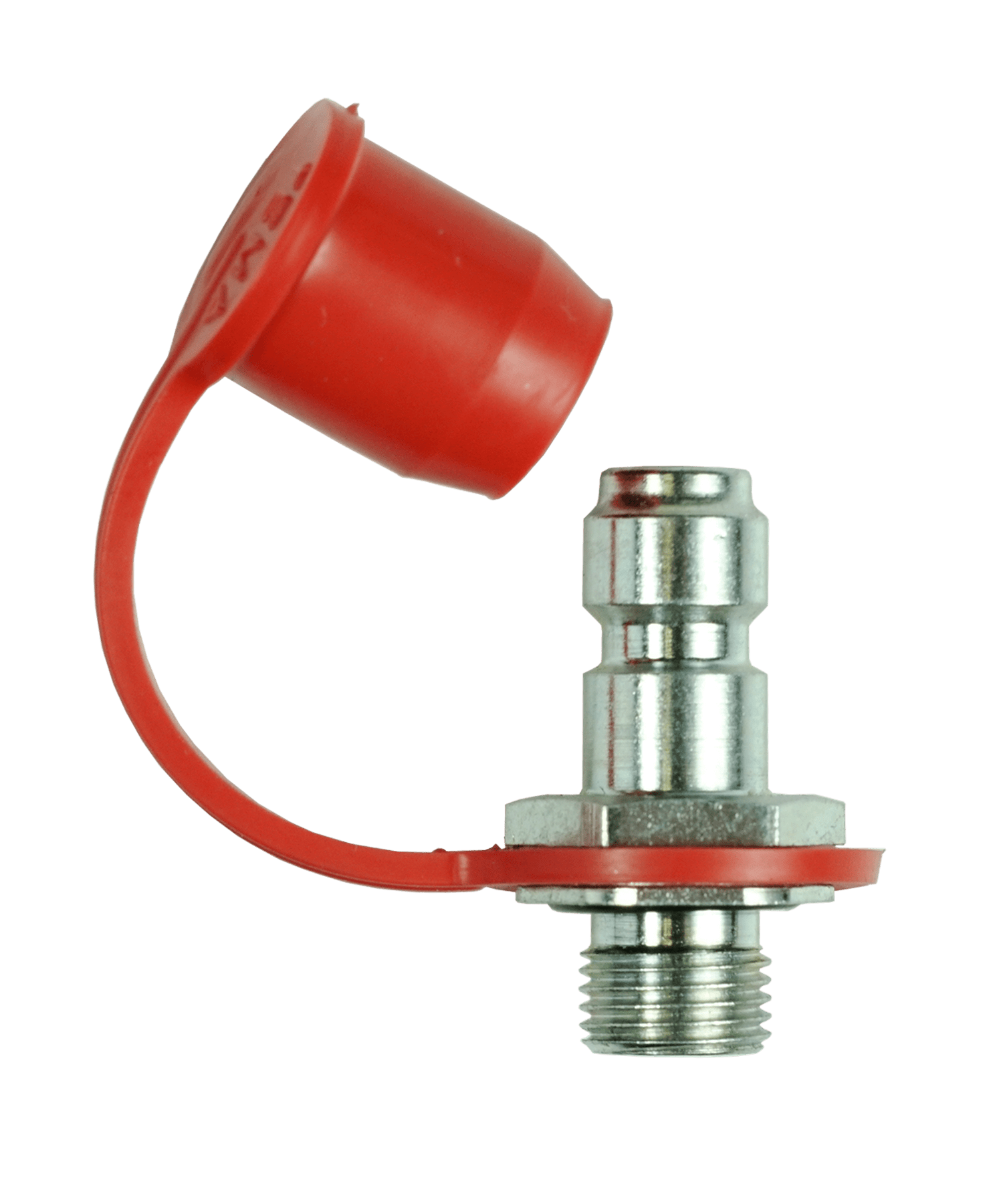

TEMA System 100 Diagnostic Nipple, M12x1.5 Male Thread

$48.95

Thanks to their advanced design, the diagnostic nipples are reliable components in the System 100 measuring device. They are made of hardened steel. The diagnostic nipples are maintenance-free and are designed for temperatures from -40°F to 230°F (-40°C to +110°C). The integrated stop valve seals up to a 90 % vacuum. All mechanical parts in the diagnostic nipple are made of corrosion-proof materials. An O-ring is integrated into the thread of the measuring nipple as a seal. Comes equipped with a dust cap.

Use in conjunction with the TEMA System 100 Diagnostic Couplers. Compatible with older Volvo® and some Samsung® machines.

Specifications:

  • Fully sealed
  • Maintenance-free
  • Metal-to-metal seal
  • Temperature Rating: -40°F to +230°F (-40°C to +110°C)
  • Pressure Rating: 5800 PSI (400 bar)
SKU: HC-PT-S100-M12x1.5 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.076 lbs
Dimensions 1.625 × 1.375 × 0.875 in
