Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 2.063 × 0.8125 × 2.75 in |
| Description | Test 20 Conversion Adapter, 90 degree – M16x2 to 5/8-14 BSF (HSP) |

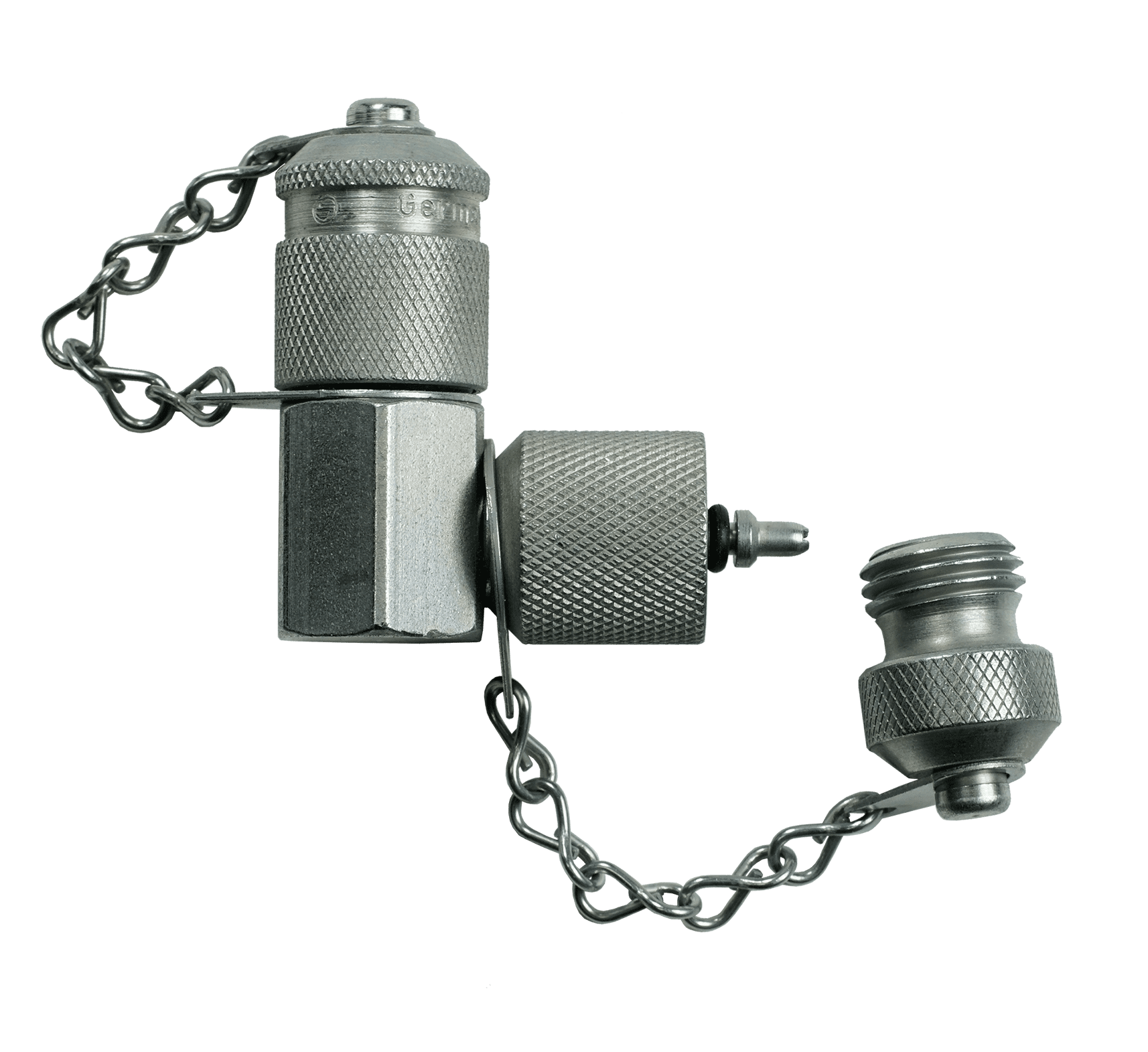

HSP Conversion Adapter, 90 degree – M16x2 to 5/8-14 BSF (HSP & Steck)
$46.75
The 90 degree HSP conversion adapter has been constructed to enable an adaptation between the 5/8″-14 BSF system (HSP & Steck) to the worldwide used M16x2 system. Just screw our adapter onto the HSP & Steck test coupling (test point). The result is a regular M16x2 system connection. Now you can use your hoses and fittings from the M16x2 system.
Specifications:
- Material: Steel
- Surface: Zinc nickel, transparent, CrVI-free
- Pressure rating: 9000 PSI (630 bar)
- Temperature rating: -4 to 212°F (-20 to 100°C)
- Media: Hydraulic oils and mineral-based fluids
Compatible with JCB machines.
