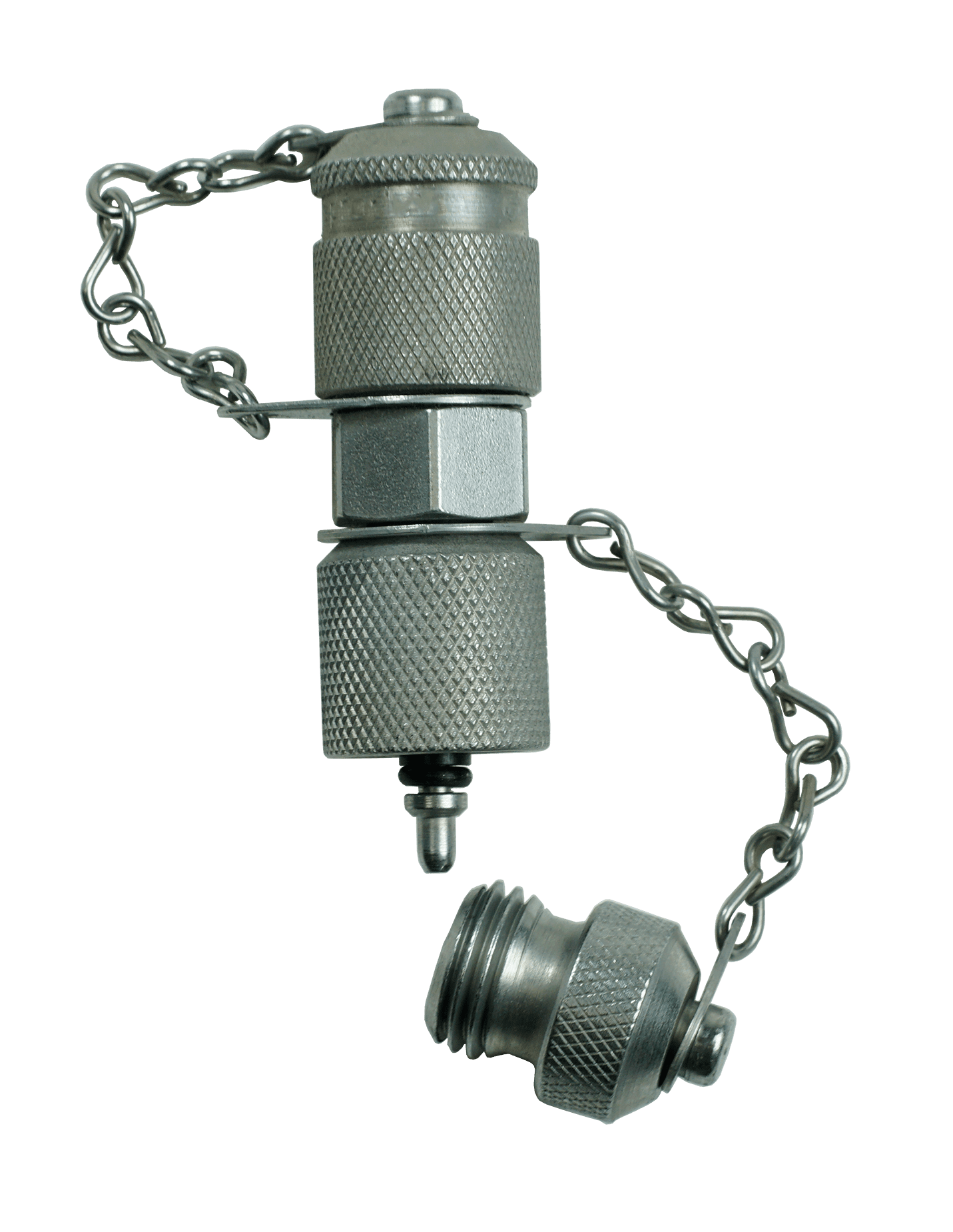

HSP Conversion Adapter – M16x2 to 5/8″-14 BSF (HSP & Steck)


The HSP conversion adapter has been constructed to enable an adaptation between the 5/8″-14 BSF system (HSP & Steck) to the worldwide used M16x2 system. Just screw our adapter onto the HSP & Steck test coupling (test point). The result is a regular M16x2 system connection. Now you can use your hoses and fittings from the M16x2 system.


  • Material: Steel
  • Surface: Zinc nickel, transparent, CrVI-free
  • Pressure rating: 9000 PSI (630 bar)
  • Temperature rating: -4 to 212°F (-20 to 100°C)
  • Media: Hydraulic oils and mineral-based fluids

Compatible with JCB machines.

SKU: HC-PT-HSP Category:
Print Friendly, PDF & Email

Additional information

Weight 0.3 lbs
Dimensions 3.27 × 1.125 × .8125 in

Test 20 Conversion Adapter – M16x2 to 5/8"-14 BSF (HSP)
