Transition Adapter Kit

Transition Adapter Kit

$685.25

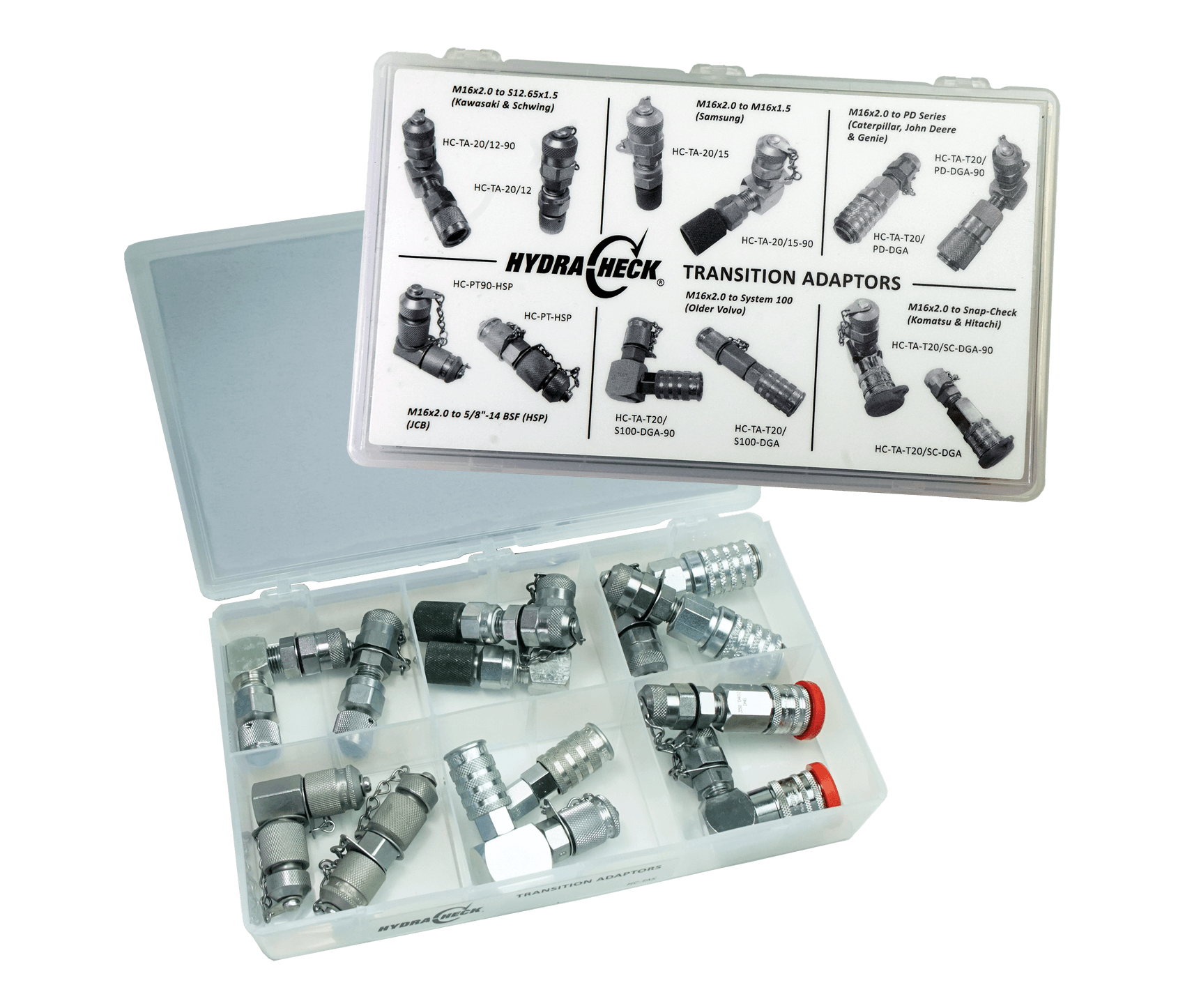

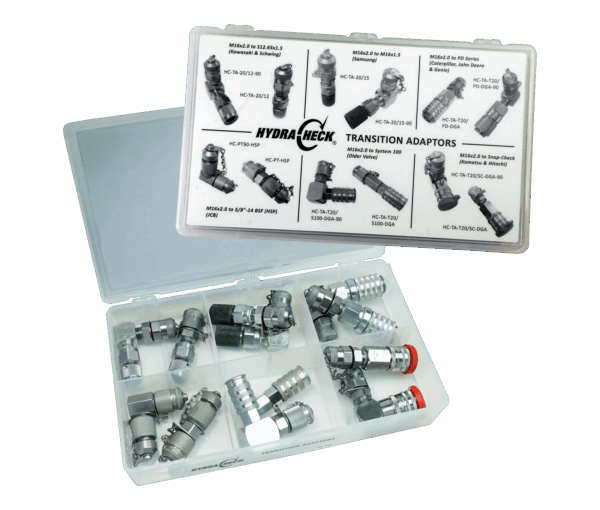

Our Transition Adapter Kit was assembled to help you have all the adapters you need to check pressure on a wide range hydraulic systems you come across in the field. We have included both straight and 90 degree connections in various diagnostic coupling configurations so you can connect to the diagnostic nipples found on machines manufactured by Caterpillar, John Deere, Komatsu, Volvo, JCB, Genie, etc.

HydraCheck’s transition adapters make it possible to connect to any manufacturers test connector using a simple M16x2 male connection.

Features:

  • (x1) Straight and 90 degree M16x2 test point x S12.65×1.5 female swivel gauge port adapter (Kawasaki & Schwing)
  • (x1) Straight and 90 degree M16x2 test point x M16x1.5 female swivel gauge port adapter (Samsung)
  • (x1) Straight and 90 degree M16x2 test point x PD Series diagnostic coupler (Caterpillar, John Deere, & Genie)
  • (x1) Straight and 90 degree M16x2 test point x 5/8″-14 BSF (HSP) connection (JCB)
  • (x1) Straight and 90 degree M16x2 test point x TEMA System 100 coupler (Older Volvo)
  • (x1) Straight and 90 degree M16x2 test point x Snap-Check coupler (Komatsu)
  • Plastic carry case with all connectors labeled
SKU: HC-TA-KIT Category:

Additional information

Weight 5 lbs
Dimensions 10.875 x 6.75 x 1.75 in
