MicroLeak Test Kit

$286.08$2,398.45

The MicroLeak test kit allows safe and accurate field-testing of hydraulic components, particularly pressure control valves, check valves, directional control valves, and circuit modules, without ever having to exhaust pressurized oil into the atmosphere.

Packaged in a rugged carry-case, you will find all the adaptors you need to MicroLeak test hydraulic components equipped with:

  • Male pipe (NPT) plugs – 1/4″, 3/8″, 1/2″, 3/4″, 1″, 1-1/4″
  • Oring Boss (SAE) straight thread connectors – #4, #6, #8, #10, #12, #16, #20, #24
  • JIC 37º female connectors – #4, #6, #8, #10, #12, #16, #20, #24
  • ORFS female connectors. – #4, #6, #8, #10, #12, #16, #20, #24
  • Split flange (code 61) connectors.
  • Split flange (code 62) connectors.

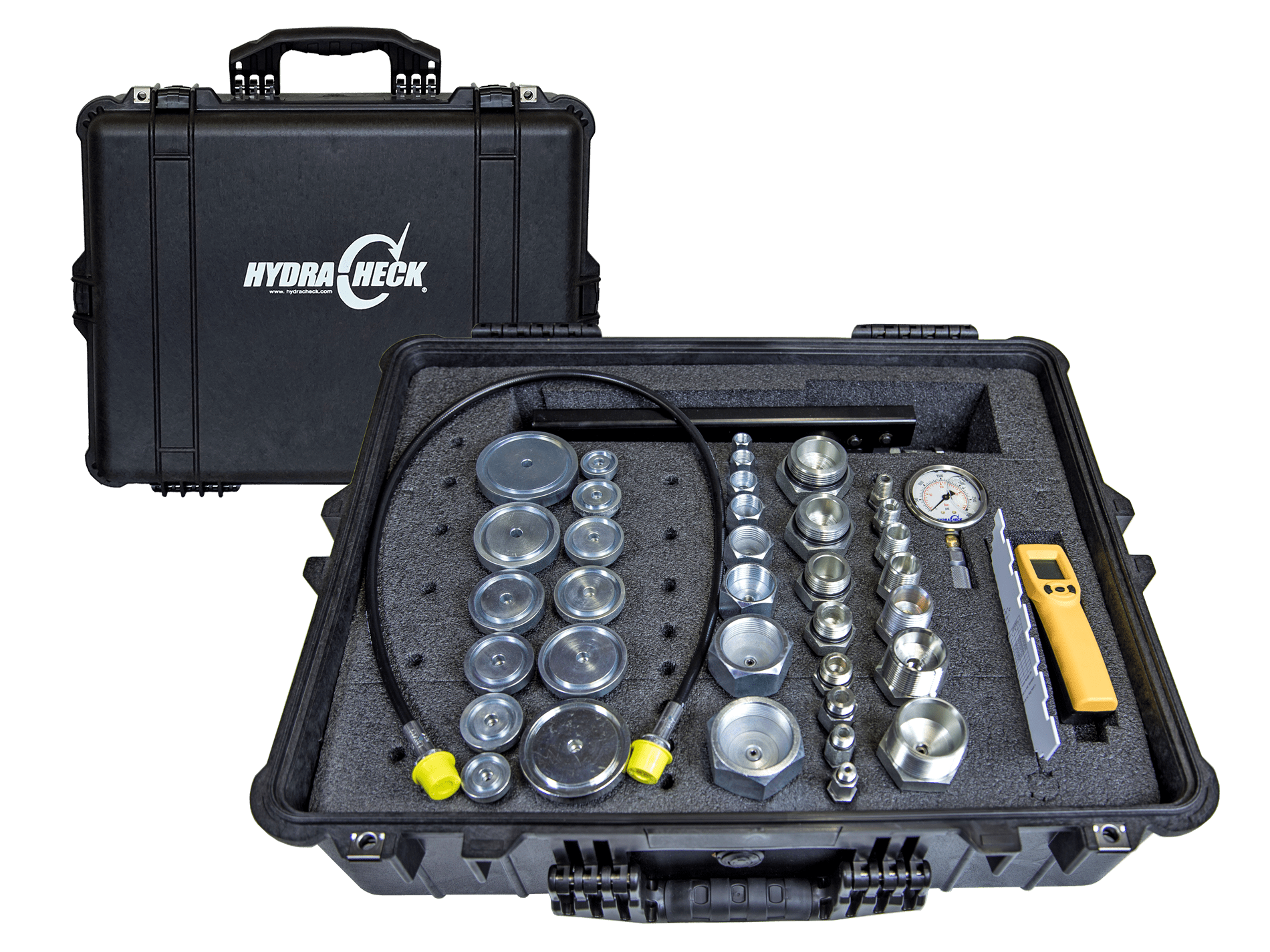

The HC-TK2000 test kit includes:

  • 0 to 3000 PSI (207 bar) pressure gauge with M16x2 direct gauge adaptor.
  • 24″ (607mm) hose assembly with M16x2 (Test 20) female swivel ends.
  • MicroLeak hand-operated test pump, 3000 PSI (207 bar).
  • Infrared, non-contact, mini-thermometer, with laser sighting.
  • NPT adaptors size: 1/4″ to 1-1/2″.
  • SAE adaptors size: #4 to #24.
  • JIC adaptors size: 1/4″ to 1- 1/2″.
  • Code 61 adaptors size: 1/2″ to 1-1/2″.
  • Code 62 adaptors size: 1/2″ to 1-1/2″.
  • Optional Caterpillar®-style adaptors size: 1/2″ to 2″.
