Turbine Wheel Flow Meter Kit with Built-in Safety, Up to 160 GPM, 5000 PSI

$6,155.00 – $6,879.00

The HC-TK1000 Flow Meter Kit has all the features of our HC-TK500 Test Kit, plus a load cell with built-in safety, a flow turbine with a flow range of up to 160 GPM (600 LPM), and the easy-to-use, versatile, handheld Digital Information Center.

The HC-TK1000 comes equipped with a load cell with built-in safety because we have your safety in mind. This unique feature removes the risks associated with testing fixed-displacement pumps and single-rod, double-acting cylinders. The Digital Hand-Held unit gives you the power to monitor pressure, peak pressure, and flow (via pressure transducers and a flow turbine) in one compact, rugged unit. Our HC-TK1000 Test Kit is a must for anyone servicing, maintaining, and troubleshooting hydraulic systems and components.

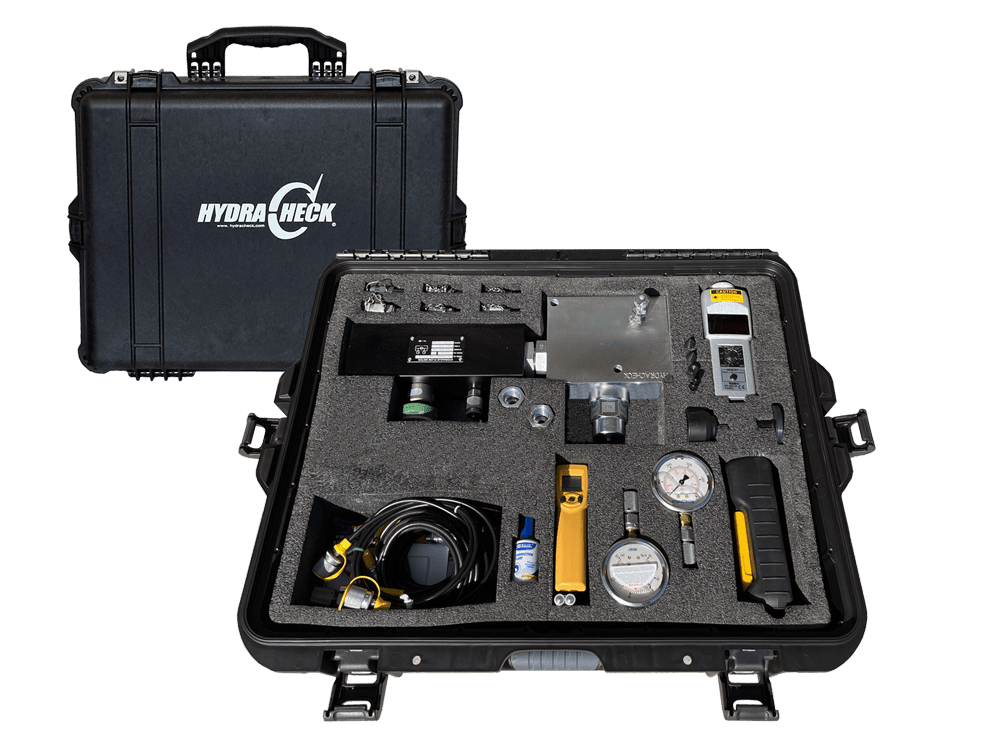

The HC-TK1000S test kit includes:

• Serviceman Plus (HPM4000) digital hand-held tester.
  • Lightweight.
  • Large back-lit display.
  • Scan rate: 1ms.
  • Automatic sensor recognition.
  • Reads flow and pressure.
  • Auto power off.
• (x1) Flow turbine and adjustable load test-cell with integral safety relief valve for use with the Serviceman Plus (HPM4000).
  • Flow ranges: Up to 160 GPM (Up to 600 LPM).
  • Pressure rating: 5000 PSI (345 bar).
• (x1) Pressure transducer with temperature uses an M16x2 female swivel adapter.
  • Pressure range: 0 to 8700 PSI (600 bar).
  • Temperature range: -13 to 221°F (-25 to 105°C).
• (x2) Connecting cables (5m) for use with the above flow turbine and pressure transducer.
• (x1) 0 to 6000 PSI (0 to 345 bar), glycerine-filled pressure gauge with direct gauge adaptor.
• (x1) 0 to 30″ Hg (0 to -1.0 bar), glycerine-filled vacuum gauge with direct gauge adaptor – for testing critical pump inlet restriction.
• (x1) Contact/non-contact digital hand-held tachometer with adapters.
  • Measuring range:  6 to 99,999 RPM
• (x1) Compact, hand-held, infrared, laser thermometer.
  • Temperature range: -76 to 1022°F (-60 to 550°C).
• (x1) 1/4″ NPT pressure test connectors.
• (x1) 7/16″ UNF pressure test connectors.
• (x1) G1/4 pressure test connectors.
• (x1) M12x1.5 pressure test connectors.
• (x1) M14x1.5 pressure test connectors.
• (x1) M16x1.5 pressure test connectors.
• (x1) 60″ microbore hose with M16x2 female swivel ends.
• (x1) Microbore hose union – allows you to connect a microbore hose end to a direct gauge adaptor.
• (x1) Thread identification kit – Helps to identify SAE, NPT, JIC, ORFS, and International threads.
• The toughest carry case in the industry: unbreakable, lockable, watertight, corrosion-proof, dent-proof, and air-tight. Built for tough field conditions.
