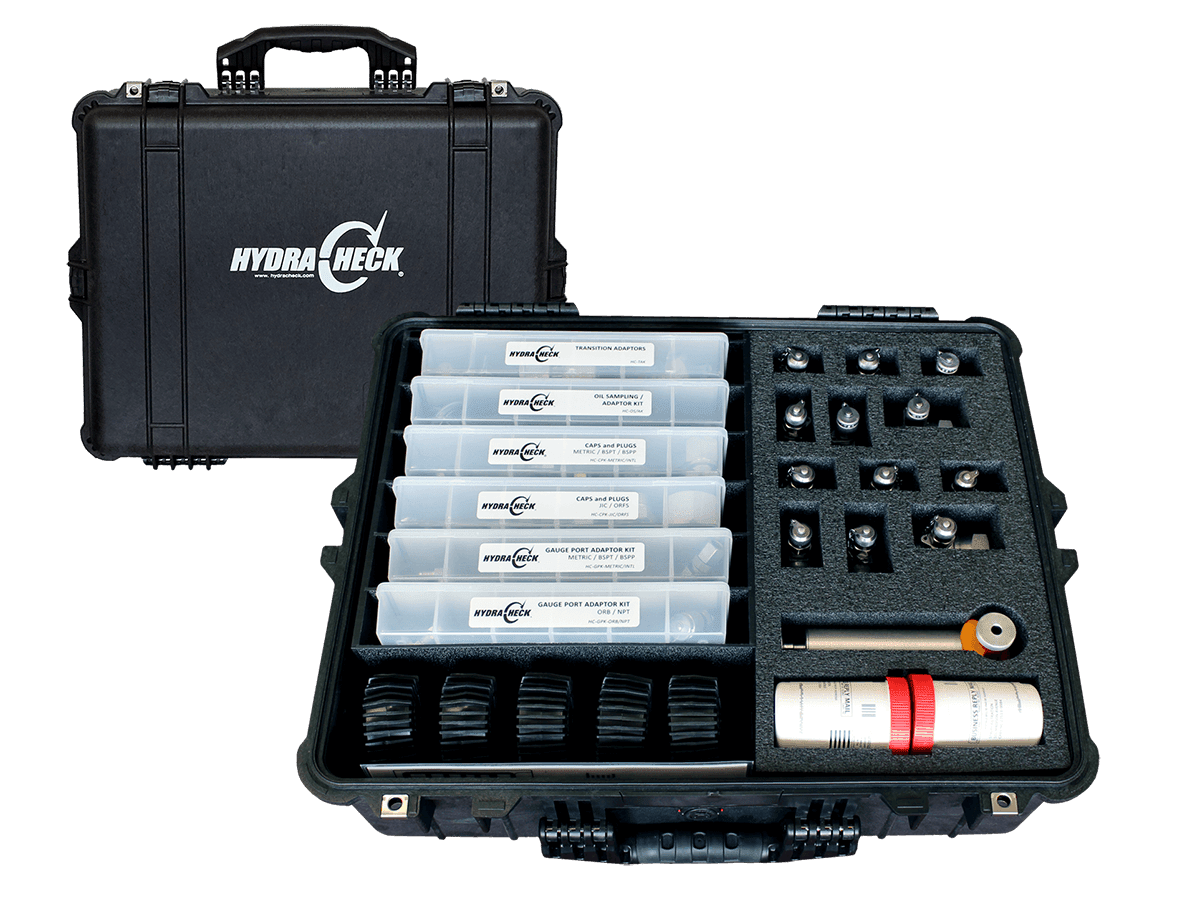

Universal Pressure Gauge Diagnostic Tee/Adapter Kit with Oil Sampling – Digital

$6,188.00

HydraCheck developed the Universal Pressure Gauge Diagnostic Tee/Adapter Kit with Oil Sampling because we wanted to give hydraulic technicians one kit that has all the pressure gauges needed for checking a broad variety of pressures. Having the right pressure only solves half the problem though. There is nothing more frustrating than trying to connect a pressure gauge to endless varieties of connectors. The Pressure Gauge Diagnostic Tee/Adapter Kit with Oil Sampling includes all the connectors one needs to connect to a variety of diagnostic couplings and port connections.

The kit includes four (5) digital pressure gauges, which are equipped with protective rubber boots to protect them in the harshest environments. Gauges scales range from 250 PSI (16 bar) up to 10,000 PSI (690 bar) for checking open and closed loop systems. This versatile kit contains gauge port adapters, which connect seamlessly to a wide variety of adapters, which includes JIC, ORFS, BSPP, JIS, and Komatsu. Want to change the kit around? No problem! Give us a call, and we will provide you with a kit that is tailored to suit your unique needs.

The kit comes with a variety of caps and plugs in both standard and metric sizes. It also includes a wide variety of transition adapters that let you make connections to almost any manufacturers diagnostic quick disconnects. All the caps, plugs and diagnostic quick disconnects come in smaller easy to use co For total convenience, the kit also includes a turn-key oil sampling solution, which consists of two (2) sampling bottles, and an oil sample pump.

The two sample bottles that are included in the kit come with prepaid mailing labels that you can send in for an all-inclusive fluid analysis that includes a spectrographic analysis, viscosity, visible debris analysis, total acid number, particle count, and Karl Fisher (KF).

This extremely versatile kit covers all your pressure monitoring & oil sampling needs.

Features:

  • (x1) 250 PSI (16 bar) digital pressure gauge with direct gauge adapter
  • (x1) 1500 PSI (100 bar) pressure gauge with direct gauge adapter
  • (x1) 5800 PSI (400 bar) pressure gauge with direct gauge adapter
  • (x1) 8700 PSI (600 bar) pressure gauge with direct gauge adapter
  • (x1) 10,000 PSI (690 bar) pressure gauge with direct gauge adapter
  • JIC gauge port adapters with M16x2 test point (#4, #6, #8, #10, #12, #16)
  • ORFS gauge port adapters with M16x2 test point (#4, #6, #8, #10, #12, #16)
  • BSPP gauge port adapters with M16x2 test point (#4, #6, #8, #12, #16)
  • Komatsu (30° flare) gauge port adapters with M16x2 test point (M14, M18, M22, M24, M30)
  • JIS (30° flare) gauge port adapters with M16x2 test point (#4, #6, #8)
  • (x3) microbore hose assemblies with M16x2 female swivel ends, 48″
  • (x3) hose unions
  • Transition adapter kit so you can connect to the diagnostic nipples found on machines manufactured by Caterpillar, John Deere, Komatsu, Volvo, JCB, Genie, etc.
  • Caps and plug kit for JIC and ORFS connections
  • Caps and plug kit for Metric and International connections
  • Test point adapter kit for Metric and International connections
  • Test point adapter kit for O-ring Boss and NPT connections
  • Oil sampling kit with two mailable sample bottles
  • Carry-case with protective foam to keep everything organized and protected.
SKU: HC-TK4000-DIGI Categories: ,

Additional information

Weight 57.7 lbs
Dimensions 24 × 9 × 20 in
