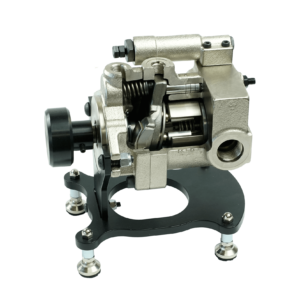

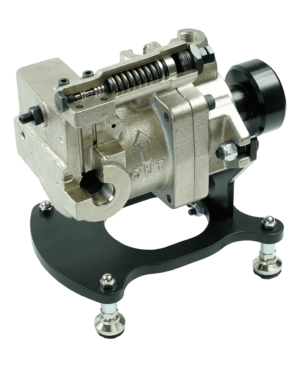

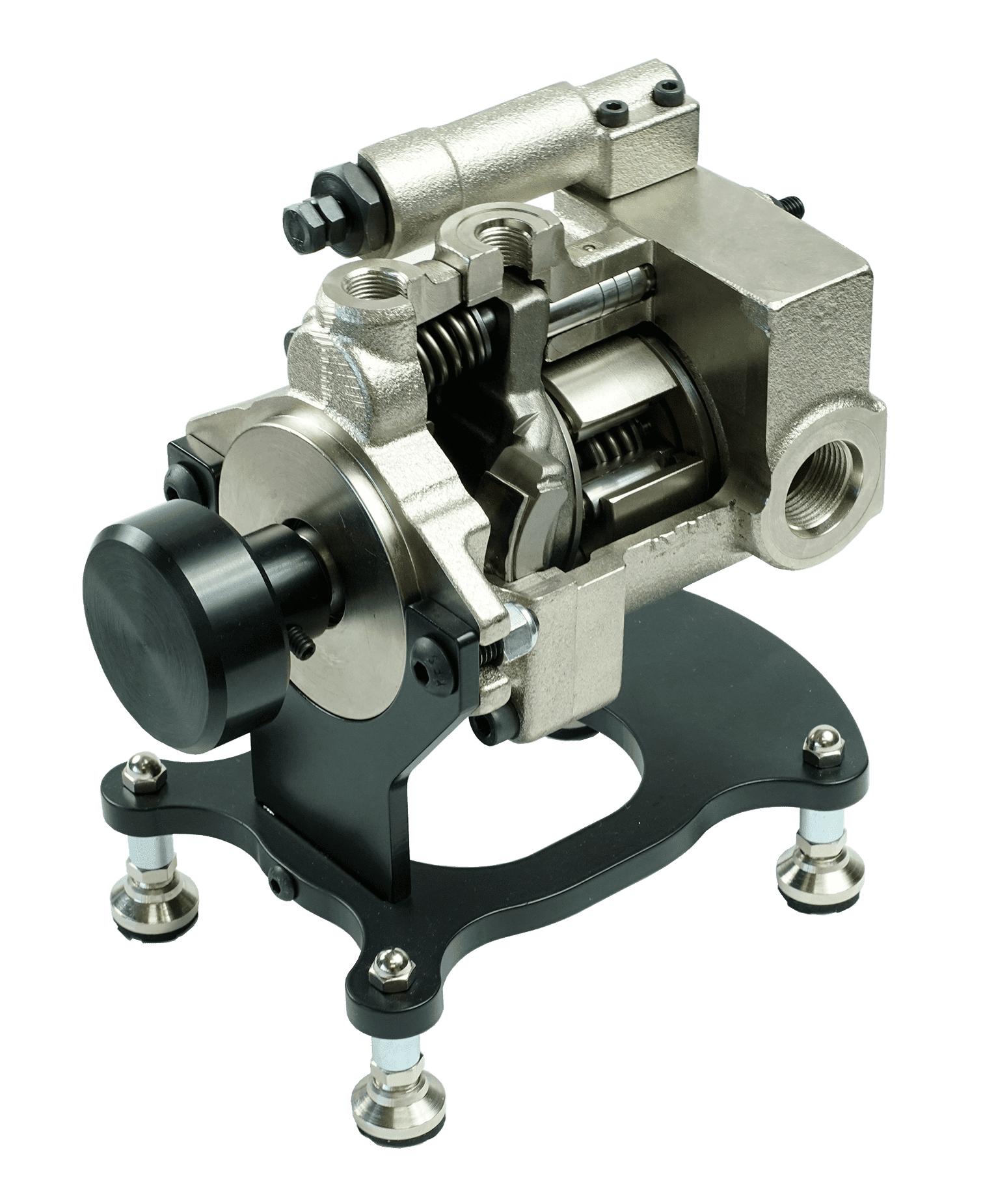

Axial Piston, Variable Volume, Pressure-Compensated Pump Cutaway


Used extensively in both industrial and mobile applications, the axial-piston is the leading design for variable-volume, pressure-compensated pumps. This cutaway model offers both tactile and visual educational resources that written materials cannot provide.

The cutaway features include:

  • Large knob on output shaft for easy rotation.
  • Cutaway of the barrel to expose pistons.
  • Cutaway of the housing to expose internal parts.
  • Cutaway of the pressure compensator to expose all internal passages.
  • Stand to display cutaway in a classroom or on an office desk.
SKU: HC-PCP-CM Category:
Print Friendly, PDF & Email

Additional information

Weight 18.7 lbs
Dimensions 8.5 × 6.5 × 8.875 in
