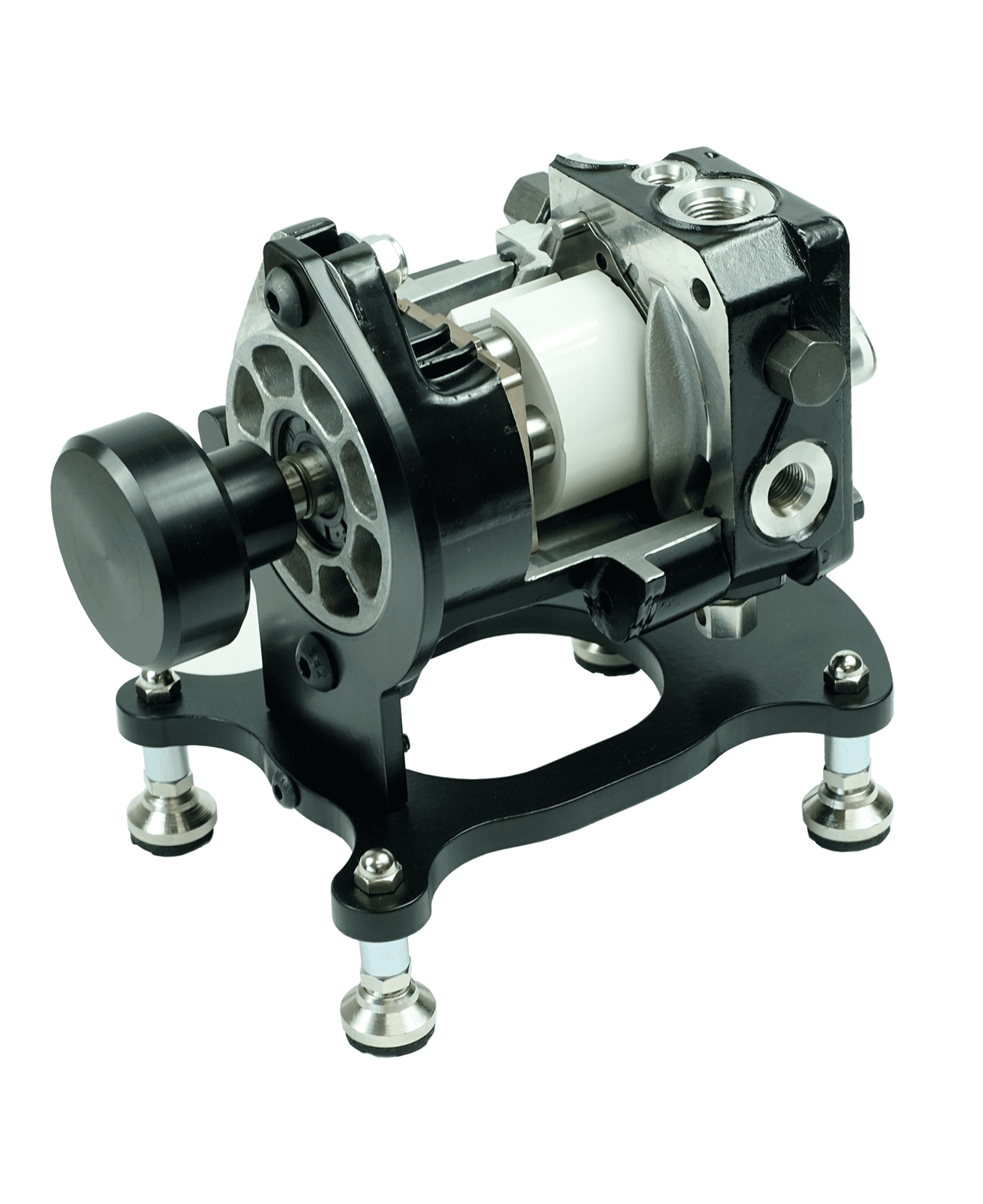

Over-Center, Variable Displacement Pump Cutaway

$2,059.25

Know the over-center, variable displacement pump inside and out with a lightweight and manageable cutaway model. The educational features of the pump allow students to learn in a safe environment without any distractions.

The cutaway features include:

  • Cutaway of the pump housing to expose the internal components.
  • Cutaway of the rear cover to expose the pressure relief valve.
  • Cutaway of the barrel to expose the pistons.
  • Cutaway of the charge pump housing to expose the charge pump and the charge pressure relief valve.
  • Moveable swashplate.
  • Large shaft on the output shaft for easy rotation.
  • Stand to display cutaway in a classroom or on an office desk.
SKU: HC-VDP-CM Category:
Print Friendly, PDF & Email

Additional information

Weight 9.6 lbs
Dimensions 7.25 × 6.5 × 6 in
