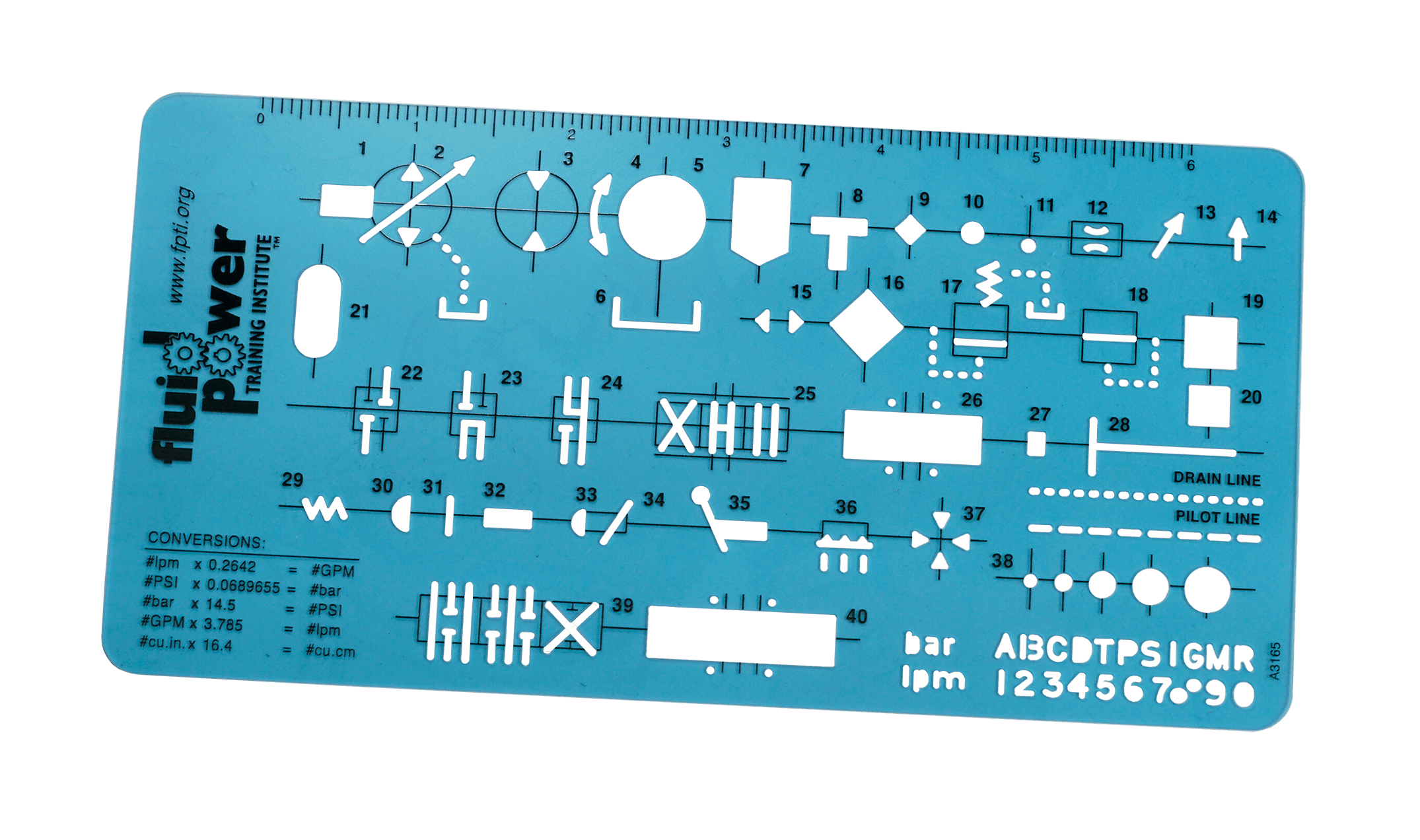

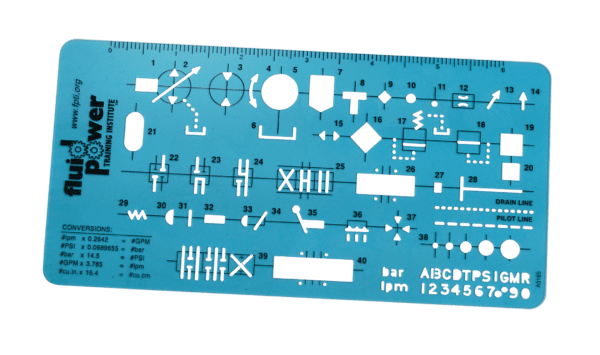

Fluid Power Symbol Drawing Templates


The fluid power symbol drawing template is ideal for students who are learning to read symbols and draw schematics. It is also useful for draftspersons and engineers who need to draw hydraulic schematics but do not draw enough to warrant a computer- based system.

The symbol template enables the user to draw accurate ANSI and ISO fluid power symbols. Along with the symbols, it also has handy numbers and letters, a measuring scale and conversion formulae printed directly on it.

Ask about our private label program. the fluid power symbol drawing template would make a terrific promotional item with your company’s name and logo printed directly on it.

SKU: HC-SDT-010 Category:
Print Friendly, PDF & Email

Additional information

Weight 0.04 lbs
Dimensions 7.5 × .07 × 3.75 in
