Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.75 × 4.5 × 4.5 in |
| Pressure | 3500 PSI (240 Bar) |
| Flow | 4 to 30 GPM (15 to 115 LPM) |
| Length | 7.16 inches (182 mm) |
| Port Thread | #12 ORB (SAE) |

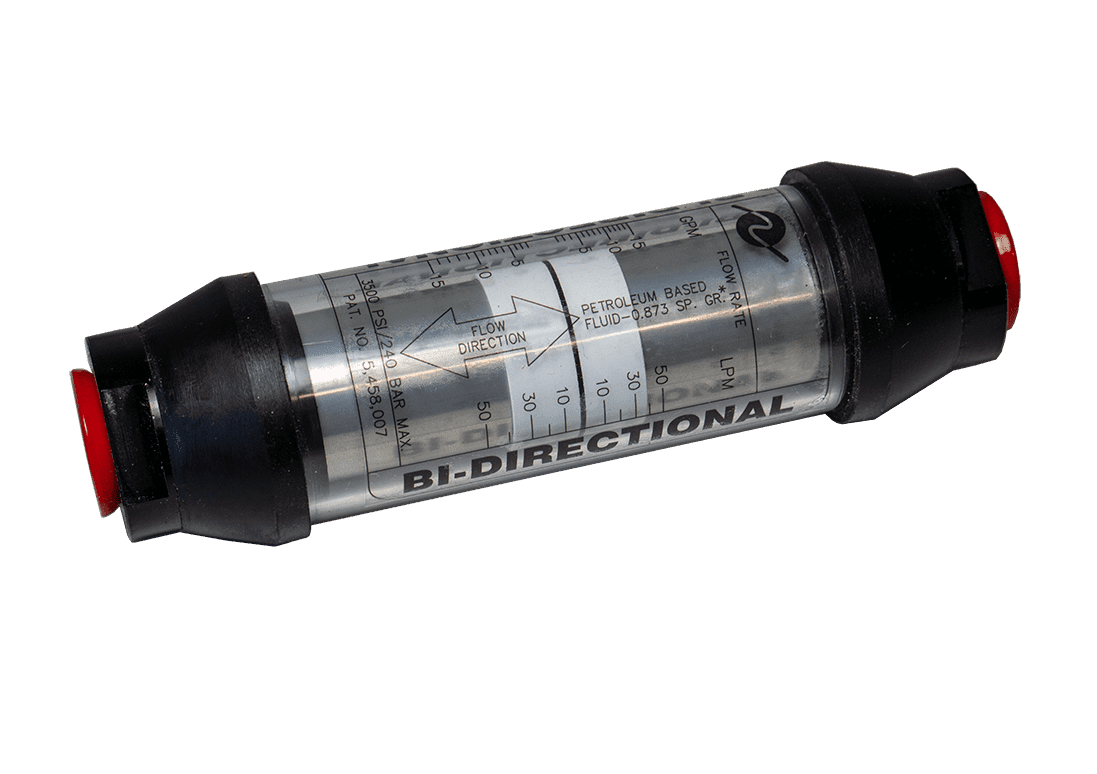

Bi-Directional Variable Area Flow Meter, 30 GPM, 3500 PSI
$534.38
Ideal for testing in bi-directional applications – hydraulic cylinder testing and hydrostatic transmissions.
- Flow: 4 – 30 GPM (15 – 115 Lpm).
- Pressure: 3500 PSI (240 bar).
- Ports: #12 SAE
- Rugged and Reliable – These meters are constructed with all metal pressure vessels that allow safe & permanent installation.
- Bi-Directional – Measures bi-directional flow measurement for liquids.
- Use these flow meters to set up, adjust, and test hydraulic pumps, motors, cylinders, and more!
- The only way to test a pump and motors safely and effectively is to use a flow meter.
Specifications:
- Materials: Anodized aluminum casing and end ports with stainless steel internals.
- Pressure Seals: Buna-N®
- Threads: SAE J1926/1
- Temperature Range: -20 to +240 °F (-29 to +116 °C)
- Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max.
- Accuracy: ±4% of full scale.
- Repeatability: ±1%
- Calibration: 0.873 Specific Gravity – For use with hydraulic oil.
- Viscosity: Up to 110 cSt.
Available on backorder
