Male ORB (#6) x Female NPT (1/4″)

$2.44

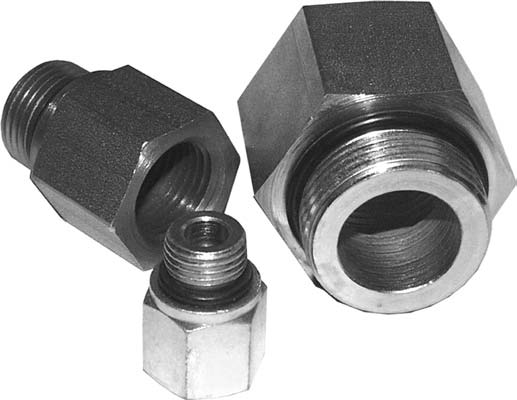

Male ORB x Female NPT Adapter.

  • Size: #6 (9/16-18) ORB x #4 (1/4-18) NPT
  • Pressure rating: 6000 PSI (414 bar)
  • 4:1 Safety Factor

All of the flow meters we sell come with ORB (SAE) ports. We offer a variety of adapters to assist you in adapting your flow meter or flow meter test kit to any connection.

Don’t see the adapter or size you need? GIVE US A CALL!

SKU: HC-MOFP-6-4 Categories: ,

Additional information

Weight 0.05 lbs
Dimensions 1.5 × 1 × 1 in
Type

Male O-ring x Female Pipe (SAE to Female NPT)

Working Pressure

Up to 5000 PSI
(Up to 345 Bar)

Thread Size (1)

#6 ORB (SAE)

Thread Size (2)

1/4" NPT
