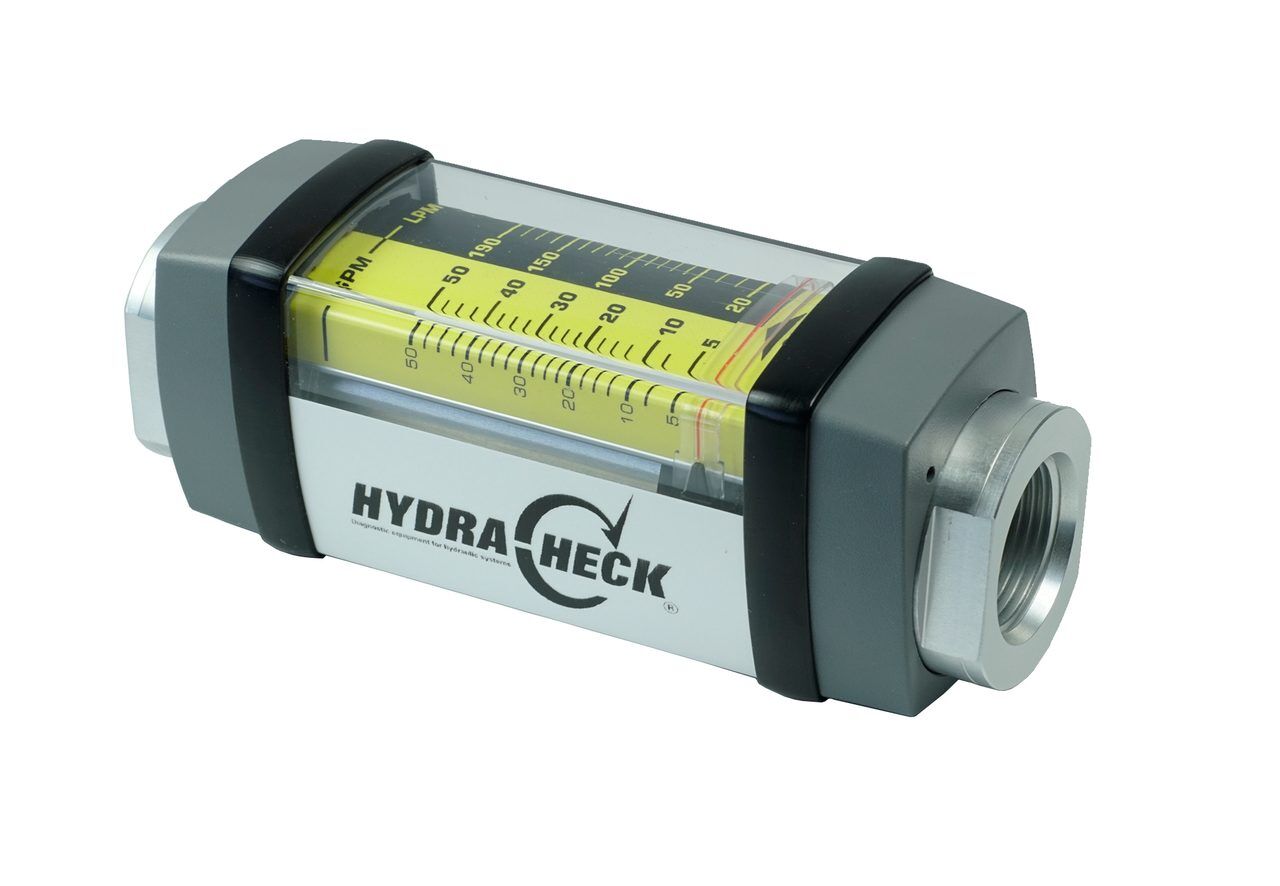

Inline Flow Meter, 100 GPM, 3500 PSI

$951.00

Ideal for monitoring pump performance and media flows in hydraulic systems.

  • 10 – 100 GPM (50 – 380 Lpm).
  • Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders and more!
  • The only way to test a pump and motors safely and effectively is to use a flow meter.

Specifications:

  • Materials: 2024 – T351 Anodized aluminum body, piston and cone.
  • Pressure Seals: Viton®
  • Threads: SAE J1926/1
  • Temperature Range: -20 to +240 °F (-29 to +116 °C)
  • Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
  • Accuracy: ±2% of full scale
  • Repeatability: ±1%
  • Calibration: 0.876 Specific Gravity – For use with hydraulic oil
SKU: HC-800A-100 Categories: ,
Print Friendly, PDF & Email

Additional information

Weight 8.10625 lbs
Dimensions 13.5 × 5.25 × 4.75 in
Pressure

3500 PSI
(241 Bar)

Flow

10 to 100 GPM
(50 to 380 LPM)

Length

12.2 inches (310 mm)

Port Thread

#20 ORB (SAE)
