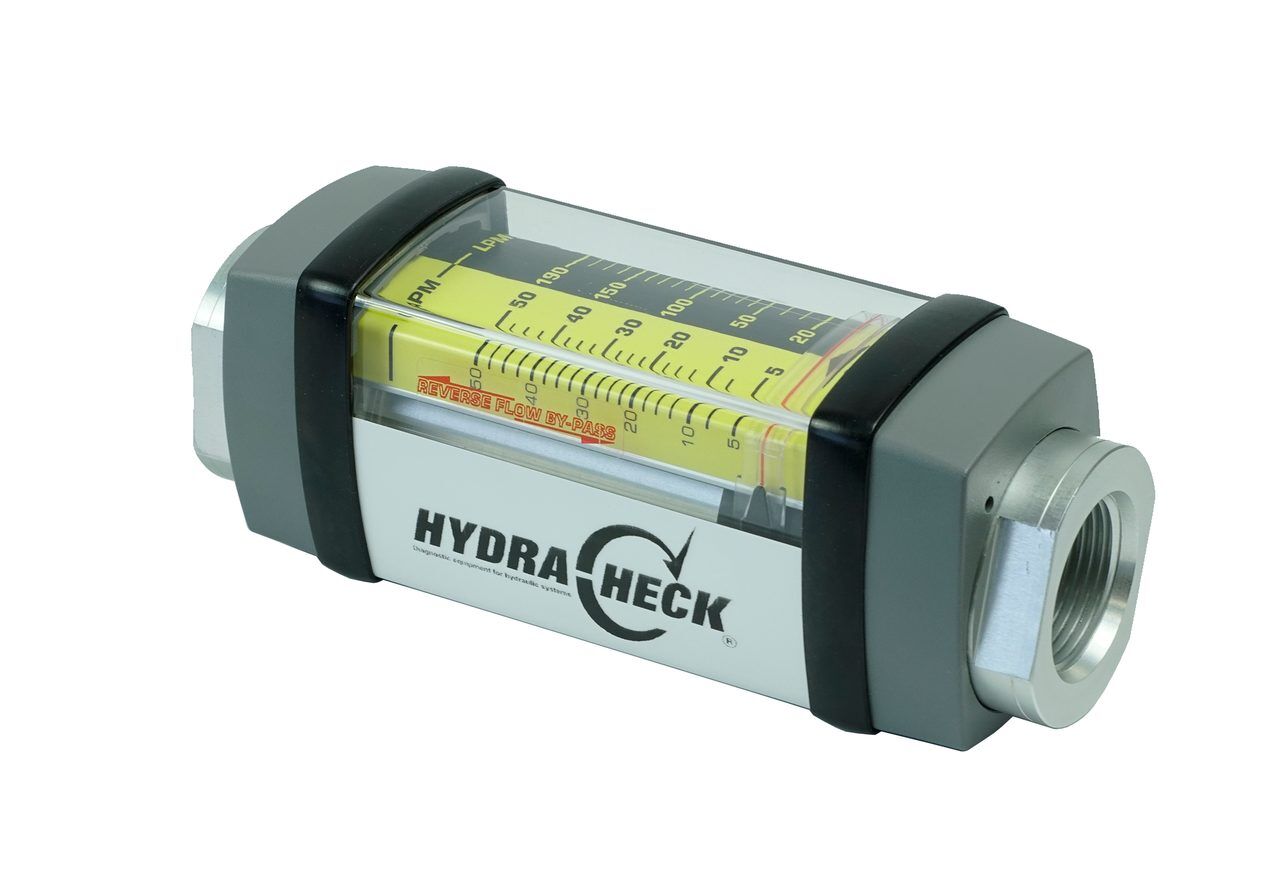

Inline Flow Meter With Reverse Flow, 15 GPM, 3500 PSI
Ideal for monitoring pump performance and media flows in hydraulic systems.
Why choose a reverse flow, flow meter?
Generally, one-way flow, inline flow meters have an integral check valve assembly that prevents the oil from flowing in reverse. This feature is safe when testing hydraulic pumps, but creates a potential hazard when testing double-acting cylinders and reversible motors.
Due to area difference, when flow is restricted at the rod-end of a double-acting, single-rod cylinder, the forces can cause the pressure to increase to a hazardous level – as much as two times the pressure relief valve setting!
1 – 15 GPM (4 – 56 Lpm).
Use these flow meters to setup, adjust and test hydraulic pumps, motors, cylinders, and more!
The only way to test a pump and motors safely and effectively is to use a flow meter.
Materials: 2024 – T351 Anodized aluminum body, piston and cone.
Pressure Seals: Viton®
Threads: SAE J1926/1
Temperature Range: -20 to +240 °F (-29 to +116 °C)
Pressure Rating:Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
Accuracy: ±2% of full scale
Calibration: 0.876 Specific Gravity – For use with hydraulic oil
RECOMMENDATION: If you are going to purchase one flow meter for testing all your hydraulic components, a reverse flow, inline flow meter would be the best choice.
