Flow Meter Test Kit, 50 GPM, 3500 PSI (241 bar)

$783.00

To test a hydraulic pump for leakage, you must consider three things: convenience, safety, and accuracy. This portable test kit will give you the same result as testing your pump on a state-of-the-art test bench at a fraction of the cost. The unit comes equipped with a load cell and pressure gauge which allows the user to load the pump in a safe manner while running tests. The variable area flow meter on the unit provides a quick, visual flow indication on an easy-to-read linear scale to confirm that flow systems are operating properly. The flow meter on the unit offers enhanced reliability and minimal maintenance over the course of a long life expectancy. All items on the test kits are of the highest quality.

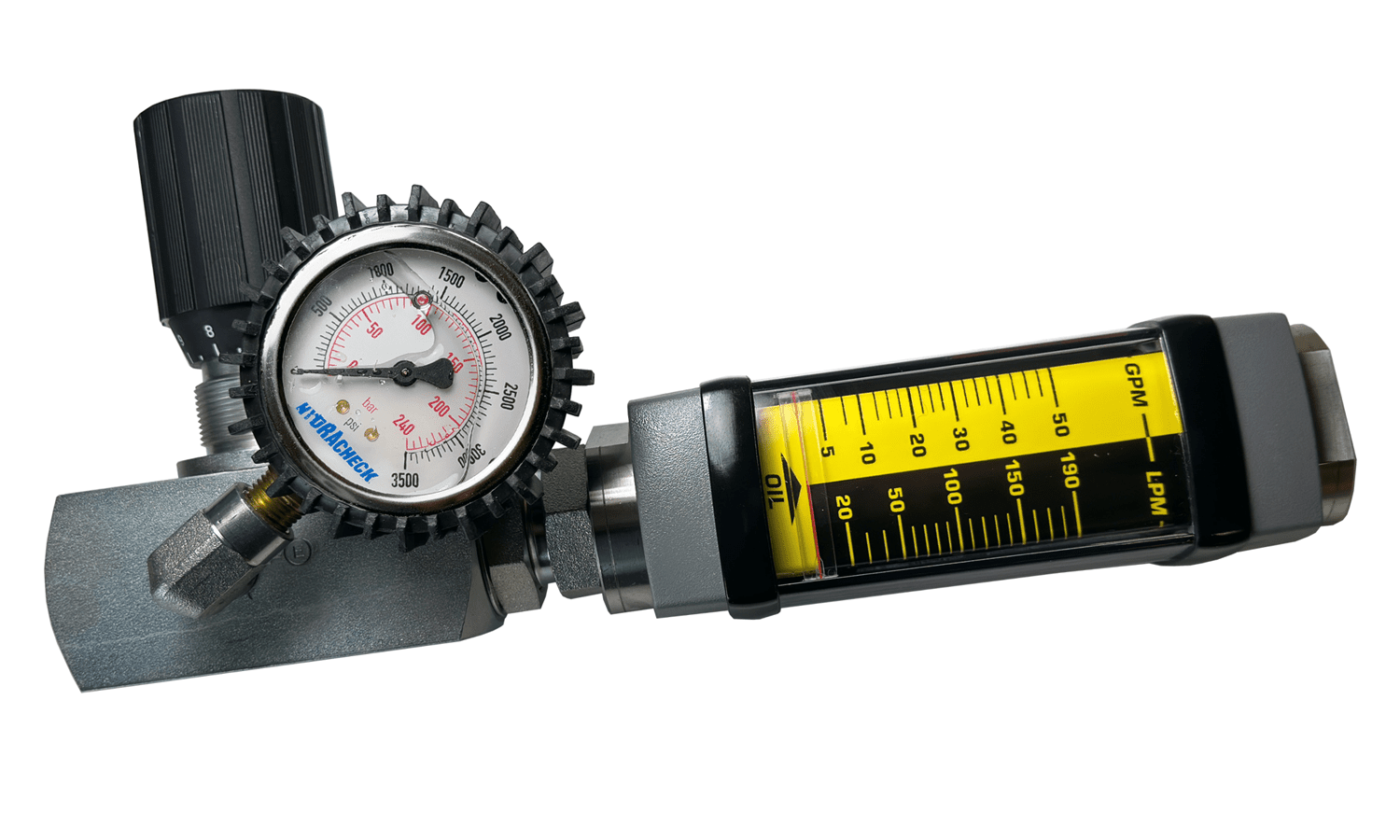

The unit comes complete with an adjustable load cell, glycerine-filled pressure gauge with rubber boot, and inline flow meter; ready to load-test your hydraulic pumps, motors, and other hydraulic components safely and accurately.

  • Affordable
  • Light-weight
  • Versatile

Includes:

  • Inline flow meter – 5 to 50 GPM (20 to 192 LPM).
  • An adjustable load valve comes equipped with a 3500 PSI (241 bar) glycerine-filled pressure gauge with a protective rubber boot.

Specifications:

  • Needle Valve Materials: Carbon steel body, zinc plated
  • Flow Meter Materials: 2024 – T351 Anodized aluminum body, piston, and cone.
  • Ports: #16 ORB (1-5/16″ SAE)
  • Pressure Seals: Viton®
  • Threads: SAE J1926/1
  • Temperature Range: 14 to +212 °F (-10 to +100 °C)
  • Pressure Rating: Aluminum Operating: 3,500 psi/241 bar max. with a 3:1 safety factor.
  • Accuracy: ±2% of full-scale
  • Repeatability: ±1%
  • Calibration: 0.876 Specific Gravity – For use with hydraulic oil
SKU: HC-TK760A-050 Categories: ,

Additional information

Weight 7.8 lbs
Dimensions 13 × 4 × 6 in
Type

3500 PSI (241 bar) Flow Meter Test Kit

Pressure

3500 PSI
(241 Bar)

Flow

5 to 50 GPM
(20 to 190 LPM)

Port Thread

#16 ORB (SAE)
