Flow Meter Test Kit with Built-in Safety

$1,604.00 – $2,698.00

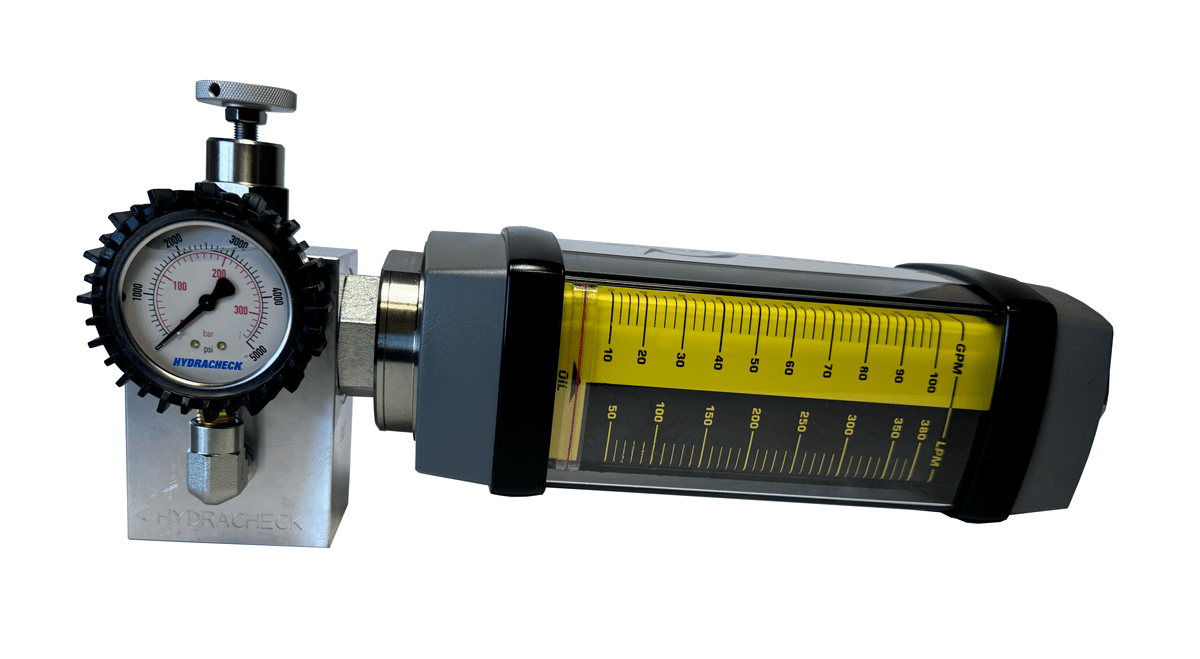

HydraCheck Flow Meter Test Kit with Built-in Safety

The HydraCheck hydraulic flow meter test kit is the ideal tool for accurate testing and troubleshooting of hydraulic pumps and systems. Designed for safety and precision, this hydraulic diagnostic tool features an industry-first load valve with dual gauge ports, making it easy to test load-sensing pumps without additional fittings. For added convenience, the pressure gauge can be installed on either side of the valve, giving operators maximum flexibility.

Unlike conventional loading valves, HydraCheck’s loading valve includes a built-in safety relief valve – an essential feature when testing fixed-displacement pumps. Standard load valves can create dangerous conditions if the system’s main pressure relief valve is located downstream, often inside the directional control valve housing. Installing any valve that can completely block flow between a fixed-displacement pump, and its main relief valve poses a serious safety risk.

HydraCheck’s innovative design eliminates this hazard. The integrated safety relief valve ensures safe, reliable testing by preventing overpressure and protecting both the operator and the hydraulic system. This makes HydraCheck’s flow meter test kit the trusted solution for testing fixed-displacement pumps safely and effectively.

Includes:

Inline flow meter – Flows up to 150 GPM (560 Lpm)
Adjustable loading valve with built in safety and load sensing port
Comes equipped with a 3500 PSI (241 bar) or 5000 PSI (345 bar) glycerin-filled pressure gauge with protective rubber boot.
