Additional information
| Weight | 25.2 lbs |
|---|---|
| Dimensions | 20 × 5.5 × 9 in |
| Pressure | 3500 PSI (241 Bar) |
| Flow | 10 to 100 GPM (50 to 380 LPM) |
| Port Thread | #20 ORB (SAE) |
Flow Meter Test Kit with Built-in Safety, 100 GPM, 3500 PSI
$2,698.00

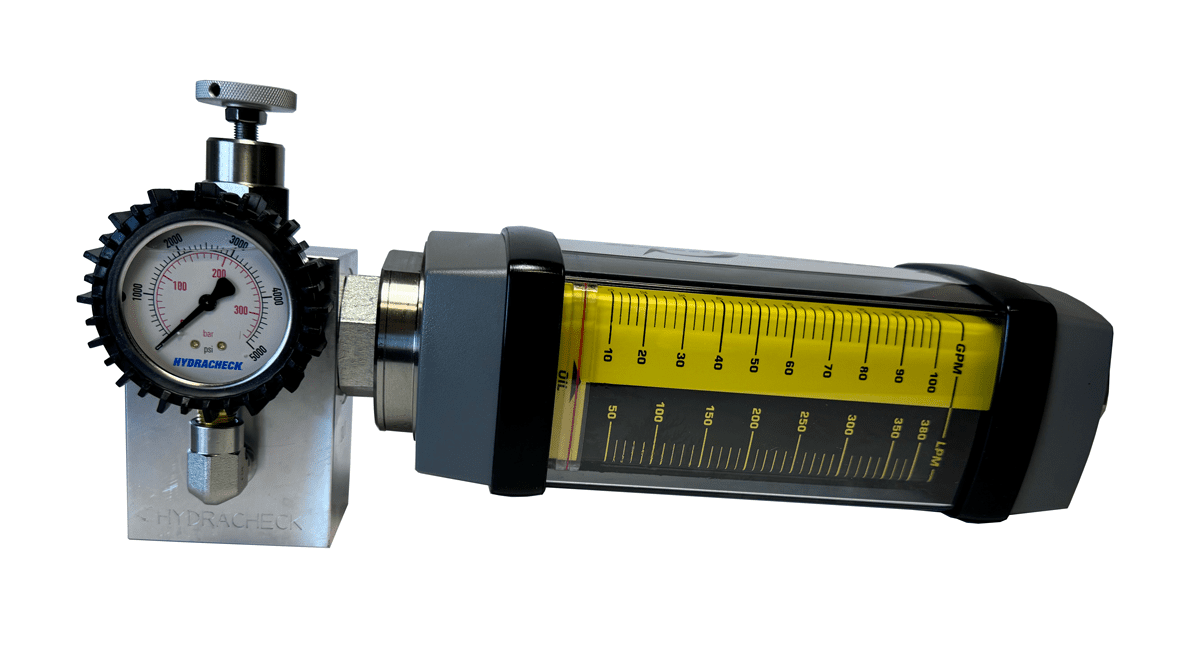

HydraCheck Flow Meter Test Kit with Safety Relief Valve
The HydraCheck hydraulic flow meter test kit is the ideal tool for accurate testing and troubleshooting of hydraulic pumps and systems. Designed for safety and precision, this hydraulic diagnostic tool features an industry-first load valve with dual gauge ports, making it easy to test load-sensing pumps without additional fittings. For added convenience, the pressure gauge can be installed on either side of the valve, giving operators maximum flexibility.
Unlike conventional loading valves, HydraCheck’s loading valve includes a built-in safety relief valve – an essential feature when testing fixed-displacement pumps. Standard load valves can create dangerous conditions if the system’s main pressure relief valve is located downstream, often inside the directional control valve housing. Installing any valve that can completely block flow between a fixed-displacement pump, and its main relief valve poses a serious safety risk.
HydraCheck’s innovative design eliminates this hazard. The integrated safety relief valve ensures safe, reliable testing by preventing overpressure and protecting both the operator and the hydraulic system. This makes HydraCheck’s flow meter test kit the trusted solution for testing fixed-displacement pumps safely and effectively.
Includes:
- Inline flow meter – 10-100 GPM (380 Lpm)
- Adjustable loading valve with built in safety and load sensing port
- Comes equipped with a 3500 PSI (241 bar) glycerin-filled pressure gauge with protective rubber boot.
Specifications:
- Loading Valve Materials: 7075 Aluminum
- Flow Meter Materials: 2024 – T351 Anodized aluminum body, piston and cone
- Threads: SAE J1926/1
- Media Temperature Range: -4 to +140 °F (-10 to +100 °C)
- Pressure Rating: 5,000 psi/345 bar max. with a 3:1 safety factor
- Pressure Accuracy: ±1.6% of full scale
- Flow Accuracy: ±2% of full scale
- Repeatability: ±1%
- Calibration: 0.876 Specific Gravity – For use with hydraulic oil
