Universal Flow Meter Test Kit, 5000 PSI (Reverse Flow Capable)

$5,746.00

To meet the needs of maintenance professionals who service a wide variety of hydraulic machinery, we took our most popular flow meters in each flow size and combined them to make this extremely versatile flow meter test kit that covers a wide variety of flows – from 1.0 GPM to 100 GPM (3.8 Lpm to 568 Lpm).

Each flow meter is equipped with an adjustable load test cell so you can generate pressure when it is not safe or practical to do while the machine is operating. Each unit is also equipped with a pressure test connector so you can quickly and easily connect the pressure gauge (included in the kit) to any flow meter without using a wrench. This feature allows you to monitor system pressure while flow testing a component.

Also included in the kit is a compact infrared thermometer so you can monitor temperature during a test. You get all the components you need to flow test hydraulic systems and components safely and effectively, in a compact, rugged, dust-proof carry-case.

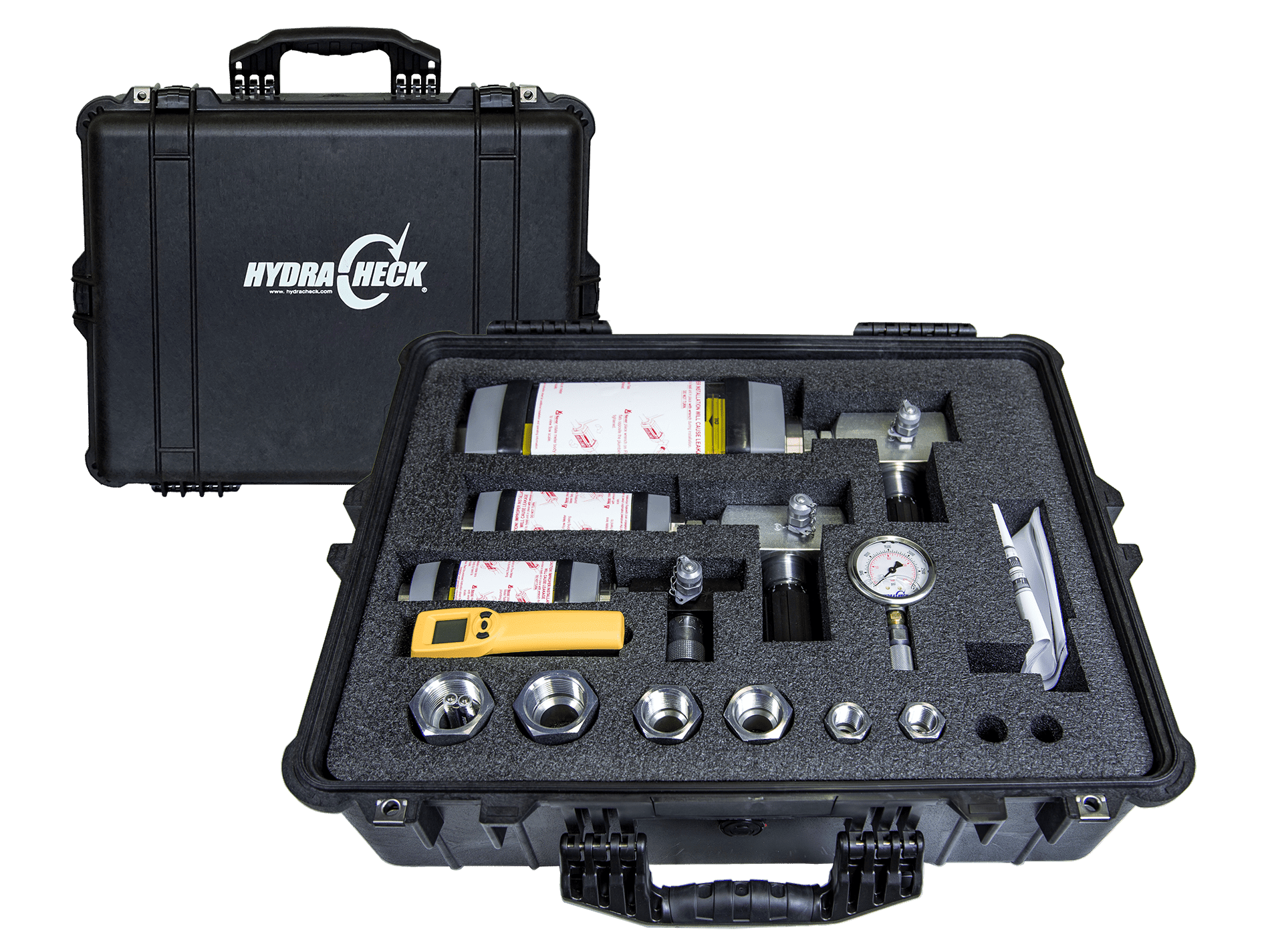

HC-FMK3000SRF test kit includes:

  • 1.0 to 15 GPM (5000 PSI [345 bar]), reverse-flow, flow meter with #8 SAE ports, adjustable load test cell, and pressure test connector.
  • 5.0 to 50 GPM (5000 PSI [345 bar]), reverse-flow, flow meter with #16 SAE ports, adjustable load test cell, and pressure test connector.
  • 10 to 100 GPM (5000 PSI [345 bar]), reverse-flow, flow meter with #20 SAE ports, adjustable load test cell, and pressure test connector.
  • SAE to NPT adaptors included.
  • 0 to 5000 PSI (345 bar), glycerine-filled pressure gauge with direct gauge adaptor (adapts to pressure test connector on flow meter).
  • Compact, hand-held, infrared laser thermometer.
  • Compact, rugged, dust-proof, water-tight carry-case.

NOTE: Substitute the 100 GPM (379 Lpm) flow meter for a 150 GPM (568 Lpm) flow meter at no extra charge.

SKU: HC-FMK3000SRF Categories: , ,
Print Friendly, PDF & Email

Additional information

Weight 55 lbs
Dimensions 25 × 9 × 20 in
Maximum Operating Pressure

5000 PSI
(345 Bar)

Flow Range

1.0 to 100 GPM
(3.8 to 568 LPM)
