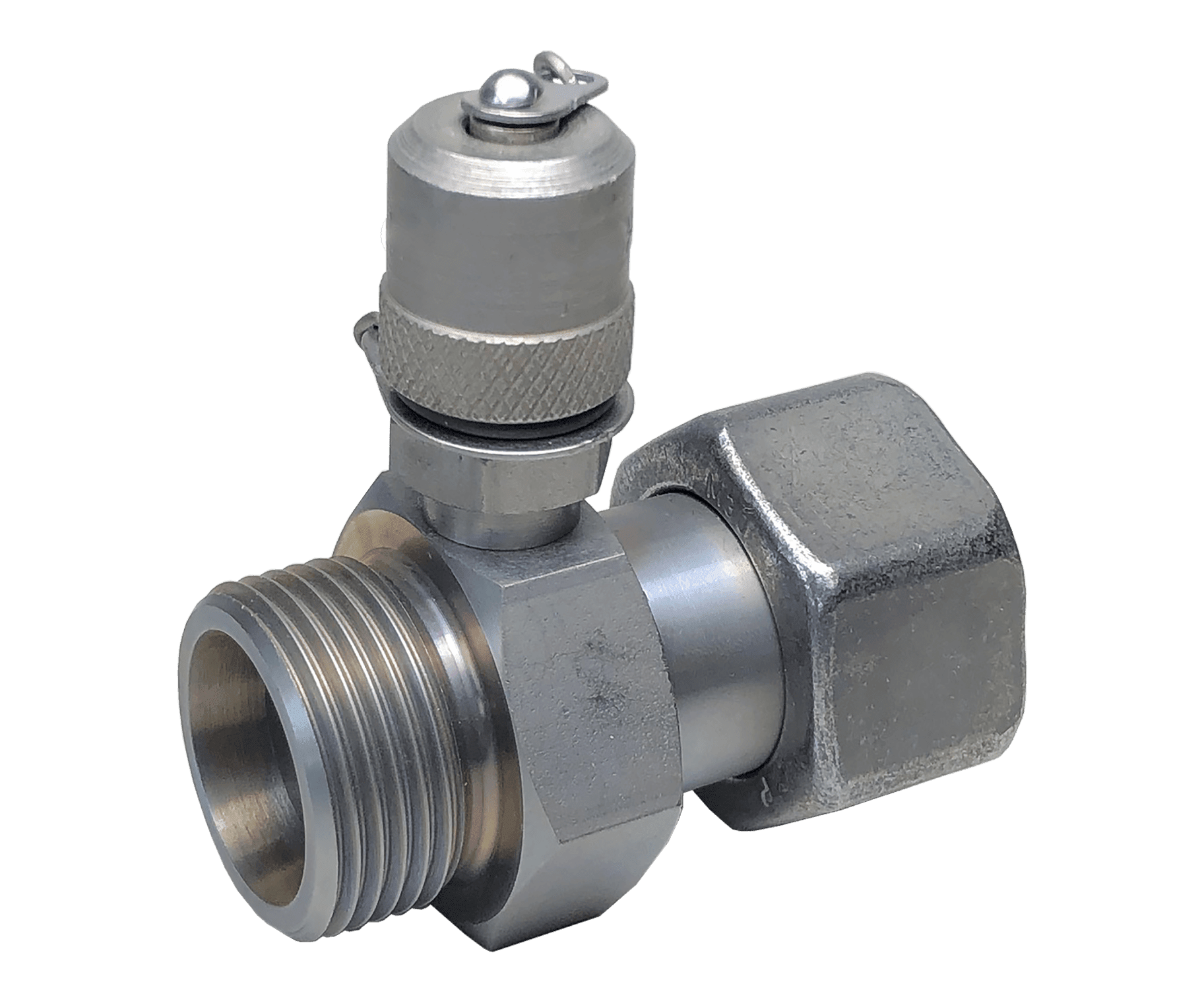

DIN Male Metric x DIN Female Metric Gauge Port Adapter with M16x2 Test Point, M30x2 (S Series)


The DIN male x DIN female swivel (DKO 24° sealing cone with O-Ring) gauge port adapter with an M16x2 (Minimess/Test 20) test point for pressure checking. Allows you to connect to M30x2 DIN (20S) connections. Gauge port adapters give you the ability to put test points in your hydraulic system to make pressure checking easier and more convenient.

Suitable for an OEM build or retrofitting to existing hydraulic systems.


  • Connection: 20S, M30x2 (DIN 2353)
  • Material: Steel
  • Maximum Working Pressure: 5801 PSI (400 bar)
  • Temperature Rating: -4 to +392°F (-20 to +200°C)
  • Media: Suitable for hydraulic oils and other mineral-based fluids
SKU: HC-DKOMF-20S-T20 Category:
Print Friendly, PDF & Email

Additional information

Weight .8 lbs
Dimensions 2.25 × 1.5 × 2.75 in



Heavy (S)

Thread Type


Gauge Port Connection

M16x2 Test Point


5801 PSI (400 Bar)
