Additional information
| Weight | 0.9 lbs |
|---|---|
| Dimensions | 3.5 × 1.5 × 1.5 in |
| Nominal Size | 16 |
| Tube OD | 1 in |
| Thread Size | 1 5/16-12 |
| Gauge Port Type | NPT |
| Port Size | 1/4-18 |
| Pressure Rating | 5000 PSI (345 Bar) |

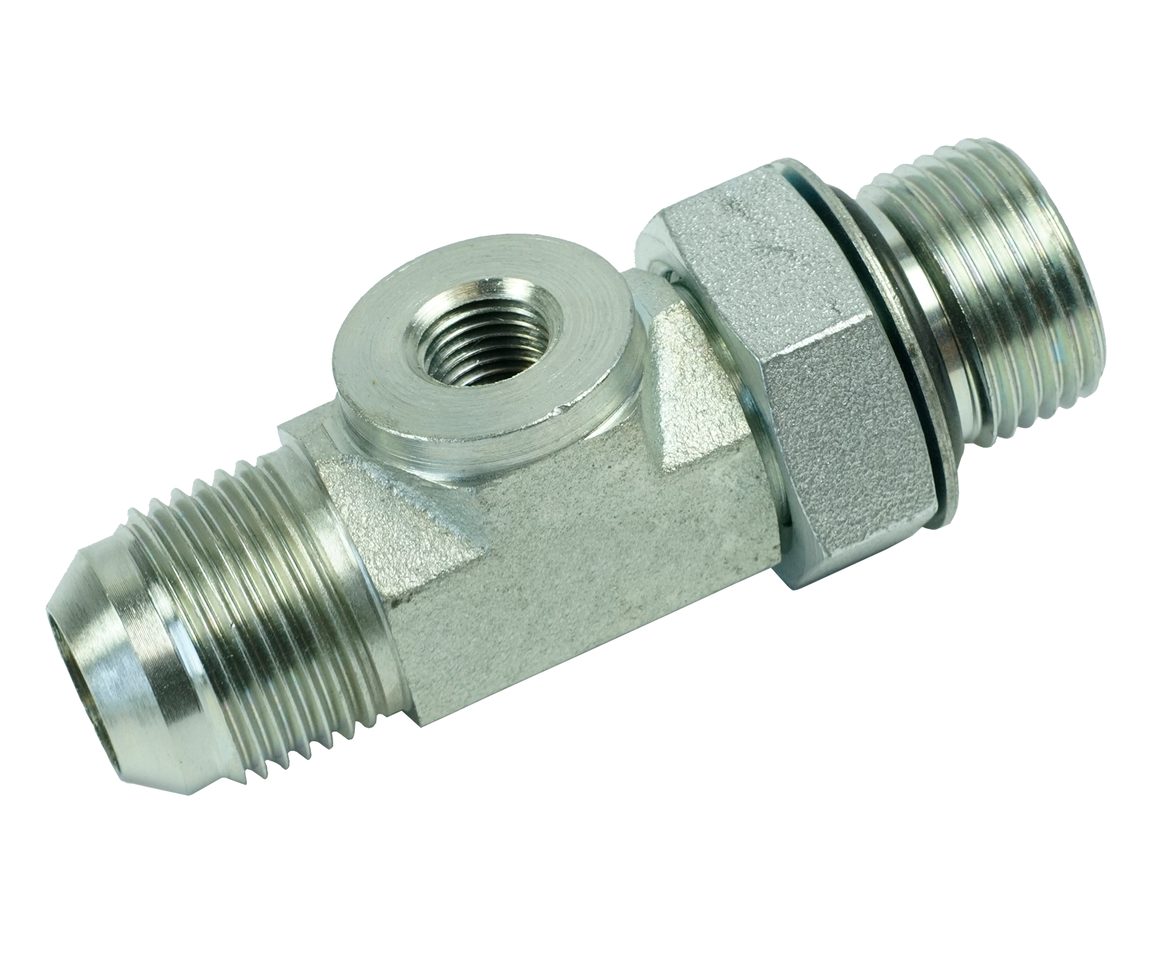

JIC Male x ORB Male Gauge Port Adapter with 1/4″ NPT Gauge Port, #16 (1″)
$48.20
JIC male x ORB male gauge port adapter.
Specifications:
- Size: #16 (1 5/16-12)
- Gauge Port: 1/4″ NPT
- Pressure: 5,000 PSI (345 bar)
- 4:1 safety factor
Note: Fittings may differ from picture
