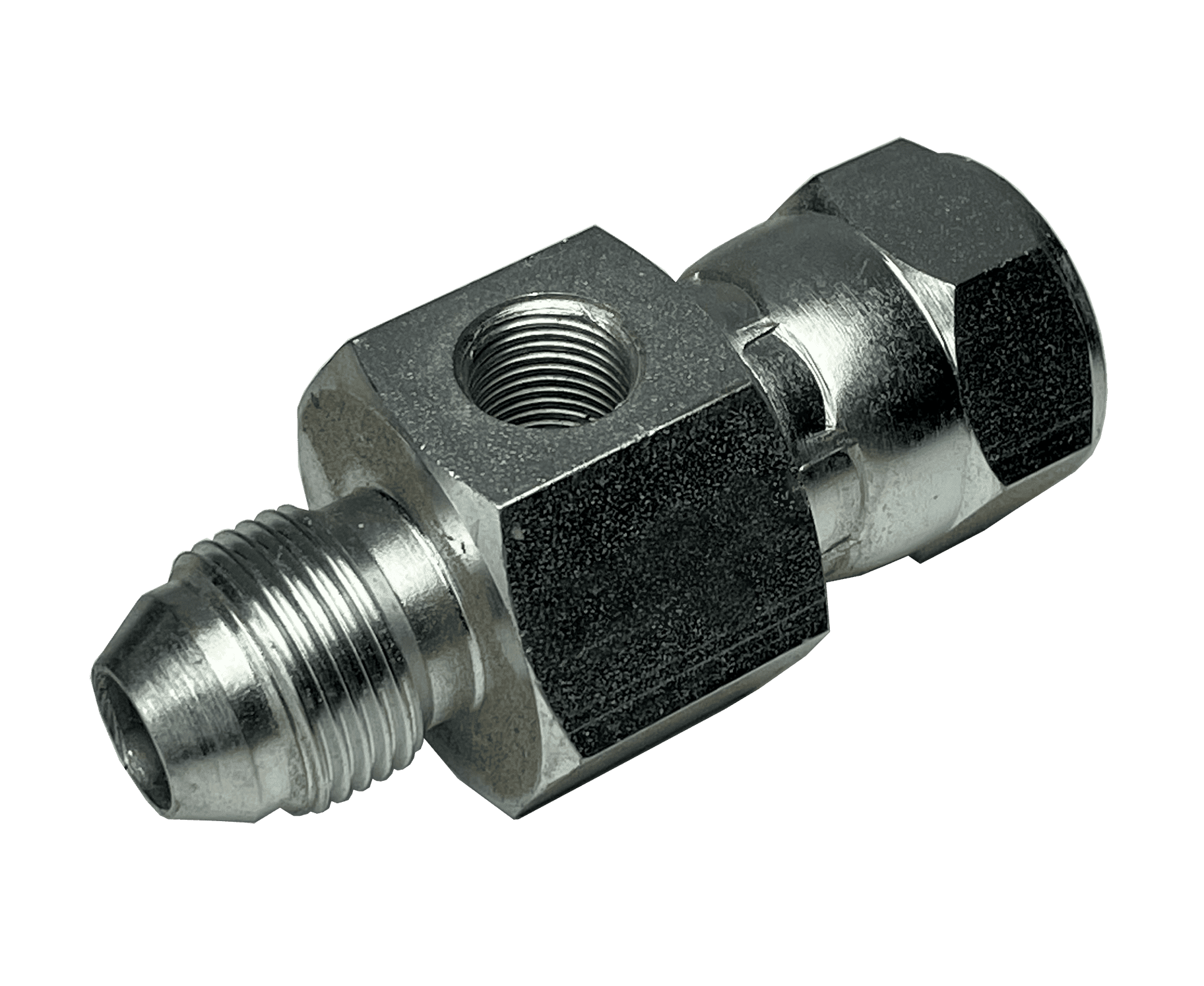

JIS Male x JIS Female Gauge Port Adapter

JIS Male x JIS Female Swivel Adapters with Gauge Port

$66.20 – $67.45

JIS male x JIS female gauge port adapter. JIS connections have a 30° flare.

Gauge port adapters allow the user to install a pressure gauge, diagnostic nipple, or sensor inline in a hydraulic system. All units are made from zinc/nickel-plated carbon steel which offers reliability and a long life span. The fittings are rated up to 5000 PSI (276 Bar) depending on configuration and size.

Gauge port adapters offer the user unique advantages over conventional connectors:

  • No more drilling and tapping standard fittings
  • Safety – Connectors have the proper wall thickness to facilitate solid, safe connections
  • Easy to install
  • Aesthetic – Blends into your system without the bulk of multiple connectors.
  • Economical

Specifications:

  • Sizes: #4, #6, and #8
  • Standard: JIS B8363 (Japanese Industrial Standard)
  • Gauge Ports: G1/8 or M10x1 (Depending on the fitting)
  • Pressure: Up to 5,000 PSI (276 bar)

Note: Fittings may differ from picture
