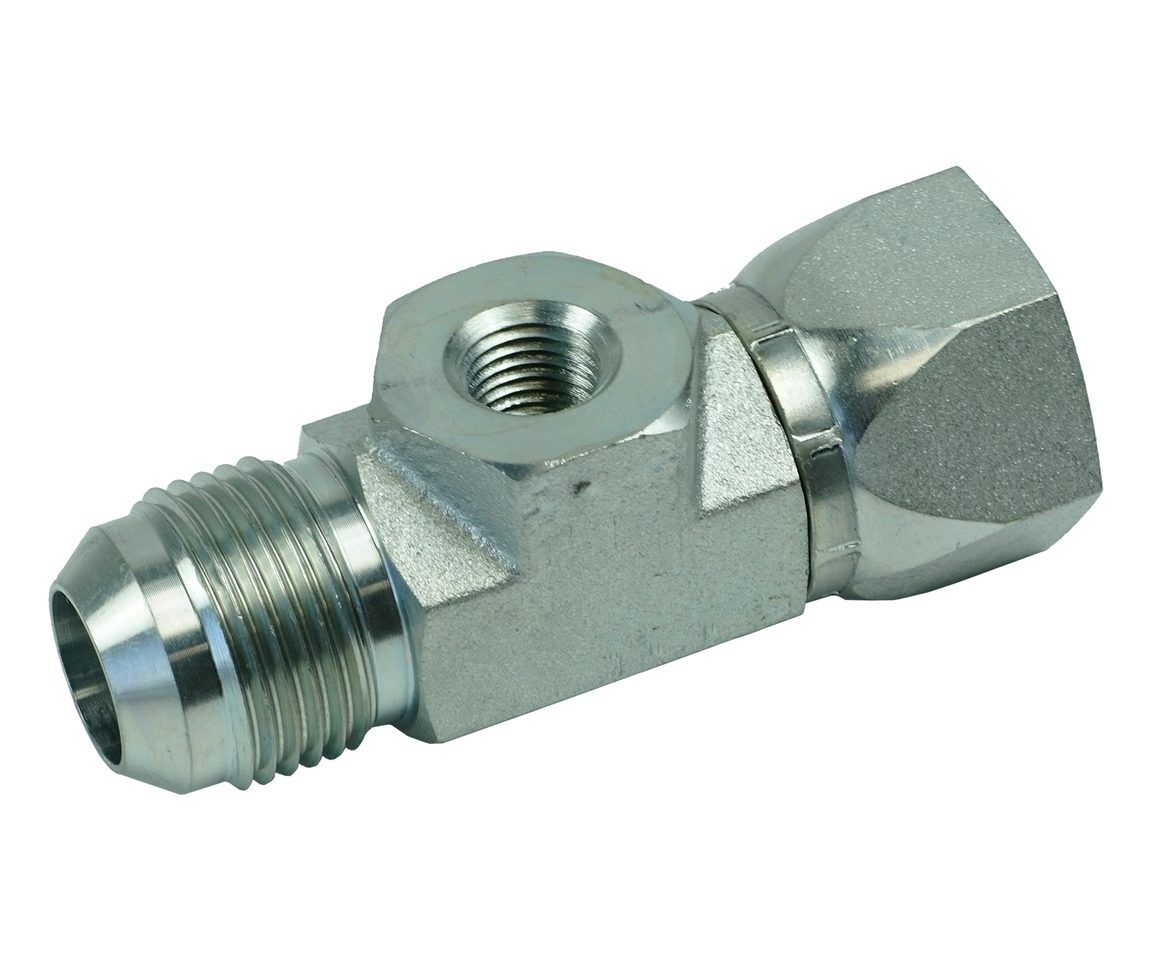

Male JIC x Female JIC Gauge Port Adapter with 1/4″ NPT Gauge Port, #10 (5/8″)

$27.82

Male JIC x female swivel JIC gauge port adapter.

Specifications:

  • Size: #10 (5/8″)
  • Gauge Port: 1/4-18 NPT
  • Pressure: 5,000 PSI (345 bar)
  • 4:1 safety factor

Note: Fittings may differ from picture

SKU: HC-JFM-10-4P Category:
Print Friendly, PDF & Email

Additional information

Weight 0.375 lbs
Dimensions 4.25 × 1.25 × 1.25 in
Nominal Size

10

Tube OD

5/8 in

Thread Size

7/8-14

Gauge Port Type

NPT

Port Size

1/4-18

Pressure Rating

5000 PSI (345 Bar)
