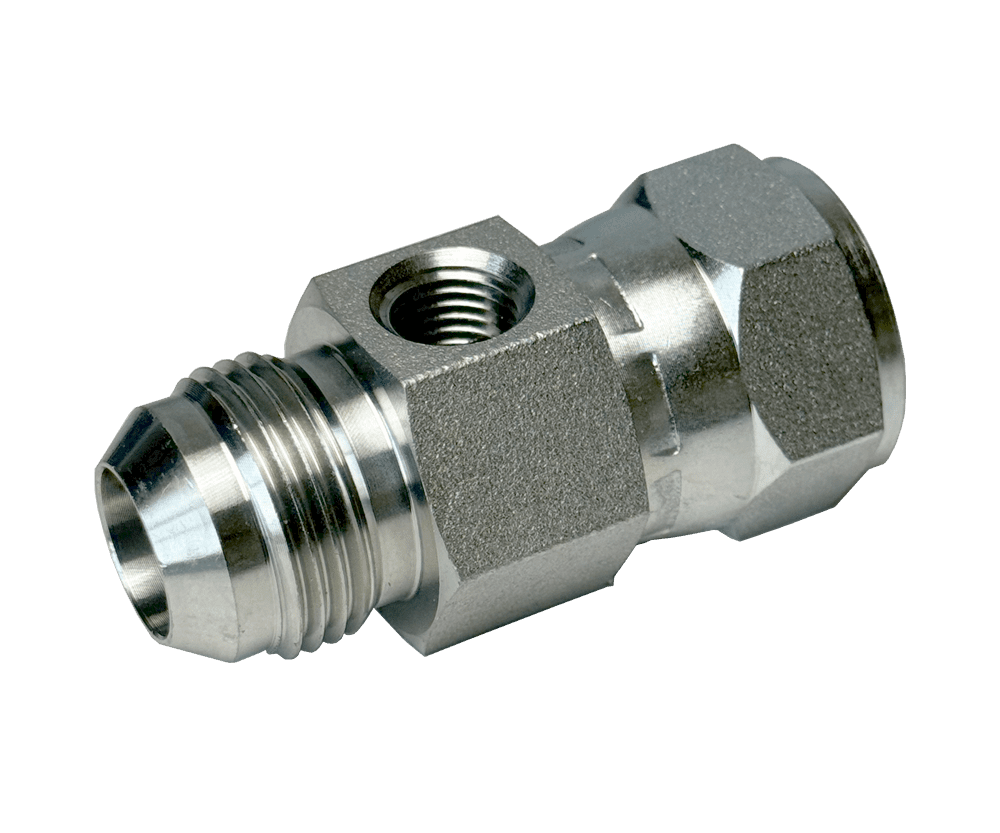

Male JIC x Female JIC Gauge Port Adapter with 1/8″ NPT Gauge Port, #16 (1″)

$32.60

Male JIC x female swivel JIC gauge port adapter.

Specifications:

  • Size: #16 (1″)
  • Gauge Port: 1/8-27 NPT
  • Pressure: 4,000 PSI (275 bar)
  • 4:1 safety factor

Note: Fittings may differ from picture

SKU: HC-JFM-16-2P Category:
Print Friendly, PDF & Email

Additional information

Weight 0.99 lbs
Dimensions 3 × 2.2 × 2.2 in
Nominal Size

16

Tube OD

1 in

Thread Size

1 5/16-12

Gauge Port Type

NPT

Port Size

1/8-27

Pressure Rating

4000 PSI (275 Bar)
