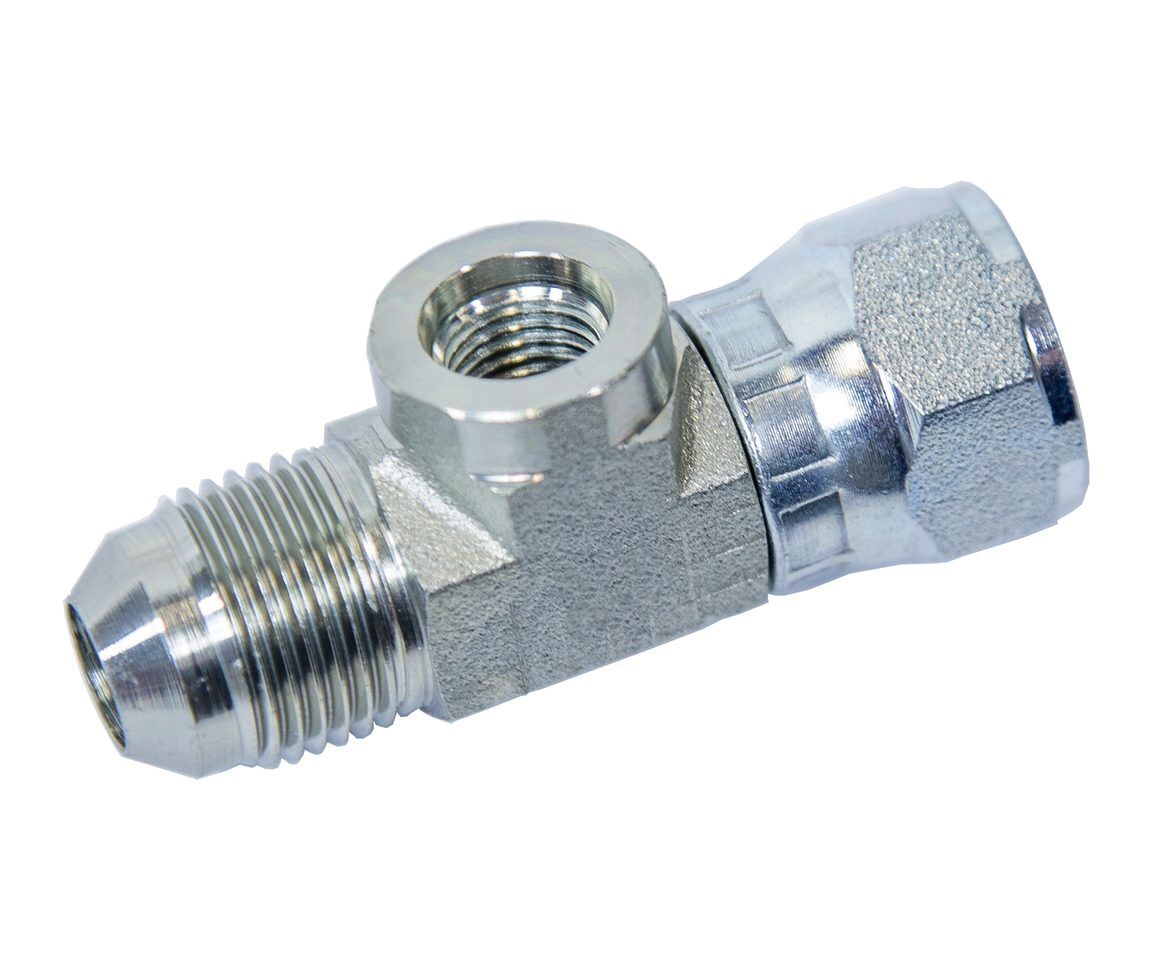

Male JIC x Female JIC Gauge Port Adapter with 7/16″ ORB Gauge Port, #20 (1-1/4″)

$52.13

Male JIC x female swivel JIC gauge port adapter.

Specifications:

  • Size: #20 (1-1/4″)
  • Gauge Port: 7/16-20 SAE
  • Pressure: 3,000 PSI (207 bar)
  • 4:1 safety factor

Note: Fittings may differ from picture

SKU: HC-JFM-20-4 Category:
Print Friendly, PDF & Email

Additional information

Weight 1.69 lbs
Dimensions 4 × 2.25 × 2.25 in
Nominal Size

20

Tube OD

1-1/4 in

Thread Size

1 5/8-12

Gauge Port Type

ORB

Port Size

7/16-20

Pressure Rating

3000 PSI (207 Bar)
