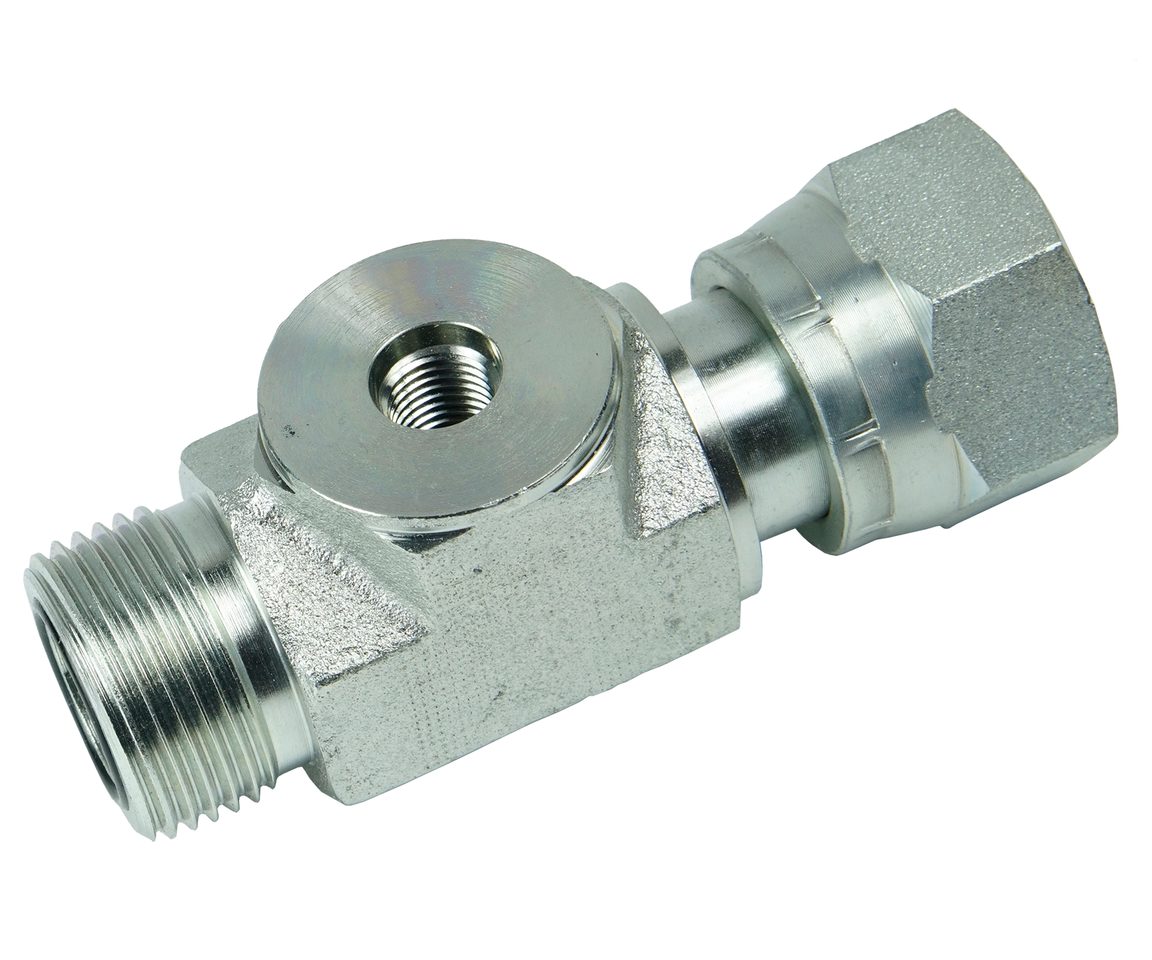

Male ORFS x Female ORFS Gauge Port Adapter with 7/16″ ORB Gauge Port, #12 (3/4″)

$26.19

Male ORFS x female swivel ORFS gauge port adapter.

Specifications:

  • Size: #12 (1 3/16-12″)
  • Gauge Port: 7/16″ SAE
  • Pressure: 6,000 PSI (414 bar)
  • 4:1 safety factor

Note: Fittings may differ from picture

SKU: HC-FFFM-12-4 Category:
Print Friendly, PDF & Email

Additional information

Weight 1.15 lbs
Dimensions 3.5 × 1.5 × 1.5 in
Nominal Size

12

Tube OD

3/4 in

Thread Size

1 3/16-12

Gauge Port Type

ORB

Port Size

7/16-20

Pressure Rating

6000 PSI (414 Bar)
