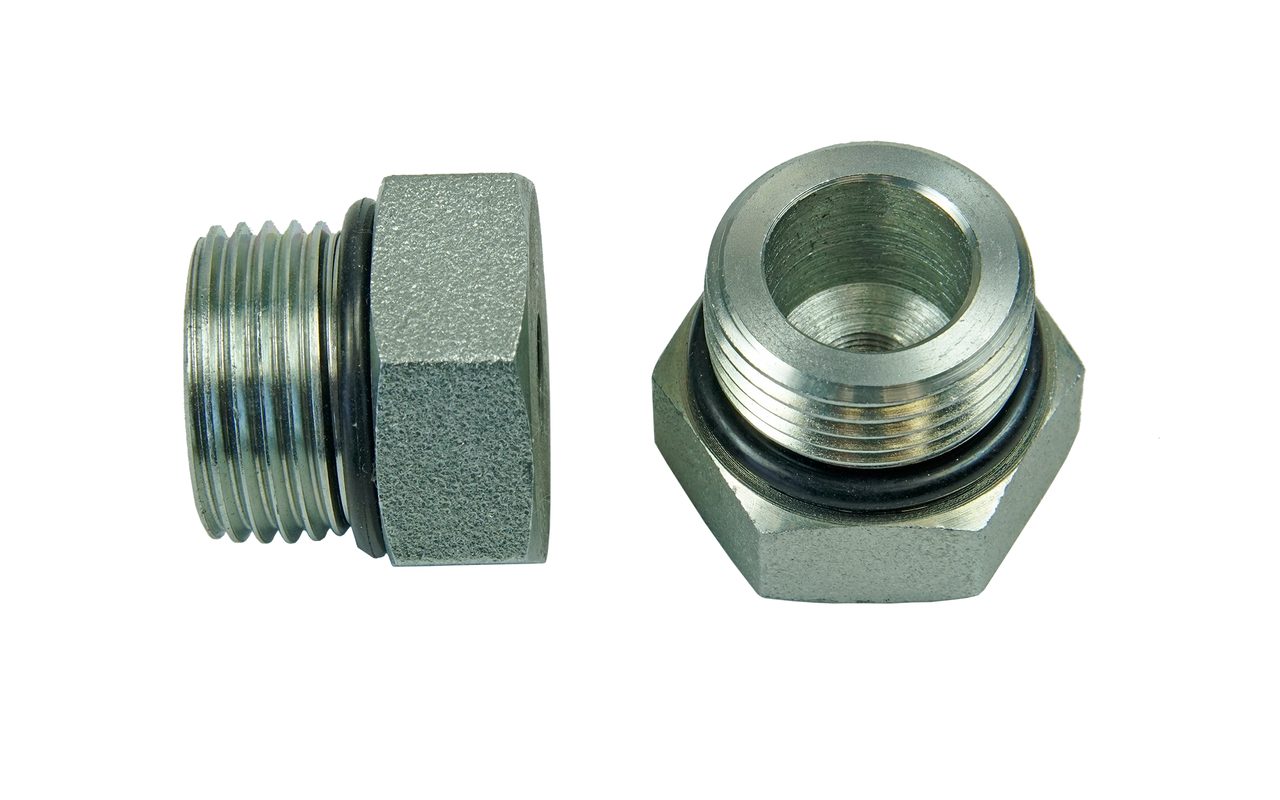

Home » Products » Gauge Port Adapters » ORB Male Plug with Gauge PortsORB Male Plug with Gauge Ports$3.38 – $56.00 Working Pressure: Up to 10,000 PSI (690 bar) (depending on tube and fitting size) 4:1 safety factor Fittings may differ from picture Category: Gauge Port Adapters Add to Cart Add to Quote Product already in the list. Product in Quote List.<br>(click to view) Product Nominal Size Thread Size Port Size Gauge Port Type Pressure Rating Price ORB Male Plug with Gauge Port, #4 (1/4″) HC-OMP-4 04 1/4 in 1/8 in NPT 12,000 PSI (827 Bar) $3.38 - + ORB Male Plug with Gauge Port, #6 (3/8″) HC-OMP-6 06 3/8 in 1/8 in NPT 10,000 PSI (690 Bar) $12.96 - + ORB Male Plug with Gauge Port, #8 (1/2″) HC-OMP-8 8 1/2 in 1/8 in NPT 10,000 PSI (690 Bar) $11.50 - + ORB Male Plug with Gauge Port, #10 (5/8″) HC-OMP-10 10 5/8 in 1/8 in NPT 5,000 PSI (345 Bar) $10.35 - + ORB Male Plug with Gauge Port, #12 (3/4″) HC-OMP-12 12 3/4 in 1/8 in NPT 7,500 PSI (517 Bar) $33.50 - + ORB Male Plug with Gauge Port, #16 (1″) HC-OMP-16 16 1 in 1/8 in NPT 6,500 PSI (448 Bar) $24.65 - + ORB Male Plug with Gauge Port, #20 (1 1/4″) HC-OMP-20 20 1-1/4 in 1/8 in NPT 5,000 PSI (345 Bar) $27.95 - + ORB Male Plug with Gauge Port, # (1 1/2″) HC-OMP-24 24 1-1/2 in 1/8 in NPT 3,000 PSI (207 Bar) $56.00 - +
ORB Male Plug with Gauge Port, #4 (1/4″) HC-OMP-4 04 1/4 in 1/8 in NPT 12,000 PSI (827 Bar) $3.38 - +
ORB Male Plug with Gauge Port, #6 (3/8″) HC-OMP-6 06 3/8 in 1/8 in NPT 10,000 PSI (690 Bar) $12.96 - +
ORB Male Plug with Gauge Port, #8 (1/2″) HC-OMP-8 8 1/2 in 1/8 in NPT 10,000 PSI (690 Bar) $11.50 - +
ORB Male Plug with Gauge Port, #10 (5/8″) HC-OMP-10 10 5/8 in 1/8 in NPT 5,000 PSI (345 Bar) $10.35 - +
ORB Male Plug with Gauge Port, #12 (3/4″) HC-OMP-12 12 3/4 in 1/8 in NPT 7,500 PSI (517 Bar) $33.50 - +
ORB Male Plug with Gauge Port, #20 (1 1/4″) HC-OMP-20 20 1-1/4 in 1/8 in NPT 5,000 PSI (345 Bar) $27.95 - +
ORB Male Plug with Gauge Port, # (1 1/2″) HC-OMP-24 24 1-1/2 in 1/8 in NPT 3,000 PSI (207 Bar) $56.00 - +
