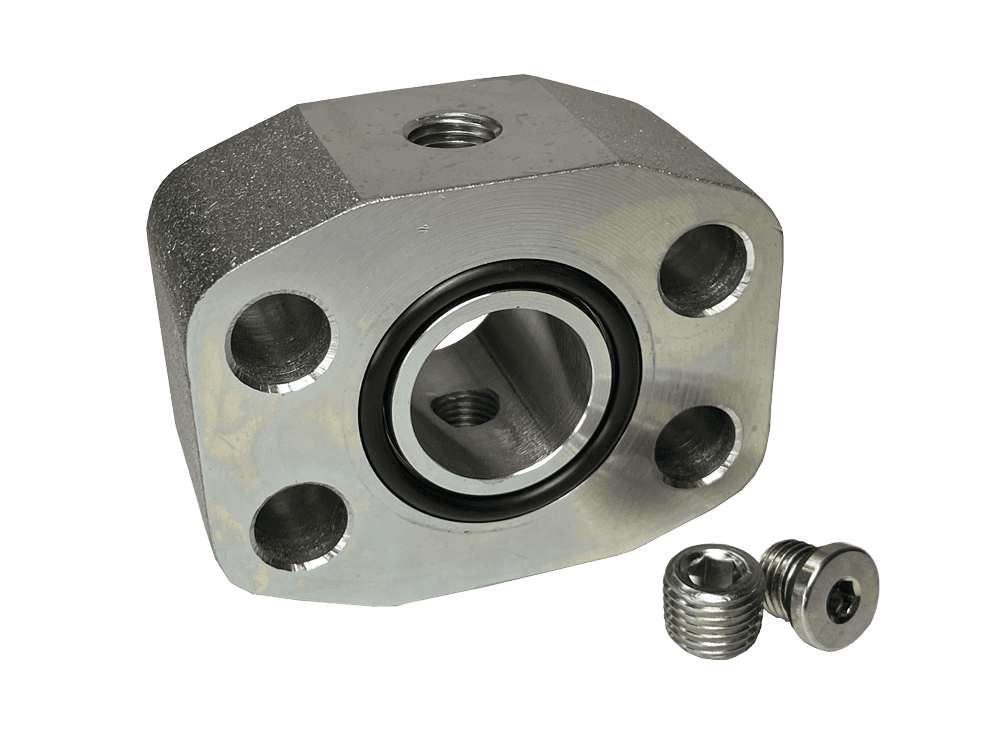

Code 62 Test Adapter with Gauge Port, #12 (3/4″)

$79.65

The gauge port on the Code 62 flange adapter allows for the connection of a pressure gauge, which can be used to monitor the pressure in the hydraulic system. This is important for ensuring that the system is operating within safe limits and can help to identify potential problems before they become more serious.

The Code 62 flange adapter is typically made from high-quality materials such as stainless steel or carbon steel, which provides excellent durability and resistance to corrosion. The gauge port is usually located on the side of the flange adapter and may be threaded or designed to accept a quick-connect fitting.

Overall, the Code 62 flange adapter with gauge port is an important component in many hydraulic systems, providing a reliable and convenient way to connect components and monitor system pressure.

Specifications:

  • Size: #12 (3/4″)
  • Gauge Port: 1/4″ NPT and 7/16″ ORB (SAE)
  • Includes: Pipe and ORB plug and O-Ring
  • Pressure: 6000 PSI (414 bar)
  • Conformance: SAE Code 62
SKU: HC-GPA62-12 Category:
Print Friendly, PDF & Email

Additional information

Weight 1.7 lbs
Dimensions 2.94 × 1.25 × 2.19 in
Nominal Size

12

Port Size

1/4 in

Gauge Port Type

NPT

Pressure Rating

6000 PSI (414 Bar)
