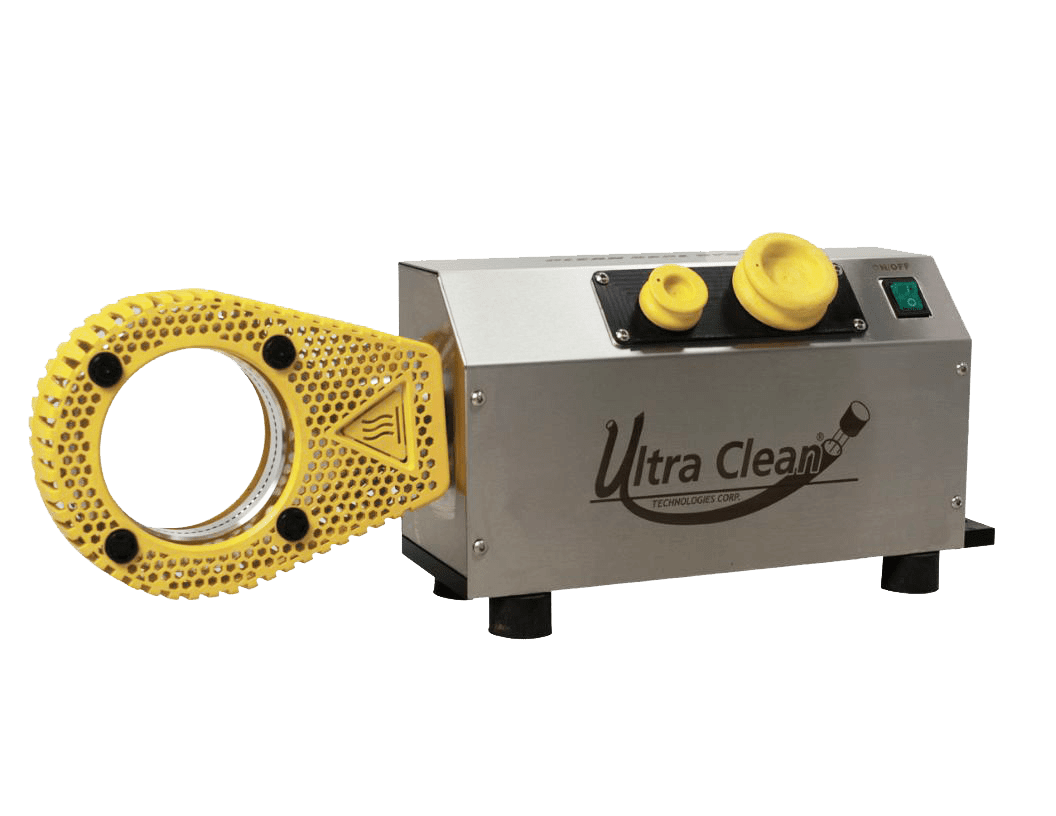

Clean Seal System – Bench Top Heat Shrink Machine


The Clean Seal System utilizes heat shrink technology to encapsulate the end of a hose or tube assembly with a Clean Seal Capsule. This eliminates possible re-contamination that is problematic with traditional capping and plugging methods.

Re-contamination occurs when ill-fitting caps and plugs are forced onto assemblies, causing plastic particles to shear off into the hose or tube. The Clean Seal System leaves your assemblies 100% contamination-free and provides an easier, less costly, and more effective solution than traditional capping methods. You’ll never have to deal with an excessive cap and plug-inventory again!

Features and Benefits:

  • Even heat distribution for a perfect capsule shrink-fit every time
  • Accepts Clean Seal Capsules from 3/4″ I.D. (20mm) through 3″ I.D. (80mm)
  • Works with fitting hex sizes from 12mm (½”) through 78mm (3”)
  • Using Clean Seal Capsules helps protect fitting threads and seals from damage

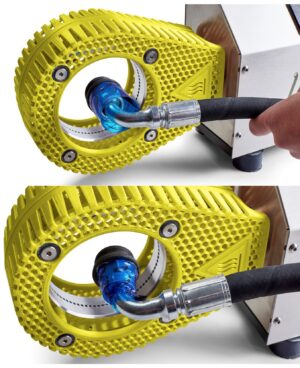

  • The operator can use both hands to push the hose assembly into Shrink Tunnel
  • Small and Large Magnetic Pucks hold the capsules against the fitting end for secure application
  • Oversized Air knife Diffuser opening allows multiple assembly ends at once
  • The heating unit is thermocouple protected against overheating
  • Brushless DC blower motor for trouble-free operation
  • Locking 3-wire grounding power main plug NEMA L6-15 for safe 230VAC connection
  • Greenlighted Power On/Off rocker switch lets you know when the Power is on
  • The system is 100% duty cycle rated for 24/7 continuous operation
  • Cool Air In the Vent helps keep heating air clean
  • Operates on 230v single-phase AC power at 50/60Hz and draws <10 amps

Technical Data:

  • Power Consumption: 3400 W
  • Voltage: 230V for 50AC/60Hz
  • Heater Temperature: 450°F (232°C)
  • Duty Cycle: 100%
  • Air Flow (at 20°C): 350 LPM (12 CFM)
  • Noise Emission: <65 LpA (dB)
  • Conformity: CE

Note: This product is in conformity with standards of low voltage in accordance with the regulations 73/23/EEC, 89/336/EEC

SKU: HC-CSS-230V-AK Category:
Print Friendly, PDF & Email

Additional information

Weight 31 lbs
Dimensions 23 × 13.75 × 10.5 in
